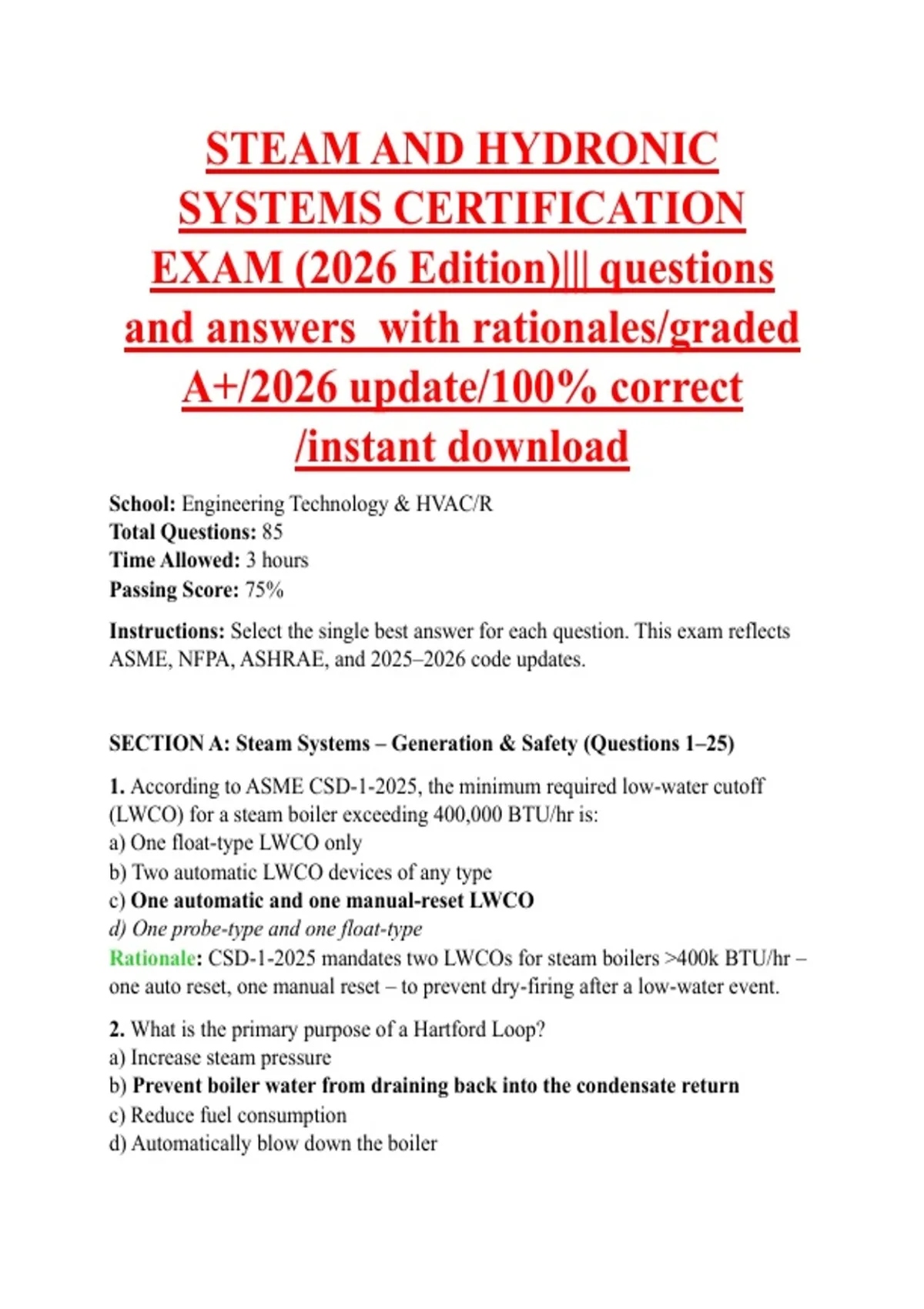

STEAM AND HYDRONIC
SYSTEMS CERTIFICATION
EXAM (2026 Edition)||| questions
and answers with rationales/graded
A+/2026 update/100% correct
/instant download
School: Engineering Technology & HVAC/R
Total Questions: 85
Time Allowed: 3 hours
Passing Score: 75%
Instructions: Select the single best answer for each question. This exam reflects
ASME, NFPA, ASHRAE, and 2025–2026 code updates.
SECTION A: Steam Systems – Generation & Safety (Questions 1–25)
1. According to ASME CSD-1-2025, the minimum required low-water cutoff
(LWCO) for a steam boiler exceeding 400,000 BTU/hr is:
a) One float-type LWCO only
b) Two automatic LWCO devices of any type
c) One automatic and one manual-reset LWCO
d) One probe-type and one float-type
Rationale: CSD-1-2025 mandates two LWCOs for steam boilers >400k BTU/hr –
one auto reset, one manual reset – to prevent dry-firing after a low-water event.
2. What is the primary purpose of a Hartford Loop?
a) Increase steam pressure
b) Prevent boiler water from draining back into the condensate return
c) Reduce fuel consumption
d) Automatically blow down the boiler
,Rationale: The Hartford Loop prevents the boiler from emptying through the
return line if a leak occurs in the return piping, maintaining water level.
3. Which device automatically releases non-condensable gases from a steam
system during startup?
a) Steam trap (thermostatic)
b) Air vent
c) Vacuum breaker
d) Check valve
Rationale: Air vents (float & thermostatic or F&T traps) allow air to escape; pure
steam traps are for condensate removal after air is purged.
4. A thermostatic steam trap fails open. The immediate symptom is:
a) No heat to radiators
b) Live steam blowing through the return line
c) Water hammer in supply main
d) Boiler priming
Rationale: Thermostatic trap fails open → steam passes into condensate return,
causing flash steam, noise, energy loss.
5. The maximum recommended velocity for dry saturated steam in a 4-inch
schedule 40 steel pipe (low pressure) is:
a) 4,000 ft/min
b) 8,000 ft/min
c) 12,000 ft/min
d) 15,000 ft/min
Rationale: For LP steam (<15 psi), 6,000–8,000 ft/min avoids erosion, noise, and
pressure drop. 8k is safe max per 2026 ASHRAE.
6. What is boiler “priming”?
a) Scale formation on tubes
b) Carryover of liquid water with steam
c) Excessive CO in flue gas
d) Low pH in condensate
Rationale: Priming is sudden violent boiling that carries water droplets into the
steam header, damaging valves/turbines.
7. A vacuum breaker on a steam coil is required to:
a) Increase steam temperature
b) Prevent coil collapse when steam condenses
, c) Reduce back pressure
d) Bypass the trap
Rationale: When steam condenses, pressure drops below atmospheric; vacuum
breaker admits air to avoid damaging suction.
8. According to the 2026 ASME Boiler and Pressure Vessel Code, the minimum
safety valve relieving capacity for a steam boiler must be:
a) 50% of boiler heating surface
b) Equal to the maximum fuel input
c) Equal to or greater than the maximum steaming capacity
d) 1.5x the design pressure
Rationale: Safety valve capacity must ≥ boiler’s maximum steam output (lbs/hr)
to prevent pressure exceeding MAWP.
9. Which water condition causes “foaming” in a steam boiler?
a) High silica
b) High total dissolved solids (TDS) and alkalinity
c) Low pH
d) Dissolved oxygen
Rationale: High TDS + alkalinity reduces surface tension, forming stable foam
that carries water into steam lines.
10. A steam trap that uses a bimetallic element to open/close is classified as:
a) Mechanical
b) Thermostatic (bimetal)
c) Thermodynamic
d) Inverted bucket
Rationale: Bimetal traps are thermostatic – temperature difference causes bending
to open/close valve.
11. The purpose of a drip leg (sediment pocket) ahead of a steam trap is:
a) Collect oil and dirt
b) Provide water seal to trap
c) Prevent dirt from fouling the trap seat
d) Increase back pressure
Rationale: Drip leg collects pipe scale, weld slag, etc. before entering trap,
extending trap life.
12. In a high-pressure steam boiler (150 psig), the recommended blowdown
frequency for surface blowdown is:
