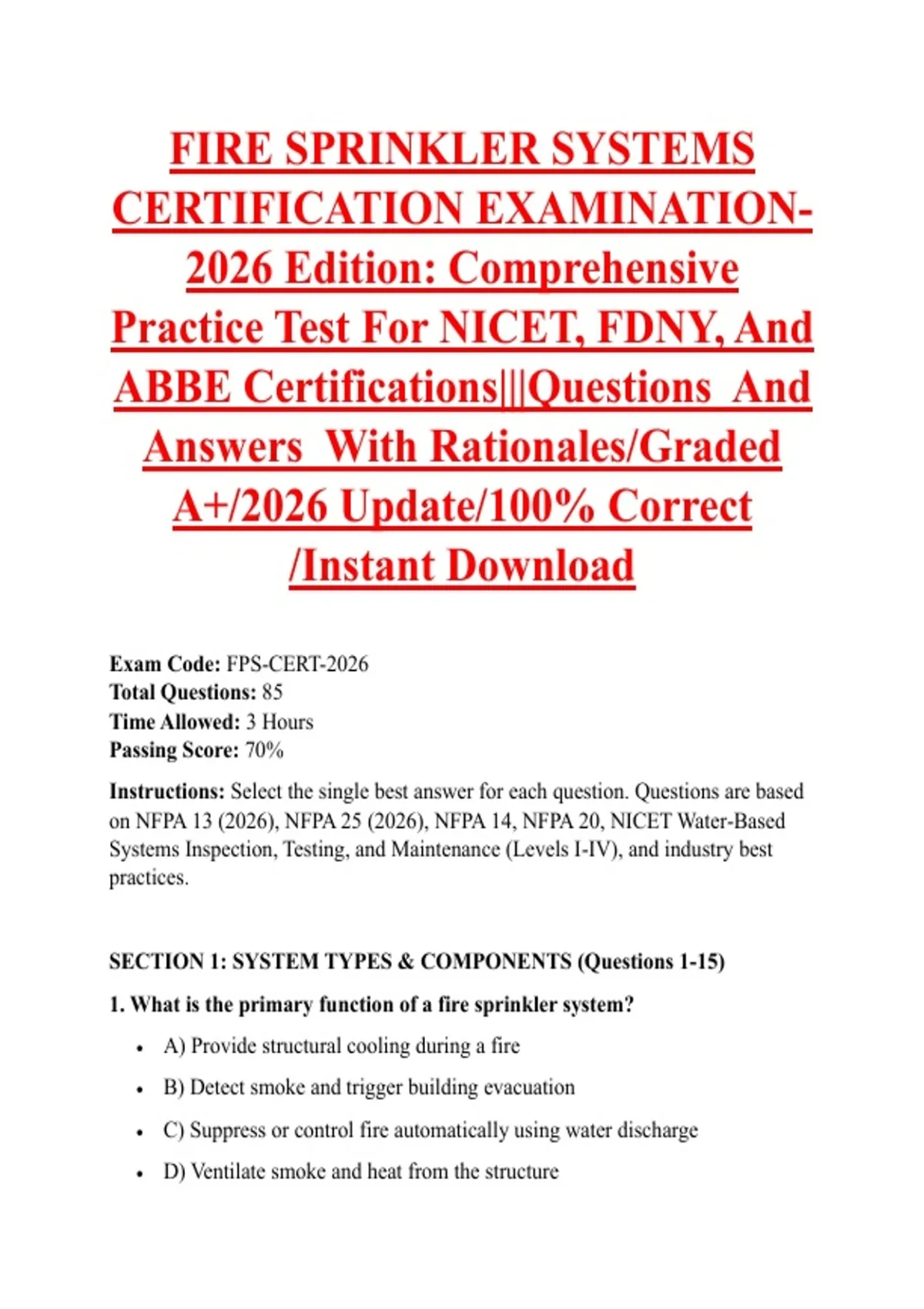

FIRE SPRINKLER SYSTEMS
CERTIFICATION EXAMINATION-
2026 Edition: Comprehensive
Practice Test For NICET, FDNY, And
ABBE Certifications|||Questions And
Answers With Rationales/Graded
A+/2026 Update/100% Correct
/Instant Download
Exam Code: FPS-CERT-2026
Total Questions: 85
Time Allowed: 3 Hours
Passing Score: 70%
Instructions: Select the single best answer for each question. Questions are based
on NFPA 13 (2026), NFPA 25 (2026), NFPA 14, NFPA 20, NICET Water-Based
Systems Inspection, Testing, and Maintenance (Levels I-IV), and industry best
practices.
SECTION 1: SYSTEM TYPES & COMPONENTS (Questions 1-15)
1. What is the primary function of a fire sprinkler system?
• A) Provide structural cooling during a fire
• B) Detect smoke and trigger building evacuation
• C) Suppress or control fire automatically using water discharge
• D) Ventilate smoke and heat from the structure
,Correct Answer: C
Rationale: The main function of a sprinkler system is to automatically control or
suppress fire using water discharge. Detection is a secondary function, and
structural cooling is not the primary purpose .
2. Which type of sprinkler system contains water in the piping at all times and
is best suited for heated environments?
• A) Dry pipe system
• B) Preaction system
• C) Deluge system
• D) Wet pipe system
Correct Answer: D
Rationale: Wet pipe systems are always filled with pressurized water and are the
most common type for heated buildings where freezing is not a concern. They offer
simplicity and reliability .
3. According to NFPA 13 (2026 ed.), a sprinkler system in a refrigerated
warehouse where piping is subject to freezing must use:
• A) Wet pipe system only
• B) Dry pipe or preaction system
• C) Deluge system only
• D) Foam-water system
Correct Answer: B
*Rationale: NFPA 13 (2026) Section 7.2 requires dry pipe or preaction systems
where piping is subject to freezing. Deluge systems are for high-hazard special
occupancies, not general cold storage .*
4. A double-interlock preaction system releases water into piping only upon:
• A) Smoke detection alone
• B) Heat detection AND sprinkler activation
, • C) Manual pull station activation only
• D) Loss of air pressure in the system
Correct Answer: B
Rationale: Double-interlock systems require both a detection device activation
AND a sprinkler head fusing before water enters the piping. This provides
maximum protection against accidental discharge in sensitive areas like data
centers .
5. Which system uses open sprinkler heads that all discharge water
simultaneously when a separate detection system activates?
• A) Wet pipe system
• B) Dry pipe system
• C) Preaction system
• D) Deluge system
Correct Answer: D
Rationale: Deluge systems have open sprinkler heads (no fusible elements) and
discharge water from all heads simultaneously when a fire detection system
activates the deluge valve. These are used in high-hazard areas requiring rapid
water application .
6. An ESFR sprinkler system is specifically designed to:
• A) Control fire growth only, not extinguish
• B) Suppress fire using high-density discharge in storage applications
• C) Operate only with foam additives for flammable liquids
• D) Protect only combustible storage less than 10 feet high
Correct Answer: B
Rationale: ESFR (Early Suppression Fast Response) sprinklers are designed for
fire suppression (not just control) in high-pile storage applications. They discharge
high-density water to suppress fires before they grow large .
, 7. Which component opens automatically when exposed to heat in a sprinkler
system?
• A) Alarm check valve
• B) Pressure gauge
• C) Sprinkler head fusible element or glass bulb
• D) Control valve
Correct Answer: C
Rationale: Heat causes the fusible link to melt or the glass bulb to break,
activating the sprinkler. This is the fundamental operating principle of automatic
sprinkler systems .
8. A quick-response sprinkler must have a Response Time Index (RTI) of:
• A) Less than 30 (m·s)^(1/2)
• B) 50 or less (m·s)^(1/2)
• C) 80 or less (m·s)^(1/2)
• D) 100 or less (m·s)^(1/2)
Correct Answer: B
*Rationale: NFPA 13 (2026) Section 3.6.1 defines quick-response sprinklers as
having RTI ≤ 50. Standard response sprinklers have RTI between 80 and 350 .*
9. A sprinkler head with a temperature rating of 200°F (93°C) would be
classified as:
• A) Ordinary
• B) Intermediate
• C) High
• D) Extra High
