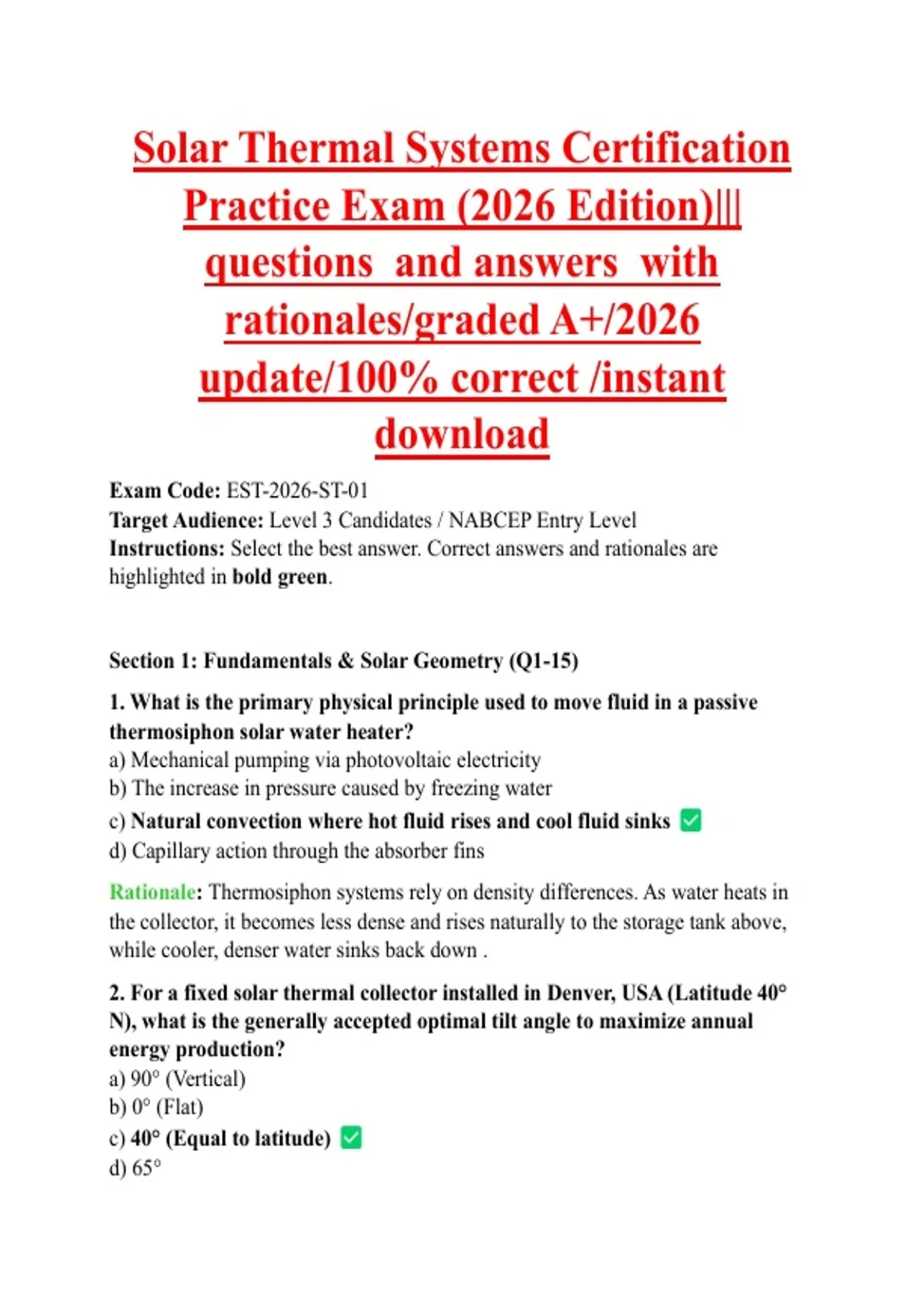

Solar Thermal Systems Certification
Practice Exam (2026 Edition)|||
questions and answers with
rationales/graded A+/2026
update/100% correct /instant
download
Exam Code: EST-2026-ST-01
Target Audience: Level 3 Candidates / NABCEP Entry Level
Instructions: Select the best answer. Correct answers and rationales are
highlighted in bold green.
Section 1: Fundamentals & Solar Geometry (Q1-15)
1. What is the primary physical principle used to move fluid in a passive
thermosiphon solar water heater?
a) Mechanical pumping via photovoltaic electricity
b) The increase in pressure caused by freezing water
c) Natural convection where hot fluid rises and cool fluid sinks
d) Capillary action through the absorber fins
Rationale: Thermosiphon systems rely on density differences. As water heats in
the collector, it becomes less dense and rises naturally to the storage tank above,
while cooler, denser water sinks back down .
2. For a fixed solar thermal collector installed in Denver, USA (Latitude 40°
N), what is the generally accepted optimal tilt angle to maximize annual
energy production?
a) 90° (Vertical)
b) 0° (Flat)
c) 40° (Equal to latitude)
d) 65°
,Rationale: To maximize annual solar collection, the tilt angle should approximate
the site's latitude. This optimizes the angle of incidence of sunlight throughout the
year .
3. Why is a "south-facing" orientation critical for solar thermal collectors in
the Northern Hemisphere?
a) To avoid overheating during summer afternoons
b) To capture the maximum amount of solar irradiance throughout the
day
c) To prevent wind loading on the mounting structure
d) To reduce the amount of UV degradation on the glazing
Rationale: The sun travels across the southern sky in the Northern Hemisphere.
Facing south ensures the collector aperture receives direct sunlight for the longest
duration .
4. What is "Solar Irradiance"?
a) The temperature of the absorber plate
b) The reflection of light off the glass
c) The power per unit area received from the sun (W/m²)
d) The efficiency of the heat exchanger
Rationale: This is the fundamental measurement of solar resource. Most collector
performance curves are rated at 1000 W/m² (peak sun) .
5. Which component is legally required in almost all modern pressurized solar
thermal systems to prevent water from expanding back into the mains supply?
a) Expansion Vessel / Tank
b) Flow meter
c) Three-way mixing valve
d) Vacuum breaker
Rationale: When the heat transfer fluid (water/glycol) heats up, it expands. The
expansion vessel provides a compressible air cushion to absorb this volume
increase, preventing the pressure relief valve from opening unnecessarily .
6. A "Direct" (Open-Loop) solar thermal system is ONLY suitable if:
a) The collector is made of aluminum
b) The water supply has low mineral content and the climate never freezes
, c) The house has a combi-boiler
d) The roof is flat
Rationale: Direct systems circulate potable water through the collectors. They
cannot be used in freezing climates without bursting, and hard water causes scaling
inside the collector risers .
7. What is the function of a "Differential Controller" in an active solar
thermal system?
a) It mixes hot and cold water to prevent scalding
b) It compares collector temperature (T1) and tank temperature (T2) to turn
the pump ON/OFF
c) It regulates the pressure of the mains water
d) It measures the flow rate of the glycol
Rationale: The controller turns the pump on only when the collector is hotter than
the storage tank (e.g., ΔT = 8-10°C) and off when they are close in temperature,
preventing the pump from running at night and actually cooling the tank .
8. A customer reports that their solar thermal system is whistling or banging
loudly in summer. The temperature gauge at the collector is pegged at 180°C
(356°F). What is happening?
a) The pump has failed electrically
b) The heat exchanger is leaking
c) The system is in "stagnation" (boiling inside the collectors)
d) The differential thermostat is stuck closed
Rationale: Stagnation occurs when the pump stops (power outage or satisfied
load) but the sun continues to heat the collectors. The fluid boils, turns to steam,
and can cause loud noises. Systems are designed with specific stagnation ratings
(ISO 9495) .
9. Which type of collector is generally considered the most efficient in cold,
cloudy, or windy climates due to its superior insulation properties?
a) Unglazed flat plate (pool heater)
b) Evacuated Tube Collector (ETC)
c) Parabolic Trough
d) Flat plate with Teflon glazing
