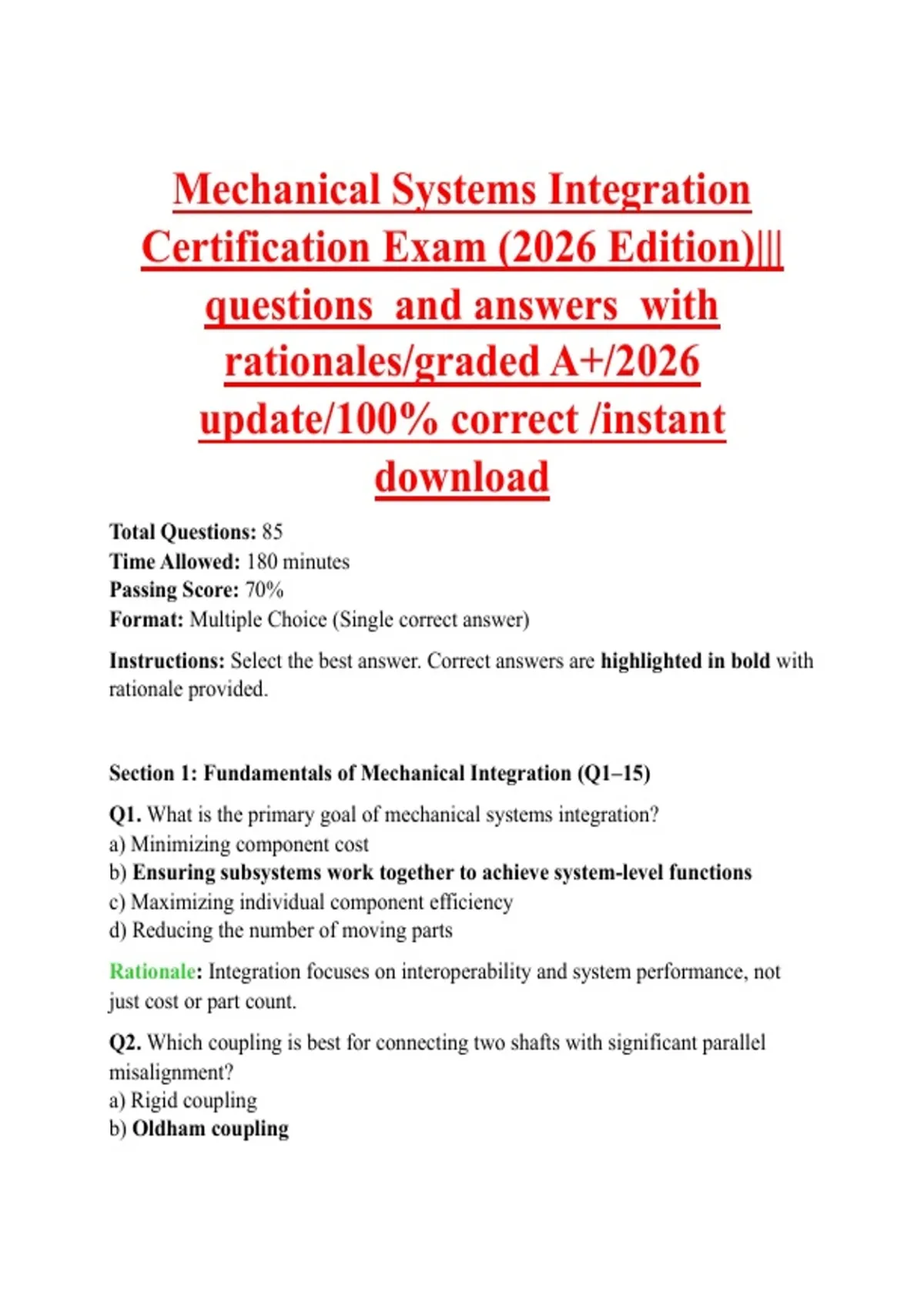

Mechanical Systems Integration
Certification Exam (2026 Edition)|||
questions and answers with
rationales/graded A+/2026
update/100% correct /instant
download
Total Questions: 85
Time Allowed: 180 minutes
Passing Score: 70%
Format: Multiple Choice (Single correct answer)
Instructions: Select the best answer. Correct answers are highlighted in bold with
rationale provided.
Section 1: Fundamentals of Mechanical Integration (Q1–15)
Q1. What is the primary goal of mechanical systems integration?
a) Minimizing component cost
b) Ensuring subsystems work together to achieve system-level functions
c) Maximizing individual component efficiency
d) Reducing the number of moving parts
Rationale: Integration focuses on interoperability and system performance, not
just cost or part count.
Q2. Which coupling is best for connecting two shafts with significant parallel
misalignment?
a) Rigid coupling
b) Oldham coupling
,c) Flange coupling
d) Sleeve coupling
Rationale: Oldham couplings accommodate parallel misalignment without high
radial loads.
Q3. In a mechatronic system, the “control system” integrates with mechanical parts
via:
a) Gears only
b) Sensors and actuators
c) Hydraulic lines
d) Structural welds
Rationale: Sensors (feedback) and actuators (action) bridge mechanical and
electronic domains.
Q4. A key challenge when integrating a pneumatic actuator with a digital
controller is:
a) High torque density
b) Signal latency and deadband compensation
c) Lack of standard fittings
d) Overheating of solenoids
Rationale: Pneumatics have inherent delays (compressibility, valve response)
needing compensation.
Q5. What does “backlash” in a gear train primarily affect during integration?
a) Efficiency
b) Positioning accuracy under load reversal
c) Wear rate
d) Lubrication interval
Rationale: Backlash causes lost motion when reversing direction, critical for
precision positioning.
Q6. Which standard is most relevant for mechanical interface dimensions in
industrial automation (as of 2026)?
a) ISO 9001
b) ISO 9409 (robot mounting flange)
c) ASME Y14.5
d) IEC 61131
, Rationale: ISO 9409 defines mechanical interfaces for end-effectors, widely
adopted in 2026.
Q7. Integrating a linear guide system with a belt drive requires attention to:
a) Electrical insulation
b) Parallelism and preload
c) Gear ratio
d) Encoder resolution
Rationale: Alignment of guides with drive affects friction, life, and motion
smoothness.
Q8. Which is a typical symptom of poor thermal integration (e.g., motor to load)?
a) Electrical noise
b) Excessive bearing growth causing preload loss
c) Hydraulic leakage
d) Software timeout
Rationale: Heat from motor can expand shaft, altering bearing fit and preload.
Q9. In a rotating machinery integration, a flexible coupling serves to:
a) Increase torque transmission
b) Isolate vibration and accommodate misalignment
c) Reduce speed
d) Act as a brake
Rationale: Flexibility decouples dynamics and protects connected components.
Q10. What is the purpose of a “wringing fit” in mechanical assembly?
a) Allow free rotation
b) Achieve high surface contact without clearance
c) Facilitate rapid disassembly
d) Reduce weight
Rationale: Wringing (slip fit with light interference) ensures alignment in
precision stacks.
Q11. Which fastener locking method is most reliable in high-vibration integration
(2026 recommendation)?
a) Split washer
b) Anaerobic adhesive + prevailing torque nut
