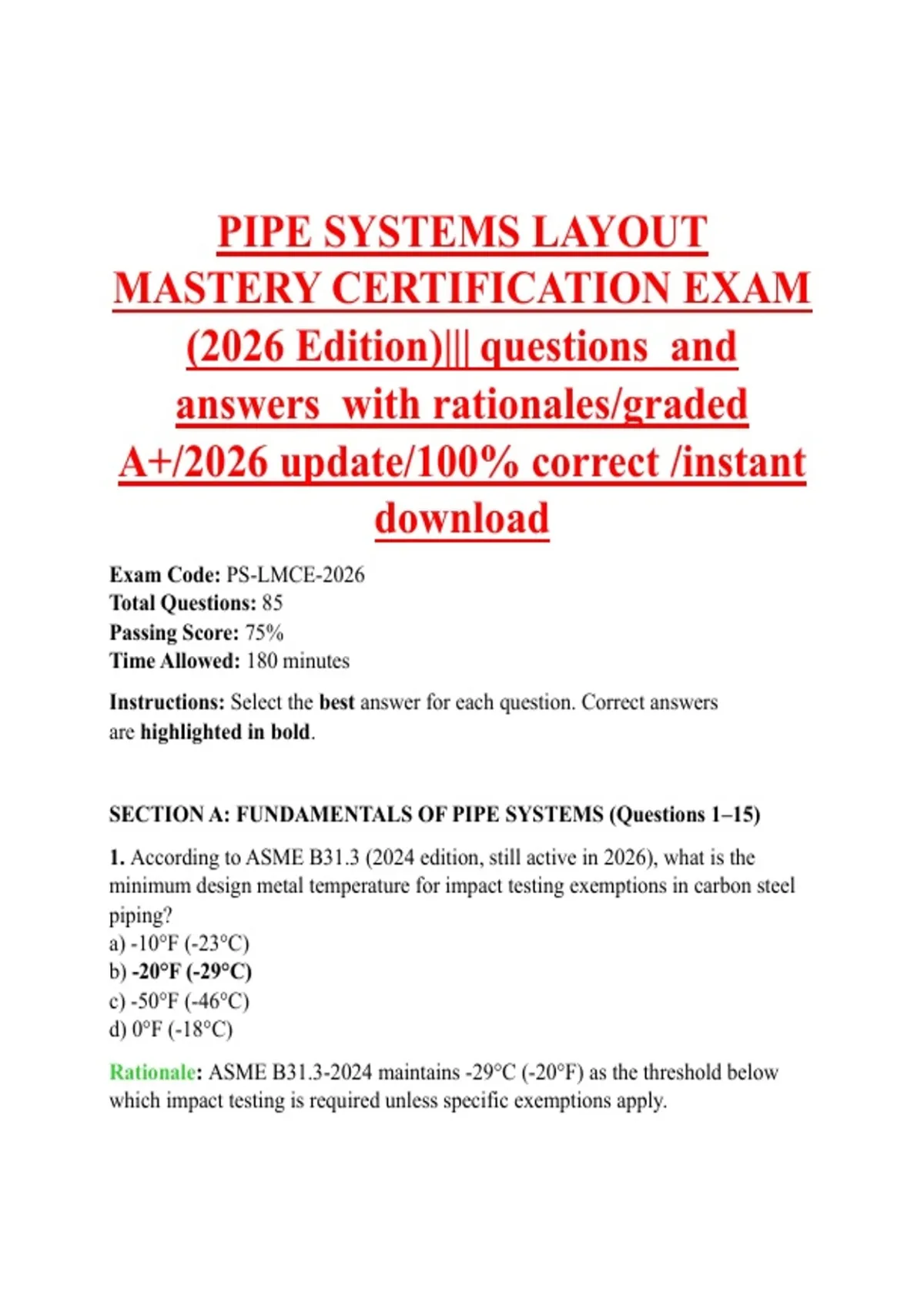

PIPE SYSTEMS LAYOUT
MASTERY CERTIFICATION EXAM
(2026 Edition)||| questions and
answers with rationales/graded
A+/2026 update/100% correct /instant
download
Exam Code: PS-LMCE-2026
Total Questions: 85
Passing Score: 75%
Time Allowed: 180 minutes
Instructions: Select the best answer for each question. Correct answers
are highlighted in bold.
SECTION A: FUNDAMENTALS OF PIPE SYSTEMS (Questions 1–15)
1. According to ASME B31.3 (2024 edition, still active in 2026), what is the
minimum design metal temperature for impact testing exemptions in carbon steel
piping?
a) -10°F (-23°C)
b) -20°F (-29°C)
c) -50°F (-46°C)
d) 0°F (-18°C)
Rationale: ASME B31.3-2024 maintains -29°C (-20°F) as the threshold below
which impact testing is required unless specific exemptions apply.
,2. Which piping component is used to allow thermal expansion movement in a
straight pipe run without introducing high stresses?
a) Expansion joint
b) Expansion loop
c) Flexible hose
d) Slip joint
Rationale: An expansion loop (U-bend) absorbs thermal expansion by elastic
bending, while expansion joints are more common in low-pressure systems.
3. The term “piping stagger” refers to:
a) Misalignment of bolt holes in flanges
b) Offsetting parallel pipe runs to allow valve access
c) Incorrect pipe schedule selection
d) Layering of insulation materials
Rationale: In layout, stagger means arranging pipes at different elevations or
horizontal offsets to prevent interference and allow maintenance access.
4. What is the recommended minimum spacing between centerlines of adjacent
uninsulated flanges (ANSI class 150, NPS 4) according to typical PIP standards?
a) 6 inches
b) 8 inches
c) 10 inches
d) 12 inches
Rationale: PIP PNVCC001 recommends flange bolt circle diameter + 1 to 2
inches clearance. For NPS 4, bolt circle ≈ 6"; min center-to-center ≈ 8".
5. Which material is most commonly specified for Class 1500 high-pressure steam
service in 2026?
a) ASTM A106 Gr B
b) ASTM A335 Gr P11 (1.25Cr-0.5Mo)
c) ASTM A312 TP304
d) HDPE 4710
, Rationale: A335 P11 provides creep resistance at high temperatures (up to 550°C)
and is standard for high-pressure steam.
6. In a pipe stress analysis, a “cold spring” is used to:
a) Increase thermal stress
b) Reduce operating stresses by preloading the pipe during installation
c) Compensate for pressure drop
d) Avoid using expansion joints
Rationale: Cold spring applies intentional displacement during assembly to offset
thermal expansion, lowering peak stresses at operating temperature.
7. The primary purpose of a steam trap in a condensate return line is:
a) Increase steam pressure
b) Remove condensate while retaining steam
c) Filter particulates
d) Reduce noise
Rationale: Steam traps automatically discharge condensate but prevent steam loss,
essential for energy efficiency.
8. What does “NPS” stand for in pipe sizing?
a) Nominal Pressure Standard
b) Nominal Pipe Size
c) National Pipe Straight
d) Non-Pressurized Service
Rationale: NPS is a dimensionless number (e.g., NPS 4) approximately related to
inside diameter for smaller sizes.
9. According to API 570 (2025 update), what is the maximum allowable corrosion
rate for carbon steel piping in hydrocarbon service with no inhibitor?
a) 0.1 mm/year
b) 0.4 mm/year
