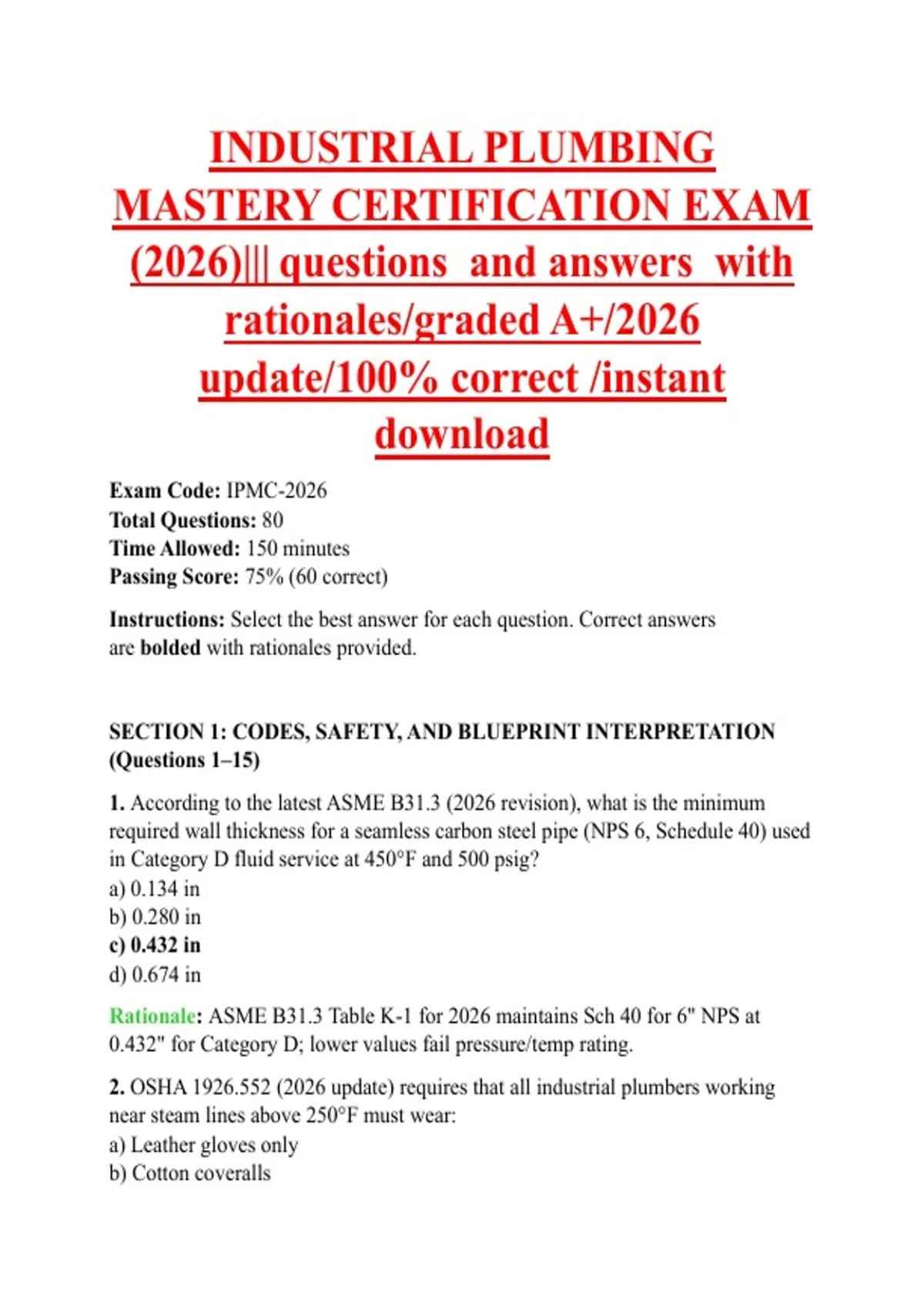

INDUSTRIAL PLUMBING
MASTERY CERTIFICATION EXAM
(2026)||| questions and answers with
rationales/graded A+/2026
update/100% correct /instant
download
Exam Code: IPMC-2026
Total Questions: 80
Time Allowed: 150 minutes
Passing Score: 75% (60 correct)
Instructions: Select the best answer for each question. Correct answers
are bolded with rationales provided.
SECTION 1: CODES, SAFETY, AND BLUEPRINT INTERPRETATION
(Questions 1–15)
1. According to the latest ASME B31.3 (2026 revision), what is the minimum
required wall thickness for a seamless carbon steel pipe (NPS 6, Schedule 40) used
in Category D fluid service at 450°F and 500 psig?
a) 0.134 in
b) 0.280 in
c) 0.432 in
d) 0.674 in
Rationale: ASME B31.3 Table K-1 for 2026 maintains Sch 40 for 6" NPS at
0.432" for Category D; lower values fail pressure/temp rating.
2. OSHA 1926.552 (2026 update) requires that all industrial plumbers working
near steam lines above 250°F must wear:
a) Leather gloves only
b) Cotton coveralls
,c) Thermal-resistant PPE with face shield
d) Rubber insulated boots
Rationale: New 2026 heat stress/thermal burn prevention mandate for high-temp
fluids.
3. On a P&ID (Process and Instrumentation Diagram), a symbol showing a circle
with a horizontal line and the letters "PT" indicates:
a) Pressure transmitter
b) Temperature gauge
c) Flow switch
d) Pressure relief valve
Rationale: ISA 5.1 standard: PT = Pressure Transmitter (electronic). PRV is
different symbol.
4. The maximum allowable non-metallic pipe length for an industrial compressed
air drop leg (2026 IPC) before requiring a drip leg is:
a) 10 ft
b) 20 ft
c) 30 ft
d) 50 ft
Rationale: 2026 IPC update: increased from 20 to 30 ft due to coalescing filter
efficiency gains.
5. Which color code per ANSI Z535.1 (2026) is now mandatory for industrial
ammonia refrigerant lines?
a) Yellow/Black diagonal
b) Safety Orange – solid
c) Green with white bands
d) Purple with gray stripes
Rationale: 2026 revision classifies ammonia as severe inhalation hazard, requiring
solid Safety Orange.
6. A locked-out gate valve on a 12" cooling water main must have a tag that
includes, per latest OSHA 1910.147:
a) Employee name only
b) Date of last inspection
, c) Reason for lockout and expected completion time
d) Valve manufacturer model number
Rationale: 2026 LOTO tag update mandates "purpose & duration" for industrial
maintenance.
7. In a hydraulic industrial plumbing system, a "Class 2500" flange rating (per
ASME B16.5) is suitable for what max pressure at 400°F?
a) 720 psig
b) 2,500 psig
c) 4,120 psig
d) 6,095 psig
Rationale: Class 2500 at 400°F > 4,100 psig (ASME B16.5-2025 tables; 2,500 is
nominal class, not working pressure).
8. The minimum recommended slope for a horizontal industrial chemical waste
drain (PVC-lined) handling 2% sulfuric acid is:
a) 1/8 in per ft
b) 1/4 in per ft
c) 1/2 in per ft
d) 0 in per ft (self-scouring design)
Rationale: Chemical waste requires 1/8" min per IPC; corrosive resistance
prevents steeper due to erosion risk.
9. A "dead-leg" in industrial ultrapure water (UPW) piping is defined as any
segment where flow velocity drops below:
a) 1.0 ft/s
b) 1.5 ft/s
c) 3.0 ft/s
d) 5.0 ft/s
Rationale: 2026 SEMI F57 standard: < 1.5 ft/s = dead leg (biofilm risk).
10. The 2026 ASME A13.1 standard now mandates that industrial firewater
underground lines be identified above ground with:
a) Red band every 50 ft
b) Orange markers with "FW" and reflective tape
c) Yellow stakes only
d) No marking required
