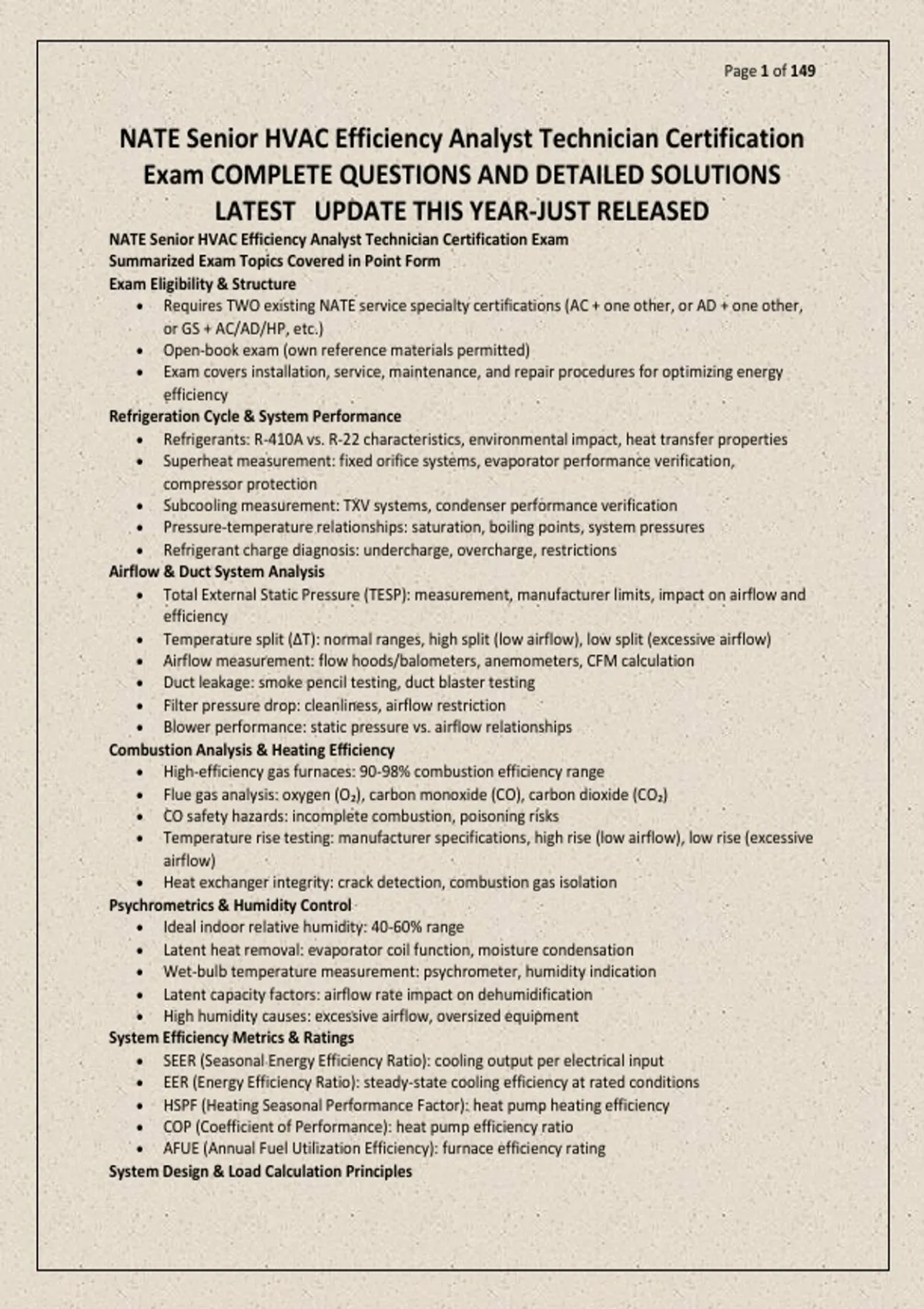

Page 1 of 149
NATE Senior HVAC Efficiency Analyst Technician Certification
Exam COMPLETE QUESTIONS AND DETAILED SOLUTIONS
LATEST UPDATE THIS YEAR-JUST RELEASED
NATE Senior HVAC Efficiency Analyst Technician Certification Exam
Summarized Exam Topics Covered in Point Form
Exam Eligibility & Structure
• Requires TWO existing NATE service specialty certifications (AC + one other, or AD + one other,
or GS + AC/AD/HP, etc.)
• Open-book exam (own reference materials permitted)
• Exam covers installation, service, maintenance, and repair procedures for optimizing energy
efficiency
Refrigeration Cycle & System Performance
• Refrigerants: R-410A vs. R-22 characteristics, environmental impact, heat transfer properties
• Superheat measurement: fixed orifice systems, evaporator performance verification,
compressor protection
• Subcooling measurement: TXV systems, condenser performance verification
• Pressure-temperature relationships: saturation, boiling points, system pressures
• Refrigerant charge diagnosis: undercharge, overcharge, restrictions
Airflow & Duct System Analysis
• Total External Static Pressure (TESP): measurement, manufacturer limits, impact on airflow and
efficiency
• Temperature split (ΔT): normal ranges, high split (low airflow), low split (excessive airflow)
• Airflow measurement: flow hoods/balometers, anemometers, CFM calculation
• Duct leakage: smoke pencil testing, duct blaster testing
• Filter pressure drop: cleanliness, airflow restriction
• Blower performance: static pressure vs. airflow relationships
Combustion Analysis & Heating Efficiency
• High-efficiency gas furnaces: 90-98% combustion efficiency range
• Flue gas analysis: oxygen (O₂), carbon monoxide (CO), carbon dioxide (CO₂)
• CO safety hazards: incomplete combustion, poisoning risks
• Temperature rise testing: manufacturer specifications, high rise (low airflow), low rise (excessive
airflow)
• Heat exchanger integrity: crack detection, combustion gas isolation
Psychrometrics & Humidity Control
• Ideal indoor relative humidity: 40-60% range
• Latent heat removal: evaporator coil function, moisture condensation
• Wet-bulb temperature measurement: psychrometer, humidity indication
• Latent capacity factors: airflow rate impact on dehumidification
• High humidity causes: excessive airflow, oversized equipment
System Efficiency Metrics & Ratings
• SEER (Seasonal Energy Efficiency Ratio): cooling output per electrical input
• EER (Energy Efficiency Ratio): steady-state cooling efficiency at rated conditions
• HSPF (Heating Seasonal Performance Factor): heat pump heating efficiency
• COP (Coefficient of Performance): heat pump efficiency ratio
• AFUE (Annual Fuel Utilization Efficiency): furnace efficiency rating
System Design & Load Calculation Principles
, Page 2 of 149
• Building envelope factors: orientation, insulation, windows, infiltration
• Internal loads: occupants, lighting, equipment (sensible and latent)
• Cooling load calculation: Manual J principles, heat gain from all sources
• Heating load calculation: heat loss through envelope
• Equipment sizing consequences: oversized equipment (short cycling, humidity issues),
undersized equipment (insufficient capacity)
Ventilation & Indoor Air Quality
• ASHRAE Standard 62.1: minimum outdoor air ventilation requirements
• Economizers: free cooling using outdoor air when conditions permit
• Ventilation verification: outdoor air intake volume measurement
• Return air design: airflow balance, pressure relationships
Heat Pump & Advanced System Technologies
• Reversing valve function: refrigerant flow direction control for heating/cooling switching
• Dual-fuel systems: electric heat pump with gas furnace backup
• VRF (Variable Refrigerant Flow): simultaneous heating/cooling, capacity modulation
• Low ambient performance: pressure-enthalpy considerations
Energy Auditing & Efficiency Analysis
• Primary goal: reduce energy consumption while maintaining comfort
• Energy modeling: predicting system performance and energy use
• Commissioning: verifying system performance meets design specifications
• Load diversity: accounting for non-simultaneous peak loads
• Zoning benefits: improved comfort and efficiency
• Variable speed drives (VSDs): matching motor output to system demand
Safety & Regulatory Compliance
• EPA Section 608: refrigerant recovery, recycling, disposal regulations
• OSHA requirements: lockout/tagout, confined spaces, electrical safety
• Combustion safety: CO detection, flame sensors, draft verification
• Electrical hazards: bonding/grounding, arc flash prevention
• Pressure relief valves: preventing excessive pressure buildup
• Flue gas venting: proper exhaust to prevent CO entry
• Confined space safety: ventilation, gas monitoring
Question 1
Which refrigerant is commonly used in high-efficiency residential air conditioning systems manufactured
after 2015?
A) R-22
B) R-410A
C) R-12
, Page 3 of 149
D) R-134a
Answer: B
Rationale: R-410A is the industry standard for modern high-efficiency residential AC systems due to its
favorable environmental properties (zero ozone depletion potential) and improved heat transfer
characteristics compared to R-22 .
Question 2
What is the primary purpose of a heat exchanger in a gas furnace?
A) To compress refrigerant
B) To circulate air through the duct system
C) To transfer heat from combustion gases to the air while isolating combustion products
D) To filter particles from returning air
Answer: C
Rationale: The heat exchanger transfers heat from the combustion process to the circulating air without
allowing combustion gases to mix with the indoor air supply .
Question 3
In a split air conditioning system, which factor has the greatest impact on overall system efficiency?
, Page 4 of 149
A) Duct insulation color
B) Thermostat brand and type
C) Proper refrigerant charge
D) Outdoor unit paint color
Answer: C
Rationale: Correct refrigerant charge is critical for achieving optimal heat transfer and efficiency.
Overcharge or undercharge reduces system performance and can damage the compressor .
Question 4
The primary purpose of measuring superheat in an HVAC system is to:
A) Determine airflow velocity across the evaporator
B) Verify proper refrigerant charge and evaporator performance
C) Measure indoor wet-bulb temperature
D) Check duct insulation effectiveness
Answer: B
Rationale: Superheat measurement ensures the refrigerant is fully vaporized at the evaporator outlet,
confirming proper charge and protecting the compressor from liquid slugging .
