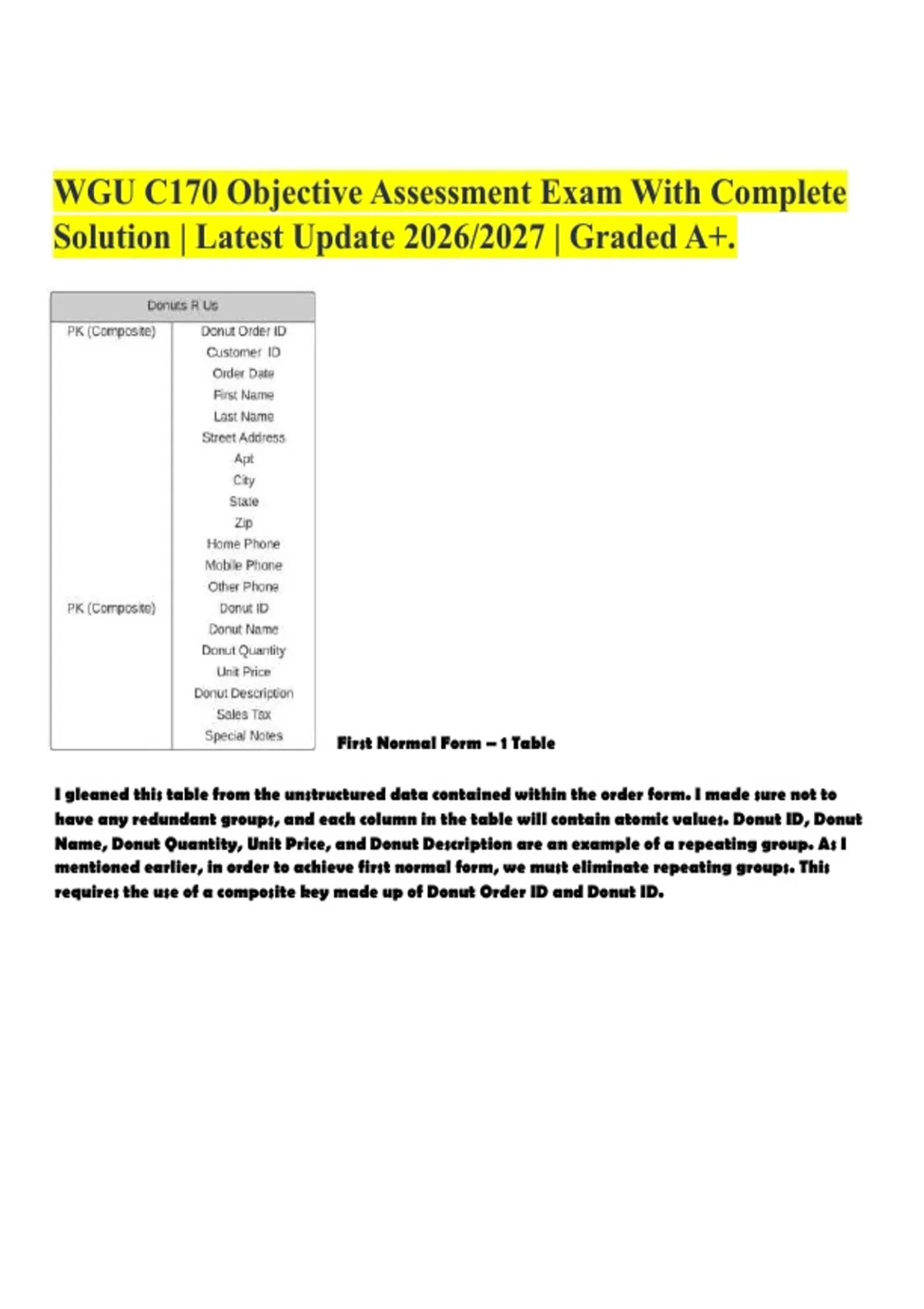

WGU C170 Objective Assessment Exam With Complete
Solution | Latest Update 2026/2027 | Graded A+.
First Normal Form – 1 Table
I gleaned this table from the unstructured data contained within the order form. I made sure not to
have any redundant groups, and each column in the table will contain atomic values. Donut ID, Donut
Name, Donut Quantity, Unit Price, and Donut Description are an example of a repeating group. As I
mentioned earlier, in order to achieve first normal form, we must eliminate repeating groups. This
requires the use of a composite key made up of Donut Order ID and Donut ID.
,Second Normal Form – 3 Tables
In order to achieve second normal form we need to split the first table into three separate tables so
that all non-key attributes are functionally dependent on the entire primary key. I took the
attributes that are partially dependent on the primary key, and placed them into separate relations.
Donut Name, Donut Description, and Unit Price depend only on Donut Order ID. Donut Quantity and
Item Total depend on both Donut Order ID and Donut ID. Third Normal Form – 4 Tables
In order to achieve third normal form we need to eliminate any transitive dependency, meaning an
attribute depends on another attribute that is not the primary key. For example, looking at our
second normal form tables, Customer Last Name is dependent on Donut Order ID. (Each Donut Order
ID has only one Customer Last Name value associated with it) To transform into third normal form we
simply move any transitively dependent attributes to their own relation where they depend on only
the primary key.
, Entity Relationship Diagram using tables from A1C:
Both the Customer and Donut entities have a single primary key and related attributes that describe
them. The orderDetails table is an associative entity that shows the interactive relationship between
the Donut, and donutOrder entities. The DonutOrder entity has a primary key of DonutOrder_ID, and
a foreign key consisting of Customer_ID to record the order date, notes, and totals that describe the
interaction of the
Customer and Donut purchase with corresponding foreign keys. The cardinality from customer to
donutOrder is 1-to-many as a customer can place multiple orders, while the cardinality in the other
direction will be manyto-1 because a donutOrder will have at most one customer per order. The donut
to orderDetails cardinality is 1-to-many as one donut can fill multiple orderDetail records, while in the
other direction, an orderDetails record will have 1 donut per record, representing a many-to-1
relationship. The donutOrder to orderDetails cardinality is 1-to-many as one donutORder may
reference multiple orderDetail records, and in the other direction, one orderDetails record will only
pertain to one donutOrder. The orderDetails table has a composite primary and composite foreign key
key consisting of donutOrder_ID and Donut_ID which shows the intersection data of the Donut and
donutOrder tables.
Solution | Latest Update 2026/2027 | Graded A+.
First Normal Form – 1 Table
I gleaned this table from the unstructured data contained within the order form. I made sure not to
have any redundant groups, and each column in the table will contain atomic values. Donut ID, Donut
Name, Donut Quantity, Unit Price, and Donut Description are an example of a repeating group. As I
mentioned earlier, in order to achieve first normal form, we must eliminate repeating groups. This
requires the use of a composite key made up of Donut Order ID and Donut ID.
,Second Normal Form – 3 Tables
In order to achieve second normal form we need to split the first table into three separate tables so
that all non-key attributes are functionally dependent on the entire primary key. I took the
attributes that are partially dependent on the primary key, and placed them into separate relations.
Donut Name, Donut Description, and Unit Price depend only on Donut Order ID. Donut Quantity and
Item Total depend on both Donut Order ID and Donut ID. Third Normal Form – 4 Tables
In order to achieve third normal form we need to eliminate any transitive dependency, meaning an
attribute depends on another attribute that is not the primary key. For example, looking at our
second normal form tables, Customer Last Name is dependent on Donut Order ID. (Each Donut Order
ID has only one Customer Last Name value associated with it) To transform into third normal form we
simply move any transitively dependent attributes to their own relation where they depend on only
the primary key.
, Entity Relationship Diagram using tables from A1C:
Both the Customer and Donut entities have a single primary key and related attributes that describe
them. The orderDetails table is an associative entity that shows the interactive relationship between
the Donut, and donutOrder entities. The DonutOrder entity has a primary key of DonutOrder_ID, and
a foreign key consisting of Customer_ID to record the order date, notes, and totals that describe the
interaction of the
Customer and Donut purchase with corresponding foreign keys. The cardinality from customer to
donutOrder is 1-to-many as a customer can place multiple orders, while the cardinality in the other
direction will be manyto-1 because a donutOrder will have at most one customer per order. The donut
to orderDetails cardinality is 1-to-many as one donut can fill multiple orderDetail records, while in the
other direction, an orderDetails record will have 1 donut per record, representing a many-to-1
relationship. The donutOrder to orderDetails cardinality is 1-to-many as one donutORder may
reference multiple orderDetail records, and in the other direction, one orderDetails record will only
pertain to one donutOrder. The orderDetails table has a composite primary and composite foreign key
key consisting of donutOrder_ID and Donut_ID which shows the intersection data of the Donut and
donutOrder tables.
