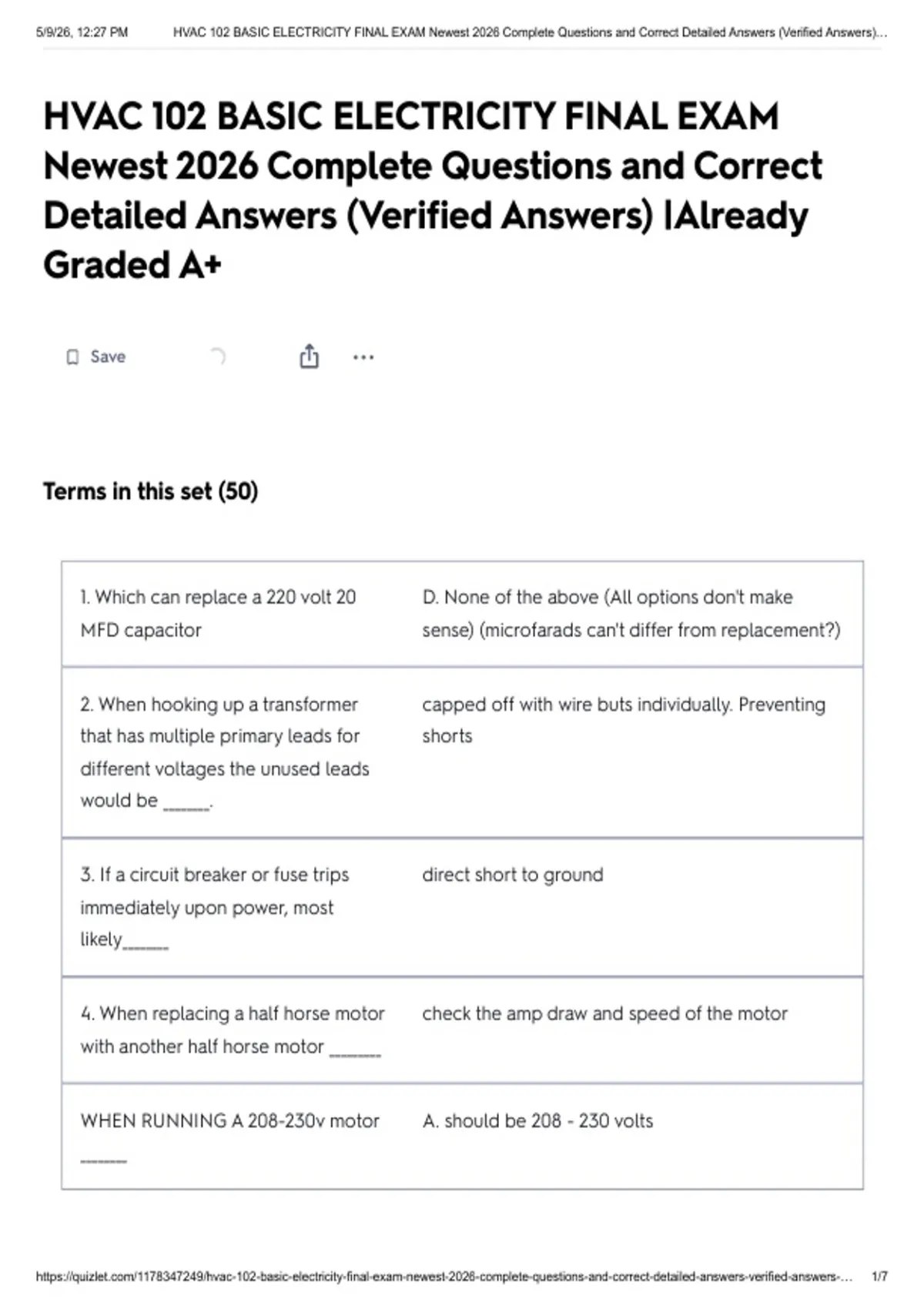

HVAC 102 BASIC ELECTRICITY FINAL EXAM
Newest 2026 Complete Questions and Correct
Detailed Answers (Verified Answers) |Already
Graded A+
Save
Terms in this set (50)
1. Which can replace a 220 volt 20 D. None of the above (All options don't make
MFD capacitor sense) (microfarads can't differ from replacement?)
2. When hooking up a transformer capped off with wire buts individually. Preventing
that has multiple primary leads for shorts
different voltages the unused leads
would be ________.
3. If a circuit breaker or fuse trips direct short to ground
immediately upon power, most
likely________
4. When replacing a half horse motor check the amp draw and speed of the motor
with another half horse motor _________
WHEN RUNNING A 208-230v motor A. should be 208 - 230 volts
________
https://quizlet.com/1178347249/hvac-102-basic-electricity-final-exam-newest-2026-complete-questions-and-correct-detailed-answers-verified-answers-… 1/7
, 5/9/26, 12:27 PM HVAC 102 BASIC ELECTRICITY FINAL EXAM Newest 2026 Complete Questions and Correct Detailed Answers (Verified Answers)…
6. The reason for having a resistor It will bleed off the wattage and keep the motor
solder to a start capacitor terminal is from workin too hard
so _________
7. The purpose of a megohmmeter is can help to find places in the windings where the
to________. insulation is getting weak
The biggest advantage of an ECM It can change its speed in response to what it
motor is that _______ senses in the system.
A split phase motor has a ____ winding Start, run
and a _____ winding.
The Back EMF of a motor is ________ all the above (induced in start winding, voltage is
higher than applied voltage, used to operate a
potential relay
A split phase motor can use a ______ to Centrifugal switch
energize and de energize The start
winding
A current magnetic relay (CMR ) D. Current in the run winding
opens and closes it's contacts based
on ________.
A permanent split capacitor (PSC) in series with the run winding
motor that is running and up to
speed will have the start winding ____.
A split phase motor that has a CSIR MOTOR capacitor start induction run motor
current relay and a start capacitor is
called a _______
https://quizlet.com/1178347249/hvac-102-basic-electricity-final-exam-newest-2026-complete-questions-and-correct-detailed-answers-verified-answers-… 2/7
