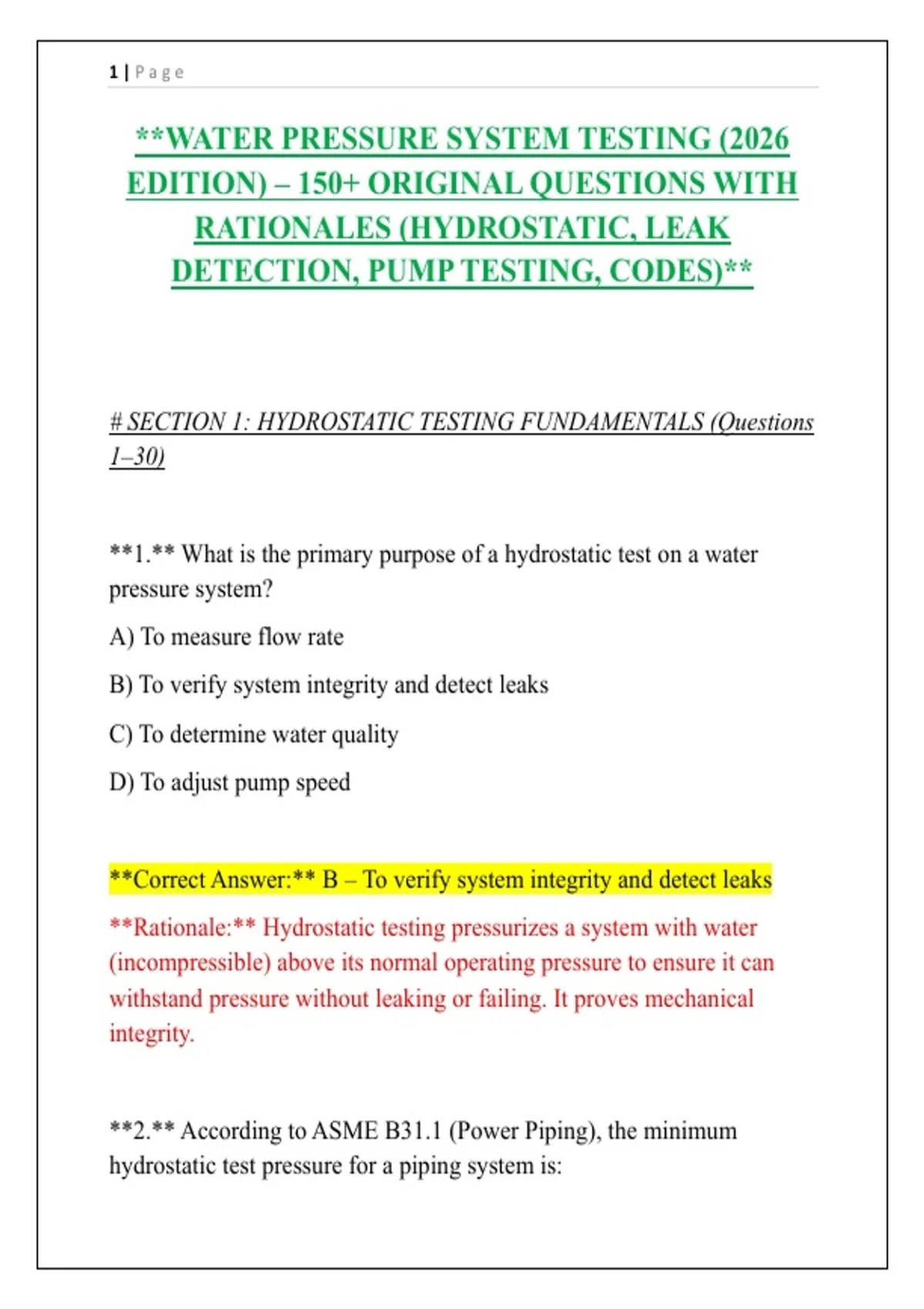

Water Pressure System Testing – 150+ Practice Questions with Rationales | Hydrostatic, Leak Detection, Pump Testing, Codes | 2026 Edition

1|Page


**WATER PRESSURE SYSTEM TESTING (2026
EDITION) – 150+ ORIGINAL QUESTIONS WITH
RATIONALES (HYDROSTATIC, LEAK
DETECTION, PUMP TESTING, CODES)**



# SECTION 1: HYDROSTATIC TESTING FUNDAMENTALS (Questions
1–30)


**1.** What is the primary purpose of a hydrostatic test on a water
pressure system?
A) To measure flow rate
B) To verify system integrity and detect leaks
C) To determine water quality
D) To adjust pump speed


**Correct Answer:** B – To verify system integrity and detect leaks
**Rationale:** Hydrostatic testing pressurizes a system with water
(incompressible) above its normal operating pressure to ensure it can
withstand pressure without leaking or failing. It proves mechanical
integrity.


**2.** According to ASME B31.1 (Power Piping), the minimum
hydrostatic test pressure for a piping system is:

,2|Page


A) 100 psi
B) 1.1 times the design pressure
C) 1.5 times the design pressure
D) 2.0 times the design pressure


**Correct Answer:** C – 1.5 times the design pressure
**Rationale:** ASME B31.1 and B31.3 require hydrostatic test pressure
to be at least 1.5× the design pressure (MAWP). For pneumatic testing,
1.1× is used due to stored energy hazards.


**3.** Why is water preferred over air for pressure testing?
A) Water is compressible and stores less energy
B) Water is essentially incompressible, storing minimal energy if rupture
occurs
C) Water is cheaper than air
D) Water evaporates quickly


**Correct Answer:** B – Water is essentially incompressible, storing
minimal energy if rupture occurs
**Rationale:** Water has very low compressibility. If a system ruptures
during testing, the pressure drops almost instantly with minimal energy
release. Compressed air stores significant energy and can cause
explosive failure.

,3|Page


**4.** The minimum time to maintain test pressure for a hydrostatic test
of a small water line is typically:
A) 10 minutes
B) 1 hour
C) 10 hours
D) 24 hours


**Correct Answer:** A – 10 minutes
**Rationale:** For small-diameter piping systems (e.g., residential or
commercial), a 10–15 minute hold at test pressure is common, provided
no visible leakage occurs. Larger systems or code requirements may
require longer durations.


**5.** Which gauge is most appropriate for measuring test pressure in a
hydrostatic test?
A) A gauge with a range equal to the test pressure
B) A gauge with a range 2× the expected test pressure
C) A gauge with a range 5× the expected test pressure
D) A gauge with a range 0.5× the expected test pressure


**Correct Answer:** B – A gauge with a range 2× the expected test
pressure
**Rationale:** For accuracy, the gauge should have a range
approximately twice the test pressure, allowing readings in the upper

, 4|Page


half of the scale. Using a gauge with a range exactly equal to the test
pressure risks pegging the needle.


**6.** Acceptable pressure drop during a hydrostatic test (sealed
system) is generally:
A) 0 psi drop (no detectable drop)
B) 10% of test pressure
C) 25% of test pressure
D) 50% of test pressure


**Correct Answer:** A – 0 psi drop (no detectable drop)
**Rationale:** For a sealed system with no leaks and stable
temperature, the pressure should remain constant. Temperature changes
can cause minor pressure fluctuations (±2–5 psi), but any sustained drop
indicates leakage or trapped air.


**7.** Air trapped in a water system during hydrostatic testing causes:
A) Increased sensitivity to leak detection
B) False pressure stability (air compresses, masking small leaks)
C) Faster test completion
D) No effect


**Correct Answer:** B – False pressure stability (air compresses,
masking small leaks)
