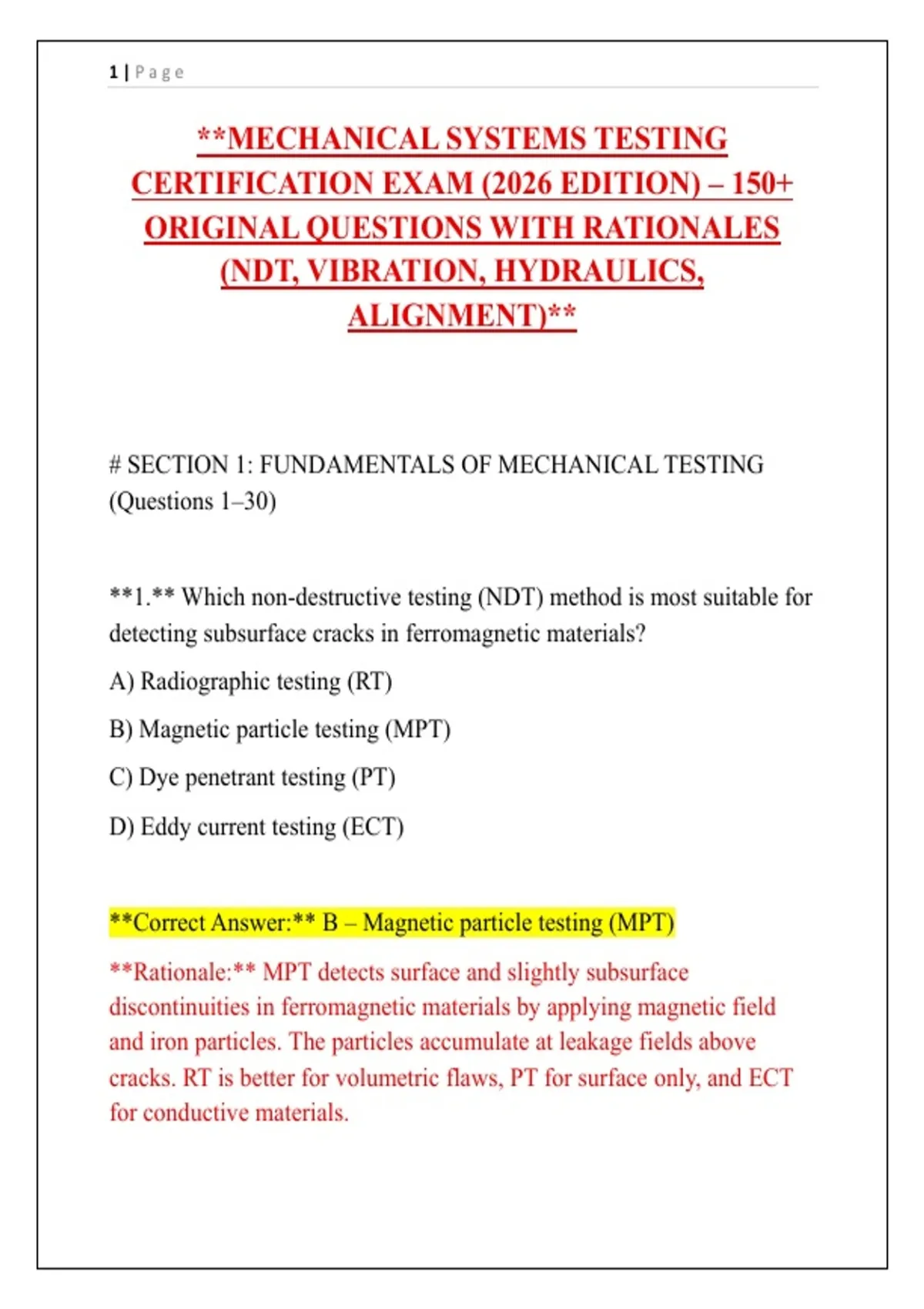

1|Page
**MECHANICAL SYSTEMS TESTING
CERTIFICATION EXAM (2026 EDITION) – 150+
ORIGINAL QUESTIONS WITH RATIONALES
(NDT, VIBRATION, HYDRAULICS,
ALIGNMENT)**
# SECTION 1: FUNDAMENTALS OF MECHANICAL TESTING
(Questions 1–30)
**1.** Which non-destructive testing (NDT) method is most suitable for
detecting subsurface cracks in ferromagnetic materials?
A) Radiographic testing (RT)
B) Magnetic particle testing (MPT)
C) Dye penetrant testing (PT)
D) Eddy current testing (ECT)
**Correct Answer:** B – Magnetic particle testing (MPT)
**Rationale:** MPT detects surface and slightly subsurface
discontinuities in ferromagnetic materials by applying magnetic field
and iron particles. The particles accumulate at leakage fields above
cracks. RT is better for volumetric flaws, PT for surface only, and ECT
for conductive materials.
,2|Page
**2.** A pressure gauge reads 150 psi when the true pressure is 148 psi.
What is the percent error?
A) 1.35%
B) 2.0%
C) 0.67%
D) 4.0%
**Correct Answer:** A – 1.35%
**Rationale:** Absolute error = |150 – 148| = 2 psi. Percent error =
(absolute error / true value) × 100 = (2/148) × 100 = 1.35%. Percent
error is always calculated relative to the true value .
**3.** Which test determines a material's resistance to indentation?
A) Tensile test
B) Rockwell hardness test
C) Impact test
D) Creep test
**Correct Answer:** B – Rockwell hardness test
**Rationale:** Rockwell hardness measures resistance to permanent
indentation by applying a load through an indenter (diamond cone or
steel ball). The depth of penetration determines the hardness number .
,3|Page
**4.** In vibration analysis, the unit "ips" stands for:
A) Inches per second (velocity)
B) Inches per second² (acceleration)
C) Imperial pressure standard
D) Inductive proximity speed
**Correct Answer:** A – Inches per second (velocity)
**Rationale:** ips (inches per second) is a common unit for vibration
velocity amplitude, used in machinery vibration testing per ISO 10816
standards. Acceleration is measured in g's or in/s², displacement in mils
(0.001 inch) .
**5.** A thermocouple measures:
A) Pressure difference
B) Temperature via the Seebeck effect
C) Fluid flow velocity
D) Strain
**Correct Answer:** B – Temperature via the Seebeck effect
**Rationale:** A thermocouple consists of two dissimilar metals joined
at a junction. The Seebeck effect generates a voltage proportional to the
temperature difference between the measurement junction and the
reference junction .
, 4|Page
**6.** The purpose of a hydrostatic test on a pressure vessel is to:
A) Check for leaks under pressure
B) Determine burst pressure
C) Verify structural integrity at 1.5× design pressure
D) Measure wall thickness
**Correct Answer:** C – Verify structural integrity at 1.5× design
pressure
**Rationale:** Hydrostatic testing uses water (incompressible) at 1.5
times the Maximum Allowable Working Pressure (MAWP) to ensure no
yielding or leakage, without storing energy that would cause explosive
failure .
**7.** Which transducer is used for measuring dynamic force in impact
testing?
A) LVDT
B) Piezoelectric load cell
C) Bourdon tube
D) RTD
**Correct Answer:** B – Piezoelectric load cell
**Rationale:** Piezoelectric sensors have fast response time and high
sensitivity, making them ideal for measuring transient forces in impact
