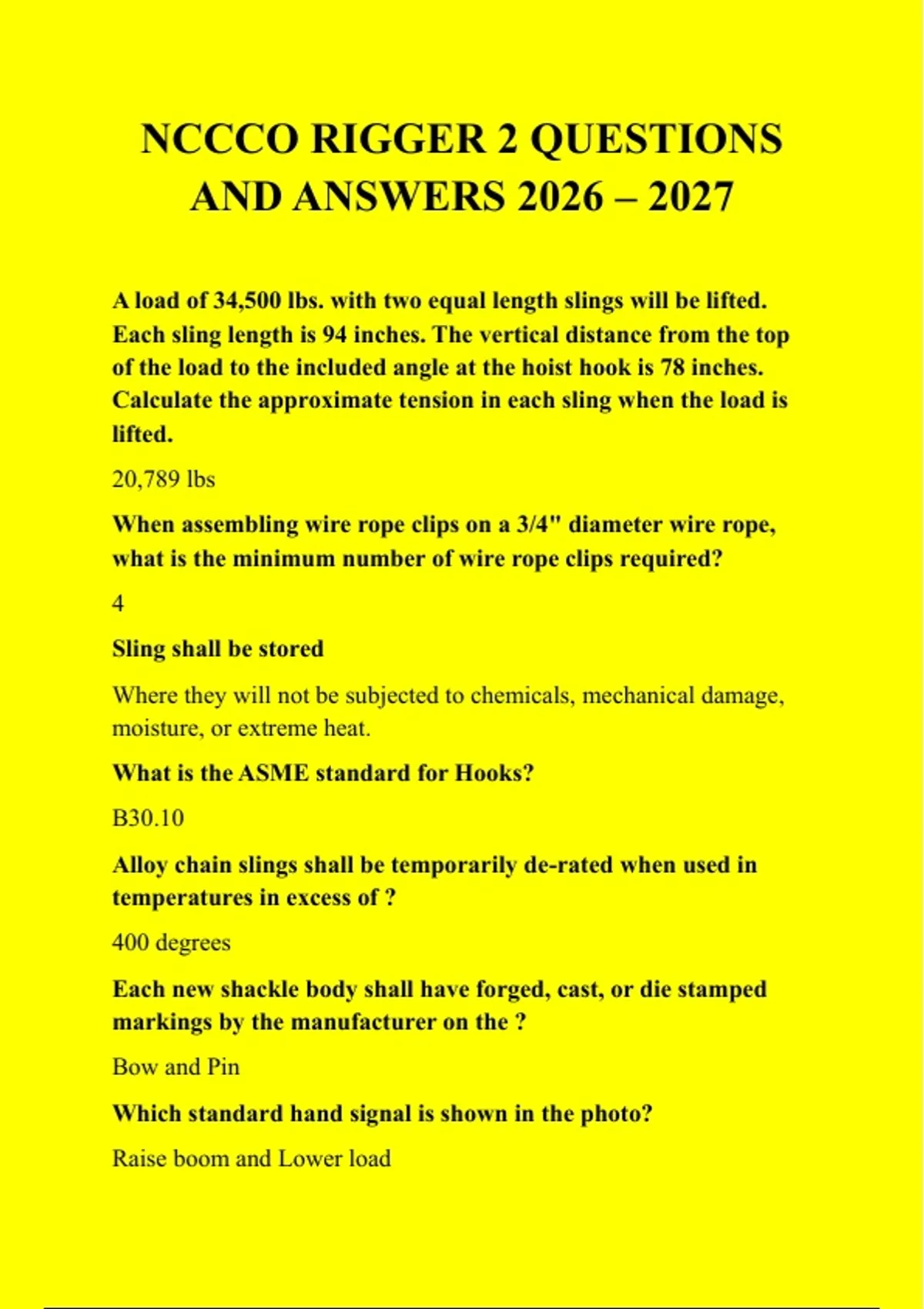

NCCCO RIGGER 2 QUESTIONS
AND ANSWERS 2026 – 2027
A load of 34,500 lbs. with two equal length slings will be lifted.
Each sling length is 94 inches. The vertical distance from the top
of the load to the included angle at the hoist hook is 78 inches.
Calculate the approximate tension in each sling when the load is
lifted.
20,789 lbs
When assembling wire rope clips on a 3/4" diameter wire rope,
what is the minimum number of wire rope clips required?
4
Sling shall be stored
Where they will not be subjected to chemicals, mechanical damage,
moisture, or extreme heat.
What is the ASME standard for Hooks?
B30.10
Alloy chain slings shall be temporarily de-rated when used in
temperatures in excess of ?
400 degrees
Each new shackle body shall have forged, cast, or die stamped
markings by the manufacturer on the ?
Bow and Pin
Which standard hand signal is shown in the photo?
Raise boom and Lower load
, A hitch is considered vertical when it is within____degrees of
vertical
5 degrees
A rigging block is attached to a support beam. The line pull is
12,750 lbs and the block fully included angle is 90 degrees.
Calculate the approximate block load to the support beam.
17,978 lbs
What standard hand signal is shown in the picture?
Trolley Travel
Metal Mesh slings can be used up to _______ temperature?
400 degrees
What are ASME standards designations for
B30.9_____________,B30.10______________B30.26____________
__?
Slings, Hooks, Hardware
When lifting Personnel, the personnel platform should remain
within _____degrees of horizontal level.
10 degrees
Hooks used for attachment of a personnel lifting platform shall
have what type of latch?
Locking
When using a hydraulic jack, if the lever becomes too hard to
press, what do you do?
Get a jack with a higher capacity
What is the needed force to pull a metal container weighing
36,000 lbs up a concrete ramp 6 ft Height x 24 ft Length?
