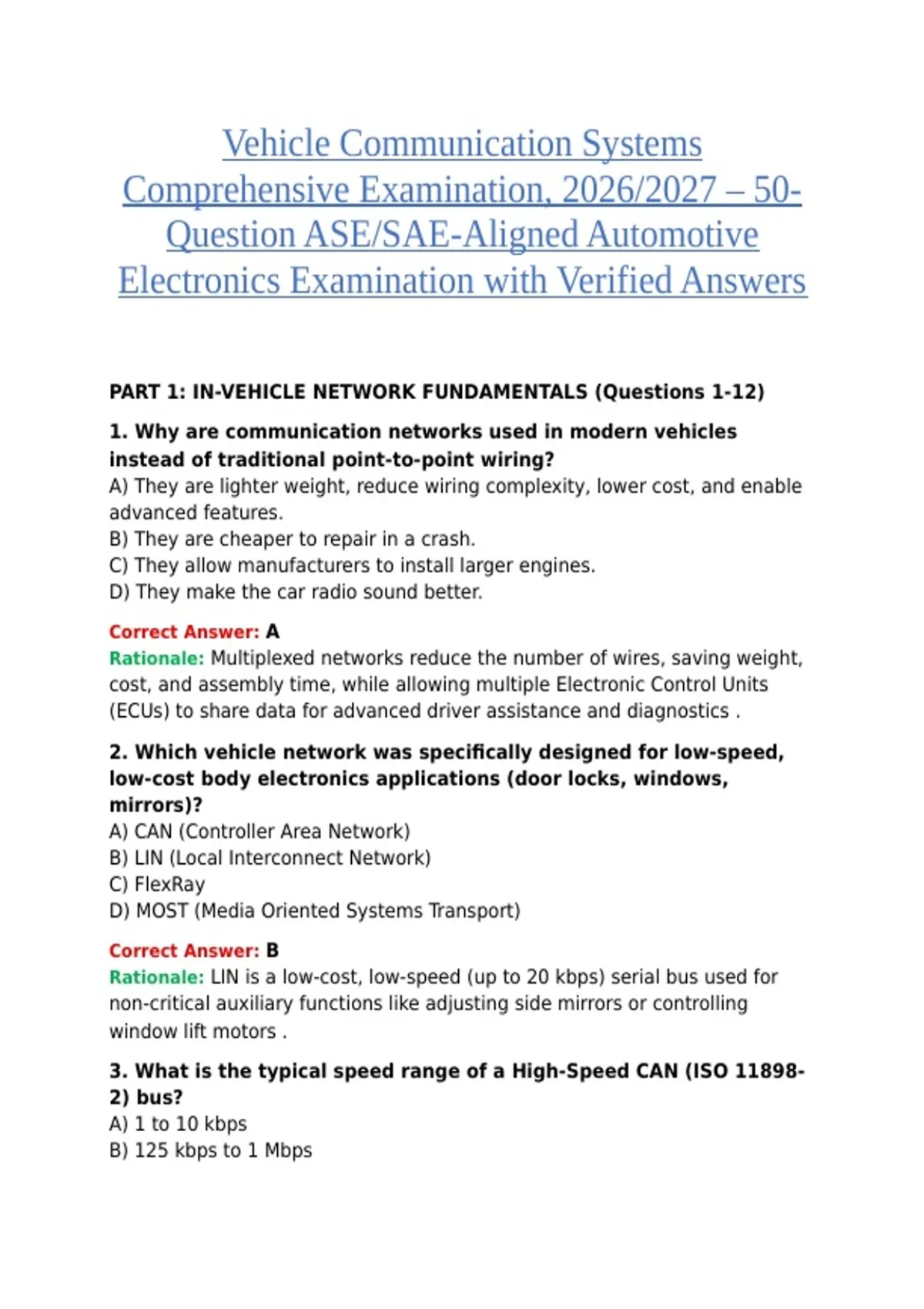

Vehicle Communication Systems
Comprehensive Examination, 2026/2027 – 50-
Question ASE/SAE-Aligned Automotive
Electronics Examination with Verified Answers
PART 1: IN-VEHICLE NETWORK FUNDAMENTALS (Questions 1-12)
1. Why are communication networks used in modern vehicles
instead of traditional point-to-point wiring?
A) They are lighter weight, reduce wiring complexity, lower cost, and enable
advanced features.
B) They are cheaper to repair in a crash.
C) They allow manufacturers to install larger engines.
D) They make the car radio sound better.
Correct Answer: A
Rationale: Multiplexed networks reduce the number of wires, saving weight,
cost, and assembly time, while allowing multiple Electronic Control Units
(ECUs) to share data for advanced driver assistance and diagnostics .
2. Which vehicle network was specifically designed for low-speed,
low-cost body electronics applications (door locks, windows,
mirrors)?
A) CAN (Controller Area Network)
B) LIN (Local Interconnect Network)
C) FlexRay
D) MOST (Media Oriented Systems Transport)
Correct Answer: B
Rationale: LIN is a low-cost, low-speed (up to 20 kbps) serial bus used for
non-critical auxiliary functions like adjusting side mirrors or controlling
window lift motors .
3. What is the typical speed range of a High-Speed CAN (ISO 11898-
2) bus?
A) 1 to 10 kbps
B) 125 kbps to 1 Mbps
, C) 10 to 100 Mbps
D) 150 Mbps to 1 Gbps
Correct Answer: B
Rationale: High-Speed CAN (HS-CAN) operates up to 1 Mbps and is used for
real-time powertrain and chassis systems (e.g., engine, transmission, ABS).
Low-Speed CAN (Fault-Tolerant) runs up to 125 kbps .
4. Which type of CAN bus uses a single wire for communication
instead of a twisted pair?
A) High-Speed CAN
B) Low-Speed / Fault-Tolerant CAN (Single Wire CAN)
C) CAN FD (Flexible Data-Rate)
D) CAN XL
Correct Answer: B
Rationale: Low-Speed CAN (LS-CAN or SWC) can operate with just one wire
in normal mode, but it can also switch to a second wire for fault tolerance if a
short or open occurs .
5. FlexRay was specifically designed to meet the requirements of
which vehicle system?
A) Infotainment
B) X-by-Wire (e.g., brake-by-wire, steer-by-wire)
C) Tire Pressure Monitoring
D) Lighting modules
Correct Answer: B
Rationale: FlexRay was designed for deterministic, high-reliability, high-
speed (10 Mbps) communication required by safety-critical X-by-Wire
systems where data delivery times must be guaranteed .
6. Which network protocol is primarily used for high-bandwidth
multimedia (video, audio, navigation) and uses plastic optical fiber
(POF)?
A) LIN
B) CAN FD
C) MOST (Media Oriented Systems Transport)
D) J1939
Correct Answer: C
Rationale: MOST is designed for infotainment applications, using a ring
Comprehensive Examination, 2026/2027 – 50-
Question ASE/SAE-Aligned Automotive
Electronics Examination with Verified Answers
PART 1: IN-VEHICLE NETWORK FUNDAMENTALS (Questions 1-12)
1. Why are communication networks used in modern vehicles
instead of traditional point-to-point wiring?
A) They are lighter weight, reduce wiring complexity, lower cost, and enable
advanced features.
B) They are cheaper to repair in a crash.
C) They allow manufacturers to install larger engines.
D) They make the car radio sound better.
Correct Answer: A
Rationale: Multiplexed networks reduce the number of wires, saving weight,
cost, and assembly time, while allowing multiple Electronic Control Units
(ECUs) to share data for advanced driver assistance and diagnostics .
2. Which vehicle network was specifically designed for low-speed,
low-cost body electronics applications (door locks, windows,
mirrors)?
A) CAN (Controller Area Network)
B) LIN (Local Interconnect Network)
C) FlexRay
D) MOST (Media Oriented Systems Transport)
Correct Answer: B
Rationale: LIN is a low-cost, low-speed (up to 20 kbps) serial bus used for
non-critical auxiliary functions like adjusting side mirrors or controlling
window lift motors .
3. What is the typical speed range of a High-Speed CAN (ISO 11898-
2) bus?
A) 1 to 10 kbps
B) 125 kbps to 1 Mbps
, C) 10 to 100 Mbps
D) 150 Mbps to 1 Gbps
Correct Answer: B
Rationale: High-Speed CAN (HS-CAN) operates up to 1 Mbps and is used for
real-time powertrain and chassis systems (e.g., engine, transmission, ABS).
Low-Speed CAN (Fault-Tolerant) runs up to 125 kbps .
4. Which type of CAN bus uses a single wire for communication
instead of a twisted pair?
A) High-Speed CAN
B) Low-Speed / Fault-Tolerant CAN (Single Wire CAN)
C) CAN FD (Flexible Data-Rate)
D) CAN XL
Correct Answer: B
Rationale: Low-Speed CAN (LS-CAN or SWC) can operate with just one wire
in normal mode, but it can also switch to a second wire for fault tolerance if a
short or open occurs .
5. FlexRay was specifically designed to meet the requirements of
which vehicle system?
A) Infotainment
B) X-by-Wire (e.g., brake-by-wire, steer-by-wire)
C) Tire Pressure Monitoring
D) Lighting modules
Correct Answer: B
Rationale: FlexRay was designed for deterministic, high-reliability, high-
speed (10 Mbps) communication required by safety-critical X-by-Wire
systems where data delivery times must be guaranteed .
6. Which network protocol is primarily used for high-bandwidth
multimedia (video, audio, navigation) and uses plastic optical fiber
(POF)?
A) LIN
B) CAN FD
C) MOST (Media Oriented Systems Transport)
D) J1939
Correct Answer: C
Rationale: MOST is designed for infotainment applications, using a ring
