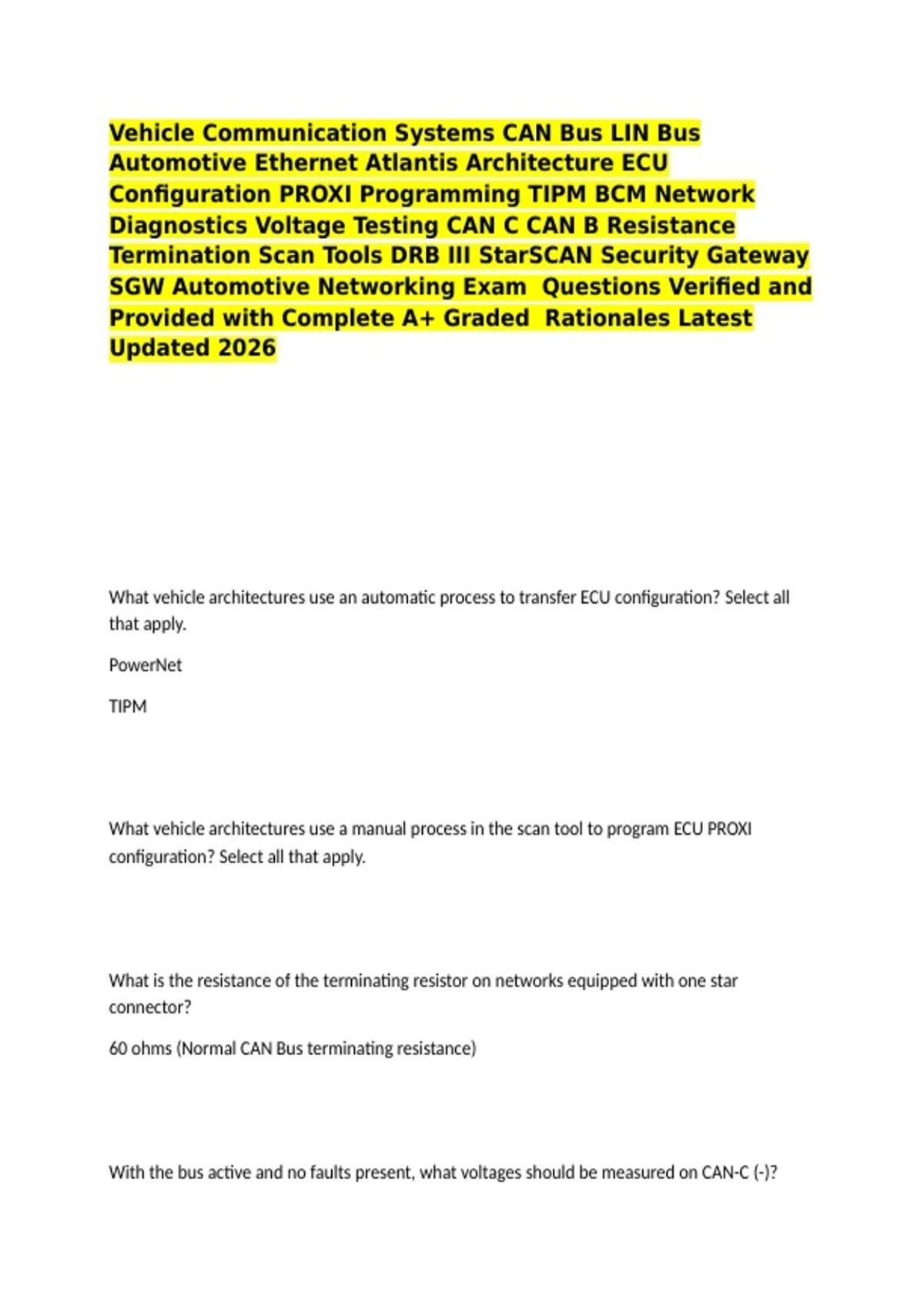

Vehicle Communication Systems CAN Bus LIN Bus Automotive Ethernet Atlantis Architecture ECU Configuration PROXI Programming TIPM BCM Network Diagnostics Voltage Testing CAN C CAN B Resistance Termination Scan Tools DRB III StarSCAN Security Gateway SGW Automotive Networking Exam Questions Verified and Provided with Complete A+ Graded Rationales Latest Updated 2026 What vehicle architectures use an automatic process to transfer ECU configuration? Select all that apply. PowerNet TIPM What vehicle architectures use a manual process in the scan tool to program ECU PROXI configuration? Select all that apply. What is the resistance of the terminating resistor on networks equipped with one star connector? 60 ohms (Normal CAN Bus terminating resistance) With the bus active and no faults present, what voltages should be measured on CAN-C (-)? Not Approximately 4.8V 1.3-2.3V Which of the following vehicles are equipped with the Atlantis architecture? Select all that apply. Jeep renegade Jeep compass Alfa Giulia Alfa Stelvio What Atlantis-High network uses splice block connectors? The WL Grand Cherokee Only on the CAN-BH Bus Atlantis-High found on? 2021 Grand Cherokee(or WL) (Automotive Ethernet standard 100BASE-TX){1500 bytes up to 100 mbps}still use a twisted pair like CAN Can't be spliced or repaired like CAN Wires Ideal for screen mirroring and streaming connected services 2022 Wagoneer(or WS) With the bus active and no faults present, what voltages should be measured on CAN-B (+)? 0.39V-0.46V Which diagnostic software and scan tool should be used to diagnose legacy vehicle architectures? Hybrid of CAN with early versions of serial-communication networks Peripheral Component Interconnect Serial Communication Interface SAE's J1850, or K-Line as primary network DRB-III or Star Scan Enhanced DRB-III Emulatora With the bus active and no faults present, what voltages should be measured on LIN? 0.2V - 0.5V CAN-C is being measured. What should Meter B display based on the fault shown? What modules is the vehicle configuration data typically saved in? Select all that apply. BCM TIPM
