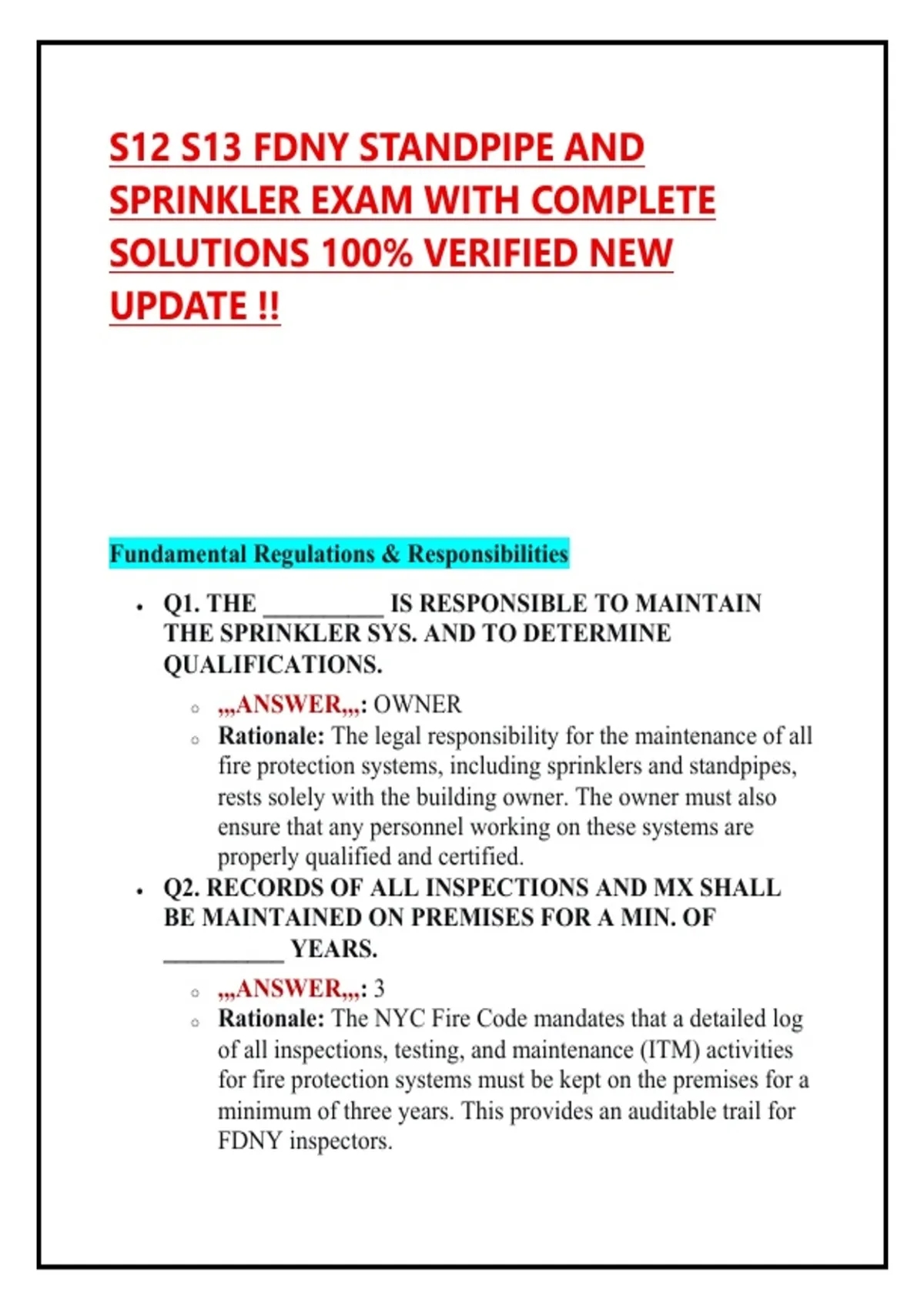

S12 S13 FDNY STANDPIPE AND
SPRINKLER EXAM WITH COMPLETE
SOLUTIONS 100% VERIFIED NEW
UPDATE !!
Fundamental Regulations & Responsibilities
• Q1. THE __________ IS RESPONSIBLE TO MAINTAIN
THE SPRINKLER SYS. AND TO DETERMINE
QUALIFICATIONS.
o ,,,ANSWER,,,: OWNER
o Rationale: The legal responsibility for the maintenance of all
fire protection systems, including sprinklers and standpipes,
rests solely with the building owner. The owner must also
ensure that any personnel working on these systems are
properly qualified and certified.
• Q2. RECORDS OF ALL INSPECTIONS AND MX SHALL
BE MAINTAINED ON PREMISES FOR A MIN. OF
__________ YEARS.
o ,,,ANSWER,,,: 3
o Rationale: The NYC Fire Code mandates that a detailed log
of all inspections, testing, and maintenance (ITM) activities
for fire protection systems must be kept on the premises for a
minimum of three years. This provides an auditable trail for
FDNY inspectors.
, • Q3. THE BUILDING OWNER SHALL ASSIGN A(N)
__________ TO COMPLY WITH REQUIREMENTS.
o ,,,ANSWER,,,: IMPAIRMENT COORDINATOR
o Rationale: The owner must designate an Impairment
Coordinator to manage any planned or emergency outages
of a fire protection system. This person is responsible for
issuing permits, notifying the FDNY, and ensuring a fire
watch is in place during the impairment.
• Q4. "RCNY" is the abbreviation for?
o ,,,ANSWER,,,: Rules of the City of New York
o Rationale: The "RCNY" is a critical NYC rulebook
containing the detailed technical regulations for fire safety
systems, such as RCNY §905-01 (sprinkler systems). It is
distinct from the Fire Code and provides the "how-to"
specifics.
System Hardware & Indicators
• Q5. If the stem extends from an OS&Y valve, what does that
indicate?
o ,,,ANSWER,,,: The valve is OPEN
o Rationale: An OS&Y (Outside Stem and Yoke) valve is a
type of gate valve where the stem threads are external. The
stem visibly moves in and out as it is operated. When the
stem is extended, the gate is retracted, indicating a fully open
position. A retracted stem indicates the valve is closed.
• Q6. What is the function of the lower check valve?
o ,,,ANSWER,,,: To prevent back flow into the water main.
o Rationale: The lower check valve is located just above the
fire department connection (FDC). Its primary purpose is a
one-way gate, preventing potentially contaminated water
from the building's system from flowing back into and
contaminating the city's main water supply.
,• Q7. What is the function of the upper check valve?
o ,,,ANSWER,,,: To prevent back flow into the gravity tank.
o Rationale: Located above a gravity tank, this check valve
ensures that water that has been discharged downstream
cannot flow back up into the tank, ensuring the tank's water
level and supply are preserved.
• Q8. Where is the automatic ball drip located in a sprinkler
system?
o ,,,ANSWER,,,: Between the lower check valve and the fire
department connection.
o Rationale: The ball drip is a small automatic drain valve,
physically located between the lower check valve and the
outside FDC. It is designed to automatically drain any water
that may be trapped in the piping between these two points,
preventing it from freezing in cold weather.
• Q9. The buildup of foreign matter on a sprinkler head is
called?
o ,,,ANSWER,,,: Loading
o Rationale: "Loading" refers to the accumulation of foreign
materials, such as dust, dirt, paint, or grease, on the sprinkler
head's heat-collecting elements. This can insulate the head,
causing it to slow its response to heat or fail to operate at its
intended temperature.
• Q10. When a sprinkler head is said to "have fused", it means
that it?
o ,,,ANSWER,,,: Has been exposed to its rated temperature
and activated.
o Rationale: The term "fused" describes the operation of a
sprinkler head. A fusible link (a piece of metal that melts at a
specific temperature) or a glass bulb (filled with a heat-
sensitive liquid) breaks or shatters, releasing the plug that
holds back the water pressure.
, Emergency & Impairment Protocols
• Q11. Where does the on-duty Building Evacuation Supervisor
report when an alarm is activated?
o ,,,ANSWER,,,: To the Fire Command Station.
o Rationale: The Fire Command Station (or Fire Command
Center) is the designated central point for managing building
emergencies. The Evacuation Supervisor must report there to
coordinate with the Fire Safety Director and, upon their
arrival, the FDNY Incident Commander.
• Q12. "Fail Safe" when referred to in locks, means?
o ,,,ANSWER,,,: The door can be opened if the power fails.
o Rationale: A "fail safe" locking system is designed for life
safety. In the event of a power failure that disables the
electronic control, the lock mechanism automatically
disengages, allowing the door to be opened from the inside to
ensure unimpeded egress.
• Q13. A fire alarm box painted plain red (no stripe). When
activated, an alarm will be sent?
o ,,,ANSWER,,,: Within the building.
o Rationale: This type of box is a local alarm. Its activation
will only sound horns and strobes inside the specific building
and is not automatically transmitted to the FDNY's dispatch
center.
• Q14. Which of the following is a member of the Fire Brigade?
o ,,,ANSWER,,,: Deputy Fire Safety Director/ Fire Safety
Director/ Fire Warden (none of the above).
o Rationale: These are all positions designated as Fire Brigade
leaders or members. The trick is in the wording of the
,,,ANSWER,,,; they are all valid members.
• Q15. The primary duty of a fire brigade is to?
o ,,,ANSWER,,,: Evacuate occupants of the building.
