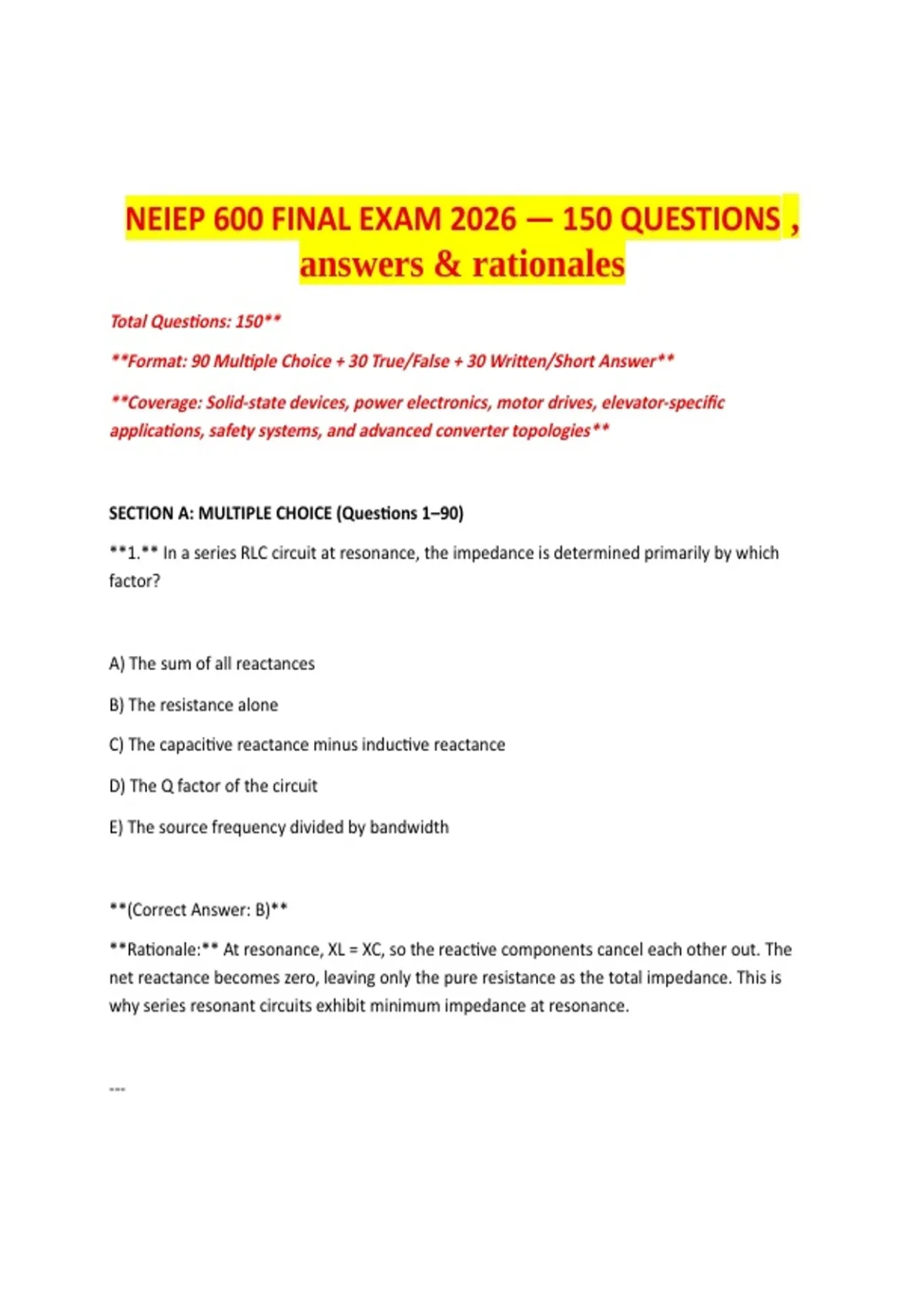

NEIEP 600 FINAL EXAM 2026 — 150 QUESTIONS ,
answers & rationales
Total Questions: 150**
**Format: 90 Multiple Choice + 30 True/False + 30 Written/Short Answer**
**Coverage: Solid-state devices, power electronics, motor drives, elevator-specific
applications, safety systems, and advanced converter topologies**
SECTION A: MULTIPLE CHOICE (Questions 1–90)
**1.** In a series RLC circuit at resonance, the impedance is determined primarily by which
factor?
A) The sum of all reactances
B) The resistance alone
C) The capacitive reactance minus inductive reactance
D) The Q factor of the circuit
E) The source frequency divided by bandwidth
**(Correct Answer: B)**
**Rationale:** At resonance, XL = XC, so the reactive components cancel each other out. The
net reactance becomes zero, leaving only the pure resistance as the total impedance. This is
why series resonant circuits exhibit minimum impedance at resonance.
---
,**2.** A silicon diode has a forward voltage drop of approximately 0.7V at room temperature. If
the junction temperature increases by 25°C, what is the expected change in forward voltage?
A) Increases by approximately 50mV
B) Decreases by approximately 50mV
C) Remains constant at 0.7V
D) Increases by approximately 100mV
E) Decreases by approximately 100mV
**(Correct Answer: B)**
**Rationale:** The temperature coefficient of a silicon PN junction is approximately -2mV/°C. A
25°C increase causes the forward voltage drop to decrease by roughly 50mV (25 × 2mV). This
negative temperature coefficient is critical in thermal runaway analysis for transistor biasing.
---
**3.** When analyzing a full-wave bridge rectifier with a capacitor input filter, the ripple
frequency is:
A) Equal to the input AC frequency
B) Twice the input AC frequency
C) Half the input AC frequency
D) Four times the input AC frequency
E) Equal to the RC time constant
**(Correct Answer: B)**
,**Rationale:** A full-wave bridge rectifier inverts the negative half-cycles, producing output
pulses during both half-cycles of the AC input. Therefore, the ripple frequency is 2 × line
frequency (120Hz for 60Hz mains). This is a key advantage over half-wave rectification.
---
**4.** In a common-emitter transistor amplifier, if the base current increases while collector
voltage remains fixed, the operating point moves:
A) Up the load line toward saturation
B) Down the load line toward cutoff
C) Horizontally along the DC load line
D) Vertically on the characteristic curve
E) Outside the active region immediately
**(Correct Answer: A)**
**Rationale:** Increased base current (IB) causes increased collector current (IC = β×IB). With a
fixed VCC and RC, increased IC drops more voltage across RC, reducing VCE and moving the Q-
point toward saturation (lower VCE, higher IC). This is fundamental to understanding transistor
biasing stability.
---
**5.** The primary purpose of a dielectric in a capacitor is to:
A) Increase the plate separation distance
B) Prevent electrical contact between plates while increasing capacitance
C) Reduce the voltage rating of the capacitor
, D) Act as a conductor between plates
E) Decrease the stored energy density
**(Correct Answer: B)**
**Rationale:** The dielectric material increases capacitance by a factor of εr (relative
permittivity) compared to air/vacuum, while serving as an insulator preventing plate contact. It
also determines the maximum electric field (voltage rating) the capacitor can withstand before
dielectric breakdown.
---
**6.** In an inductive AC circuit, the current waveform lags the voltage waveform by:
A) 0 degrees
B) 45 degrees
C) 90 degrees
D) 180 degrees
E) 270 degrees
**(Correct Answer: C)**
**Rationale:** In a purely inductive circuit, the current lags voltage by 90° (π/2 radians). This
occurs because the inductor opposes changes in current via self-induced back EMF (Lenz's Law).
The energy is stored in the magnetic field during one quarter-cycle and returned during the
next.
---
