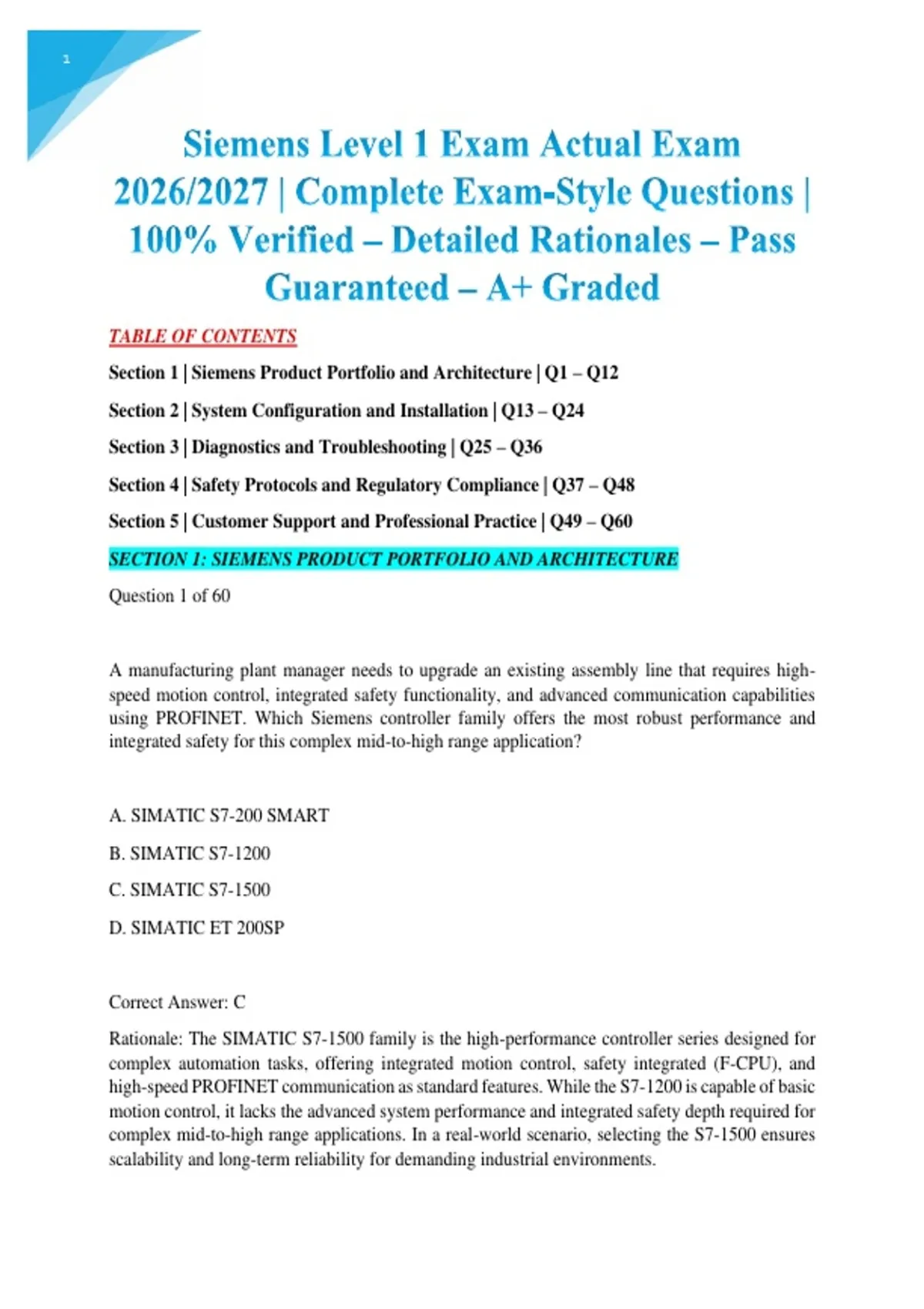

Siemens Level 1 Exam Actual Exam
2026/2027 | Complete Exam-Style Questions |
100% Verified – Detailed Rationales – Pass
Guaranteed – A+ Graded
TABLE OF CONTENTS
Section 1 | Siemens Product Portfolio and Architecture | Q1 – Q12
Section 2 | System Configuration and Installation | Q13 – Q24
Section 3 | Diagnostics and Troubleshooting | Q25 – Q36
Section 4 | Safety Protocols and Regulatory Compliance | Q37 – Q48
Section 5 | Customer Support and Professional Practice | Q49 – Q60
SECTION 1: SIEMENS PRODUCT PORTFOLIO AND ARCHITECTURE
Question 1 of 60
A manufacturing plant manager needs to upgrade an existing assembly line that requires high-
speed motion control, integrated safety functionality, and advanced communication capabilities
using PROFINET. Which Siemens controller family offers the most robust performance and
integrated safety for this complex mid-to-high range application?
A. SIMATIC S7-200 SMART
B. SIMATIC S7-1200
C. SIMATIC S7-1500
D. SIMATIC ET 200SP
Correct Answer: C
Rationale: The SIMATIC S7-1500 family is the high-performance controller series designed for
complex automation tasks, offering integrated motion control, safety integrated (F-CPU), and
high-speed PROFINET communication as standard features. While the S7-1200 is capable of basic
motion control, it lacks the advanced system performance and integrated safety depth required for
complex mid-to-high range applications. In a real-world scenario, selecting the S7-1500 ensures
scalability and long-term reliability for demanding industrial environments.
,2
Question 2 of 60
During a modernization project, an engineering team is tasked with standardizing their automation
software environment across PLC, HMI, and Drive technologies. Which Siemens software
platform provides a unified engineering framework for configuring, programming, and diagnosing
all these devices within a single interface?
A. SIMATIC Step 7 Classic
B. TIA Portal (Totally Integrated Automation Portal)
C. SINAMICS Startdrive
D. WinCC Unified
Correct Answer: B
Rationale: TIA Portal is the integrated engineering framework that allows users to efficiently
configure, program, and diagnose SIMATIC controllers, HMI devices, and drives in a single
project environment. SIMATIC Step 7 Classic is the legacy software for PLC programming only
and does not support the integrated configuration of drives or HMI in the same unified manner.
Adopting TIA Portal drastically reduces engineering time and minimizes integration errors during
the commissioning phase.
Question 3 of 60
A system integrator requires a Human Machine Interface (HMI) for a rugged machine environment
that features both a touchscreen for intuitive operation and physical function keys for frequently
used emergency commands. Which HMI series best combines these input methods while offering
high-resolution displays for industrial use?
A. SIMATIC HMI Comfort Panel
B. SIMATIC HMI Basic Panel
C. SIMATIC HMI Mobile Panel
D. SIMATIC WinCC Unified PC
,3
Correct Answer: A
Rationale: The SIMATIC HMI Comfort Panel series is specifically designed to offer high-
performance visualization with both touchscreen and optional or integrated physical function keys,
making it ideal for machine-level operation. Basic Panels are cost-effective but lack support for
physical keys and have limited performance features compared to the Comfort line. Selecting the
Comfort Panel ensures operators have the tactile feedback needed for safety-critical commands
alongside modern visualization capabilities.
Question 4 of 60
A water treatment facility needs a distributed I/O solution that is placed inside a control cabinet
close to the sensors and actuators to minimize wiring costs and maximize signal integrity. Which
Siemens I/O system is specifically optimized for cabinet-mounted installation with high
modularity and compact design?
A. SIMATIC ET 200MP
B. SIMATIC ET 200pro
C. SIMATIC ET 200eco
D. SIMATIC ET 200SP
Correct Answer: D
Rationale: The SIMATIC ET 200SP is a distributed I/O system designed specifically for cabinet
mounting, featuring a very compact design and high modularity that saves space while maintaining
signal integrity. ET 200pro is designed for harsh environments outside the cabinet with high
protection ratings, while ET 200MP serves general cabinet needs but is larger than the SP. Utilizing
ET 200SP allows for dense signal aggregation directly inside the control cabinet, significantly
reducing field wiring complexity.
Question 5 of 60
An automotive plant is implementing a new conveyor system that requires precise synchronization
between multiple drives and the main controller. Which industrial Ethernet protocol, developed by
Siemens and PROFIBUS & PROFINET International (PI), should be selected to ensure real-time
communication and deterministic data exchange?
, 4
A. AS-Interface
B. MODBUS TCP
C. PROFINET
D. EtherNet/IP
Correct Answer: C
Rationale: PROFINET is the Siemens-standard industrial Ethernet protocol that supports real-time
(RT) and isochronous real-time (IRT) communication, ensuring deterministic data exchange
essential for motion control applications. While EtherNet/IP is used in automation, PROFINET
offers superior integration with Siemens controllers for high-performance synchronization tasks.
Implementing PROFINET is the industry standard for Siemens-based motion control applications
requiring high-speed, deterministic data transmission.
Question 6 of 60
A facility engineer needs to integrate third-party field devices into a SIMATIC S7-1500
PROFINET network. To ensure the devices are recognized and configured correctly in the TIA
Portal project, which specific file must be obtained from the device manufacturer and imported
into the software?
A. GSD file (Generic Station Description)
B. TSD file (Type System Data)
C. CDF file (Component Description File)
D. EDS file (Electronic Data Sheet)
Correct Answer: A
Rationale: The GSD file contains the hardware configuration and communication properties of a
PROFINET device, allowing TIA Portal to integrate and parameterize third-party devices
seamlessly. An EDS file is used for EtherNet/IP or DeviceNet networks and is not compatible with
the PROFINET standard in TIA Portal. Importing the correct GSD file is a fundamental step in
multi-vendor network configuration to prevent communication errors.
