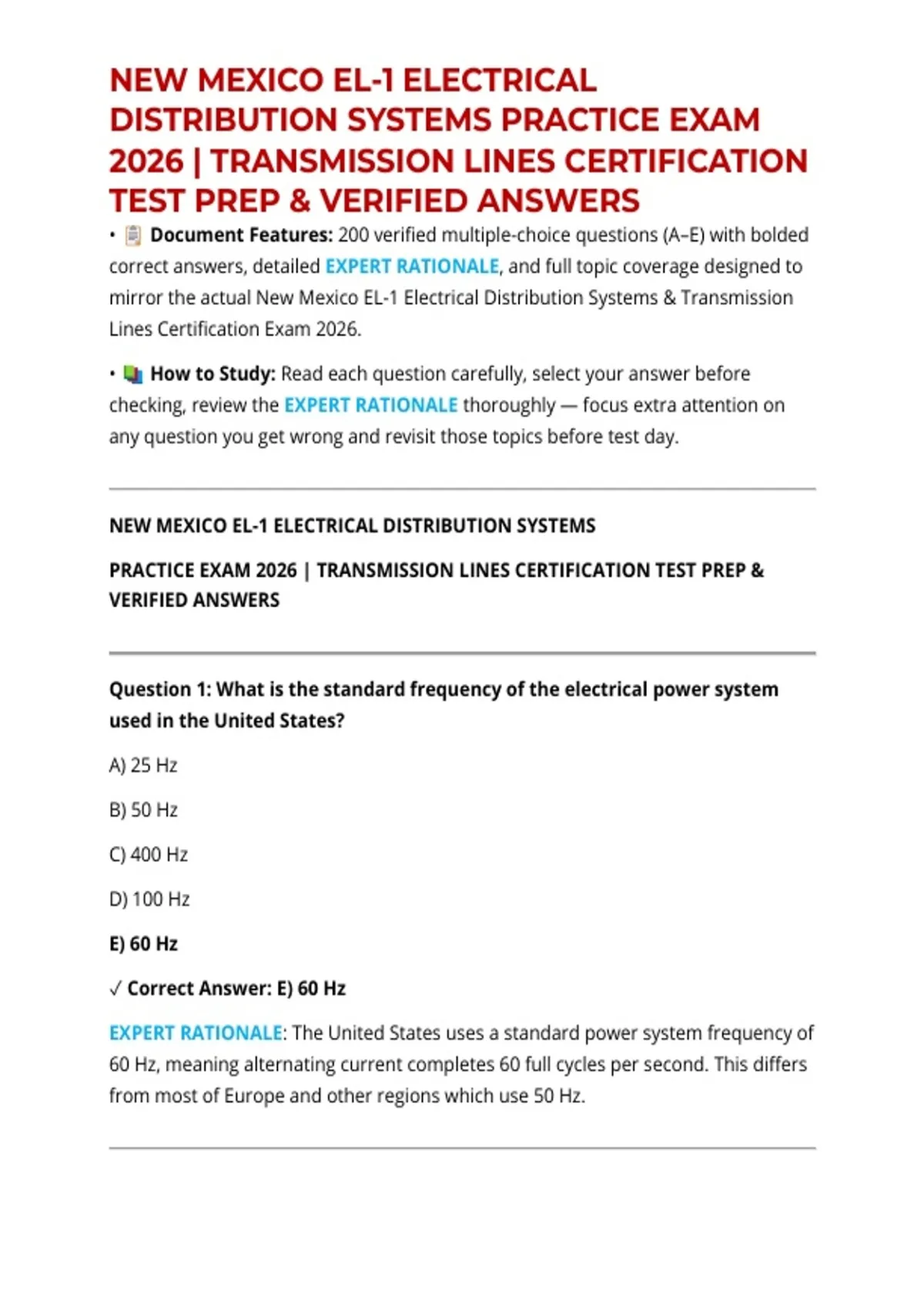

NEW MEXICO EL-1 ELECTRICAL
DISTRIBUTION SYSTEMS PRACTICE EXAM
2026 | TRANSMISSION LINES CERTIFICATION
TEST PREP & VERIFIED ANSWERS
• Document Features: 200 verified multiple-choice questions (A–E) with bolded
correct answers, detailed EXPERT RATIONALE, and full topic coverage designed to
mirror the actual New Mexico EL-1 Electrical Distribution Systems & Transmission
Lines Certification Exam 2026.
• How to Study: Read each question carefully, select your answer before
checking, review the EXPERT RATIONALE thoroughly — focus extra attention on
any question you get wrong and revisit those topics before test day.
NEW MEXICO EL-1 ELECTRICAL DISTRIBUTION SYSTEMS
PRACTICE EXAM 2026 | TRANSMISSION LINES CERTIFICATION TEST PREP &
VERIFIED ANSWERS
Question 1: What is the standard frequency of the electrical power system
used in the United States?
A) 25 Hz
B) 50 Hz
C) 400 Hz
D) 100 Hz
E) 60 Hz
✓ Correct Answer: E) 60 Hz
EXPERT RATIONALE: The United States uses a standard power system frequency of
60 Hz, meaning alternating current completes 60 full cycles per second. This differs
from most of Europe and other regions which use 50 Hz.
,Question 2: Which of the following best describes a distribution system in
electrical power delivery?
A) The system that generates electricity at power plants
B) The high-voltage transmission network connecting generating stations
C) The underground cable system used only in urban areas
D) The network that delivers electricity from substations to end users
E) The metering system used to measure consumer usage
✓ Correct Answer: D) The network that delivers electricity from substations to
end users EXPERT RATIONALE: The distribution system is the final stage in
electricity delivery, taking power from distribution substations and delivering it to
homes, businesses, and other consumers at utilization voltages.
Question 3: What is the typical voltage range for primary distribution lines in
the United States?
A) 120 V to 240 V
B) 240 V to 480 V
C) 4 kV to 35 kV
D) 100 kV to 200 kV
E) 500 kV to 765 kV
✓ Correct Answer: C) 4 kV to 35 kV EXPERT RATIONALE: Primary distribution lines
typically operate between 4 kV and 35 kV. Common voltages include 4.16 kV, 12.47
kV, 13.8 kV, and 34.5 kV, which carry power from substations to distribution
transformers.
Question 4: In Ohm's Law, which formula correctly expresses voltage?
A) V = I / R
,B) V = R / I
C) V = P × I
D) V = I × R
E) V = P / R
✓ Correct Answer: D) V = I × R EXPERT RATIONALE: Ohm's Law states that voltage
(V) equals current (I) multiplied by resistance (R). This fundamental relationship
governs behavior in all resistive electrical circuits.
Question 5: Which conductor material is most commonly used in overhead
transmission lines due to its strength-to-weight ratio?
A) Copper
B) Aluminum alloy
C) Steel
D) ACSR (Aluminum Conductor Steel Reinforced)
E) Copper-clad steel
✓ Correct Answer: D) ACSR (Aluminum Conductor Steel Reinforced) EXPERT
RATIONALE: ACSR combines the conductivity of aluminum with the tensile strength
of a steel core, making it ideal for long-span overhead transmission and distribution
lines where both electrical performance and mechanical strength are required.
Question 6: What is the purpose of a distribution transformer?
A) To increase transmission voltage for long-distance transport
B) To measure power consumption at the customer meter
C) To step down primary voltage to utilization voltage for end users
D) To protect the line from lightning strikes
E) To switch circuits on and off during normal operation
, ✓ Correct Answer: C) To step down primary voltage to utilization voltage for
end users EXPERT RATIONALE: Distribution transformers reduce the high primary
voltage (e.g., 12.47 kV) to the lower utilization voltages (120/240 V single-phase or
120/208 V three-phase) used by residential and commercial customers.
Question 7: What does the term "sag" refer to in overhead line construction?
A) The voltage drop across a long conductor
B) The current capacity of the conductor
C) The vertical distance between the conductor and the straight line between
supports
D) The insulation thickness on a cable
E) The angle of the transmission tower
✓ Correct Answer: C) The vertical distance between the conductor and the
straight line between supports EXPERT RATIONALE: Sag is the maximum
perpendicular distance measured between the conductor and the imaginary
straight line connecting the two support points. Proper sag calculations ensure
adequate ground clearance under all temperature and load conditions.
Question 8: Which NESC rule governs the minimum ground clearance for
energized conductors over roadways?
A) Article 100
B) Rule 232
C) Rule 015
D) Rule 410
E) Article 300
✓ Correct Answer: B) Rule 232 EXPERT RATIONALE: NESC Rule 232 specifies the
minimum vertical clearance requirements for overhead conductors over roads,
