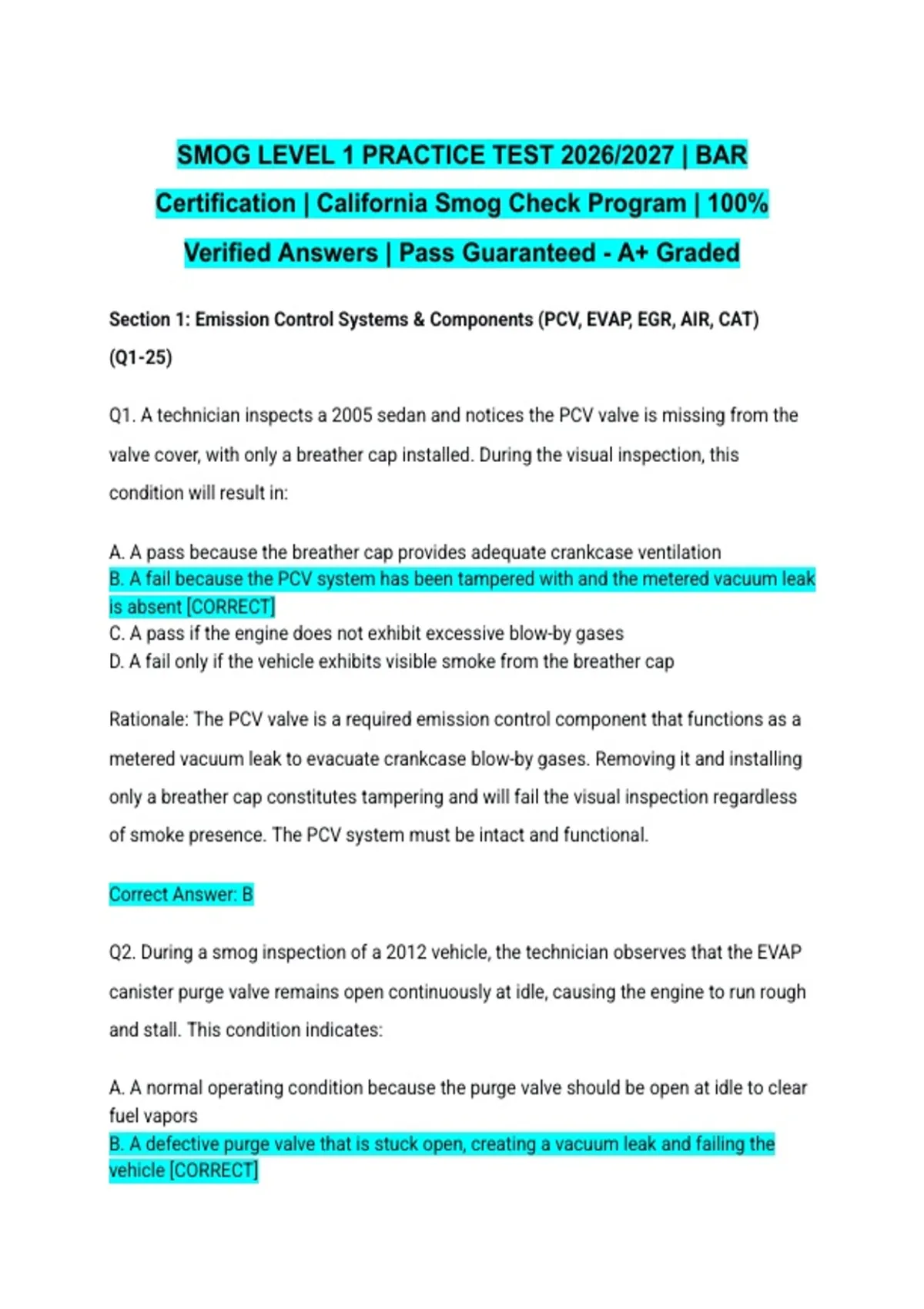

SMOG LEVEL 1 PRACTICE TEST 2026/2027 | BAR
Certification | California Smog Check Program | 100%
Verified Answers | Pass Guaranteed - A+ Graded
Section 1: Emission Control Systems & Components (PCV, EVAP, EGR, AIR, CAT)
(Q1-25)
Q1. A technician inspects a 2005 sedan and notices the PCV valve is missing from the
valve cover, with only a breather cap installed. During the visual inspection, this
condition will result in:
A. A pass because the breather cap provides adequate crankcase ventilation
B. A fail because the PCV system has been tampered with and the metered vacuum leak
is absent [CORRECT]
C. A pass if the engine does not exhibit excessive blow-by gases
D. A fail only if the vehicle exhibits visible smoke from the breather cap
Rationale: The PCV valve is a required emission control component that functions as a
metered vacuum leak to evacuate crankcase blow-by gases. Removing it and installing
only a breather cap constitutes tampering and will fail the visual inspection regardless
of smoke presence. The PCV system must be intact and functional.
Correct Answer: B
Q2. During a smog inspection of a 2012 vehicle, the technician observes that the EVAP
canister purge valve remains open continuously at idle, causing the engine to run rough
and stall. This condition indicates:
A. A normal operating condition because the purge valve should be open at idle to clear
fuel vapors
B. A defective purge valve that is stuck open, creating a vacuum leak and failing the
vehicle [CORRECT]
,C. A properly functioning EVAP monitor completing its diagnostic cycle
D. An overfilled fuel tank causing excessive vapor pressure
Rationale: The EVAP purge valve is normally closed at idle and opens only during
specific purge cycles when the engine is off-idle. A stuck-open purge valve creates a
constant vacuum leak, causing lean running conditions and is an emissions-related
failure. The canister does not purge at idle under normal operation.
Correct Answer: B
Q3. A 2008 vehicle stores a P0456 DTC (EVAP very small leak detected). The technician
connects a smoke machine and observes smoke escaping from the fuel filler neck area.
The most likely cause is:
A. A ruptured charcoal canister
B. A defective purge valve stuck in the open position
C. A faulty fuel cap seal or missing fuel cap [CORRECT]
D. A disconnected canister vent solenoid electrical connector
Rationale: P0456 indicates a very small leak (typically 0.020"-0.040") in the EVAP
system. Smoke escaping from the fuel filler neck indicates a seal failure at the cap,
which is the most common cause of small EVAP leaks. A ruptured canister would likely
cause a larger leak; a stuck-open purge valve would set different codes; a disconnected
vent solenoid connector would cause electrical codes and larger leaks.
Correct Answer: C
Q4. A technician is diagnosing a P0401 (insufficient EGR flow) on a 2004 Ford with a
DPFE sensor. The scan tool shows abnormally low DPFE voltage during EGR command.
The most likely cause is:
A. A stuck-open EGR valve causing excessive flow
B. Carbon clogging in the EGR passages or a restricted orifice [CORRECT]
,C. A short to ground in the DPFE sensor signal circuit
D. Excessive exhaust backpressure due to a restricted catalytic converter
Rationale: P0401 indicates insufficient EGR flow. Low DPFE voltage during commanded
EGR operation indicates minimal pressure differential across the EGR orifice, consistent
with carbon blockage in EGR passages. A stuck-open valve would cause excessive flow
(P0402); a short to ground would show near-zero voltage constantly; excessive
backpressure would typically affect all engine operations, not just EGR flow.
Correct Answer: B
Q5. A vehicle with a positive backpressure EGR valve is tested. The technician notes the
valve opens only when exhaust backpressure is sufficient to overcome the internal
diaphragm spring. This type of EGR valve is controlled by:
A. Engine vacuum only, regardless of exhaust pressure
B. A combination of engine vacuum and exhaust backpressure [CORRECT]
C. A digital signal from the PCM without vacuum assistance
D. Exhaust pressure alone without any vacuum signal
Rationale: Positive backpressure EGR valves require both engine vacuum (to actuate the
diaphragm) and sufficient exhaust backpressure (to overcome the internal valve spring
and open the exhaust port). Vacuum alone cannot open the valve if exhaust
backpressure is insufficient; digital EGR valves are electronically controlled; exhaust
pressure alone cannot actuate the diaphragm without vacuum.
Correct Answer: B
Q6. During an EVAP system functional test on a vehicle with a leak detection pump
(LDP), the technician observes the pump runs continuously but cannot achieve the
required test pressure. This indicates:
A. A properly sealed EVAP system reaching target pressure
, B. A leak in the EVAP system exceeding the calibrated leak size [CORRECT]
C. A defective LDP that is pumping in the wrong direction
D. Normal operation during a cold-start drive cycle
Rationale: The LDP cycles to pressurize the EVAP system to a calibrated test pressure.
If the pump runs continuously without reaching target pressure, the system cannot hold
pressure due to a leak exceeding the calibrated threshold (typically 0.020"-0.040"). A
sealed system would allow the pump to reach pressure and cycle off; LDP direction is
fixed by design.
Correct Answer: B
Q7. A 2015 vehicle utilizes a Natural Vacuum Leak Detection (NVLD) system. The
diagnostic strategy relies on:
A. An electric pump pressurizing the fuel tank to detect leaks
B. The natural vacuum created in the fuel tank as it cools after engine shutdown to
detect leaks [CORRECT]
C. A continuous purge flow measurement during engine operation
D. An ultrasonic sensor detecting vapor leaks in the EVAP hoses
Rationale: NVLD systems use a diaphragm and switch that detects the natural vacuum
(negative pressure) created in a sealed fuel tank as it cools after engine shutdown. A
leak prevents this vacuum from forming. LDP systems use pumps; continuous purge
flow measurement is not NVLD; ultrasonic detection is not used in production EVAP
systems.
Correct Answer: B
Q8. A technician inspects the AIR system on a 2000 GM vehicle and discovers the
upstream check valve is missing. Without this valve, during deceleration the most likely
consequence is:
