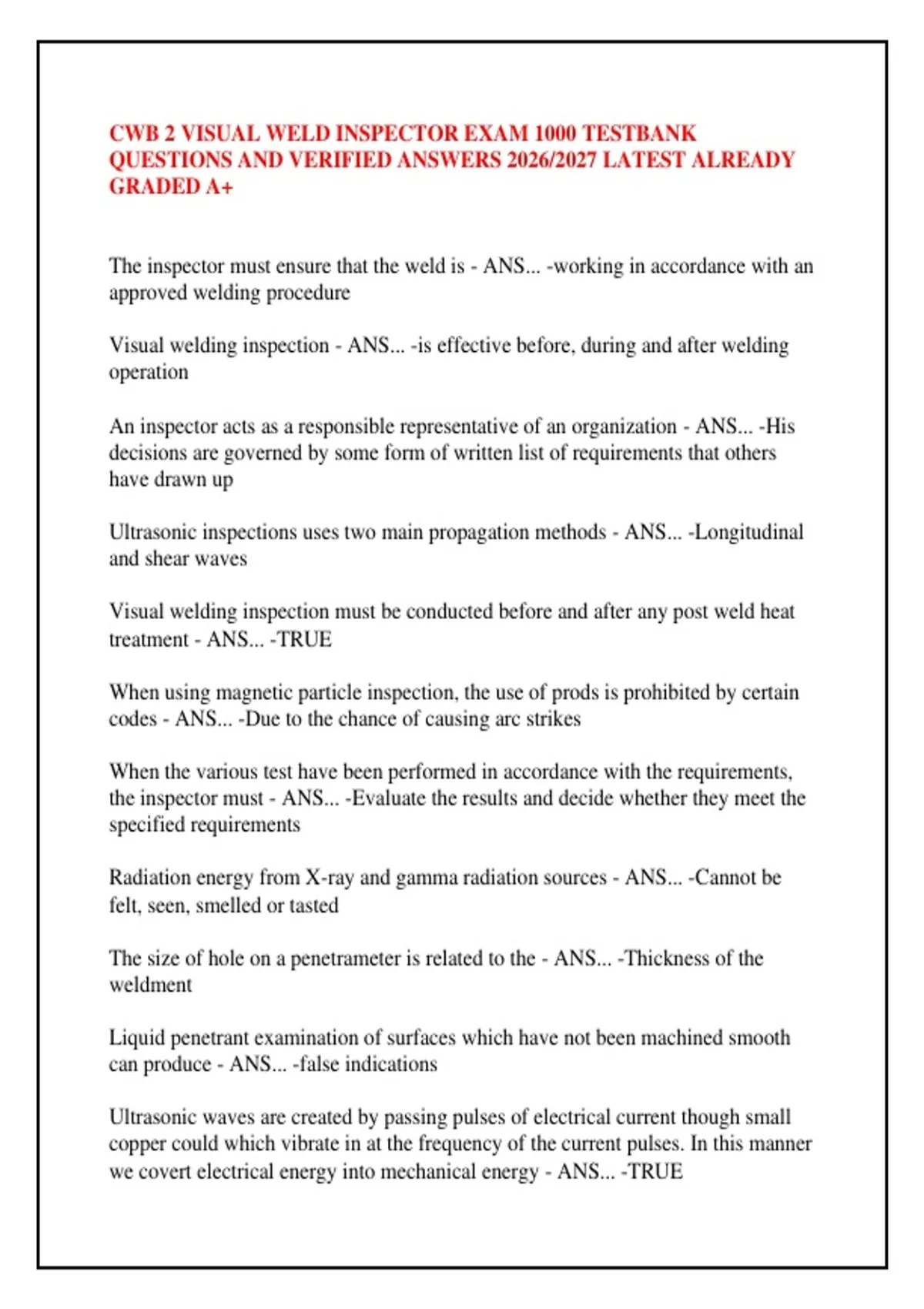

CWB 2 VISUAL WELD INSPECTOR EXAM 1000 TESTBANK
QUESTIONS AND VERIFIED ANSWERS 2026/2027 LATEST ALREADY
GRADED A+
The inspector must ensure that the weld is - ANS... -working in accordance with an
approved welding procedure
Visual welding inspection - ANS... -is effective before, during and after welding
operation
An inspector acts as a responsible representative of an organization - ANS... -His
decisions are governed by some form of written list of requirements that others
have drawn up
Ultrasonic inspections uses two main propagation methods - ANS... -Longitudinal
and shear waves
Visual welding inspection must be conducted before and after any post weld heat
treatment - ANS... -TRUE
When using magnetic particle inspection, the use of prods is prohibited by certain
codes - ANS... -Due to the chance of causing arc strikes
When the various test have been performed in accordance with the requirements,
the inspector must - ANS... -Evaluate the results and decide whether they meet the
specified requirements
Radiation energy from X-ray and gamma radiation sources - ANS... -Cannot be
felt, seen, smelled or tasted
The size of hole on a penetrameter is related to the - ANS... -Thickness of the
weldment
Liquid penetrant examination of surfaces which have not been machined smooth
can produce - ANS... -false indications
Ultrasonic waves are created by passing pulses of electrical current though small
copper could which vibrate in at the frequency of the current pulses. In this manner
we covert electrical energy into mechanical energy - ANS... -TRUE
,In gamma radiography, colbalt-60 has wave lengths much shorter than Iridium-192
and therefore - ANS... -Has more penetrating power
Magnetic particle examination is well suited to detecting crack in - ANS... -Carbon
steel weldments
It is the inspectors responsibility to judge the acceptability of repaired welds -
ANS... -TRUE
Examination methods can be divided up into two groups; destructive and non-
destructive. Non-destructive examination methods include - ANS... -Radiographic,
ultrasonic, magnetic particle, liquid penetrant
Micro cracks may be revealed wit the liquid penetrant test method using - ANS... -
Fluorescent dye
It is essential that the inspector (Blank) when applying visual or other inspection
procedures and when assessing the acceptability of welding - ANS... -Be fair and
endeavor to exercise sound judgement
When performing an evaluation of a part using magnetic particle examination -
ANS... -Magnetic particle examination can only reveal surface discontinuities -
disruptions in the continuity of the material under examination cause distortions in
the induced magnetic field which force the particle towards it
The following plays an important role in an inspector's ability to adequately
perform his/her job - ANS... -Eyesight
Materials for which magnetic particle inspection may be performed on include -
ANS... -Carbon steel, martensitic stainless steel, ferrtic stainless steel.
Weld defects such as (blanks) may not be detected by radiography if the beam of
radiation is not directed into the plane - ANS... -Incomplete fusion
Gamma-radiographic techniques employ the use of - ANS... -Naturally occurring
substances which emit short wave lengths electromagnetic radiation
Welding inspection should begin - ANS... -prior to the actual fabrication process
,Because of the variety of welded structures requiring inspection, an inspector is
required to be proficient in all types of inspection - ANS... -false
A consumable electrode is: - ANS... -AN electrode which melts and provides metal
to fill the joint
The weld heat affected zone is: - ANS... -the portion of the base metal adjacent to
the weld metal whose properties have been changed due to the heat of welding
When an arc is formed between two electrodes - ANS... -electricity flows from
negative cathode to positive anode
The magnetic pinch force helps in the process of the detaching the molten metal
drops from the electrode tip. The magnetic force - ANS... -increases as the square
of the current causing smaller and smaller droplets to be detached
The electric current for welding must be transformed from - ANS... -High voltage,
low amperage to low voltage, high amperage
The major advantage of electron beam welding process is - ANS... -full penetration
welds on thick material in one pass
The progress of welding with Electroslag welding process is - ANS... -Vertical up
Explosion welding - ANS... -is solid state process in which coalescence is
produced through high speed impacting of two or more materials by controlled
detonation
A typical application for thermite welding is - ANS... -joining of rails
Welding without filler metal with GTAW process is referred to as - ANS... -
autogenous welding
A typical weld flaw associated with GTAW process is - ANS... -porosity
SMAW power sources typically have a volt-ampere curve that is - ANS... -
drooping
Once a box of E49XX low hydrogen electrodes has been opened the electrodes
may remain at ambient temperature for up to a maximum of - ANS... -4 hours
, Shielded Metal ARC Welding (SMAW) process - ANS... -establishes an arc
between the end of a covered electrode and the work piece.
The spray mode of metal transfer is achieved with - ANS... -high amperage, high
voltage and argon-rich shielding gas
digital wire feeders - ANS... -have feedback systems to maintain the preset wire
feed speed
wire designated by CSA standard W48 as an E491T-9MJ-H8 - ANS... -Results in
weld deposit with a maximum of 8 ml diffusible hydrogen per 100 g of weld metal
Self shield flux cored wires are - ANS... -better able to tolerate air currents
The AWS classes metal cored wire along with - ANS... -solid wires
SAW Fluxes that significantly influence the composition of the weld metal through
slag/metal reactions are called - ANS... -active
Resistance welding of aluminum - ANS... -Can be done but with greater difficulty
due to its low resistivity
The plasma arc welding process is similar to what other welding process in
principles of operation - ANS... -GTAW
For a flat weld profile and good penetration profile using the MCAW process -
ANS... -15 degree travel angle using push technique should be used
What is the effect of tip to work distance (electrical sickout on deposition rate of
submerged are welding - ANS... -decreasing tip to work distance without adjusting
any other variable will cause a increase in deposition rate
Electrode stick out is measured - ANS... -From tip of nozzle to end of electrode
Contact tip-to-work is the sum (CTTW) - ANS... -of the electrode extension and
arc length
Increasing electrical sickout - ANS... -decreases voltage, decreases current and
increases resistance
