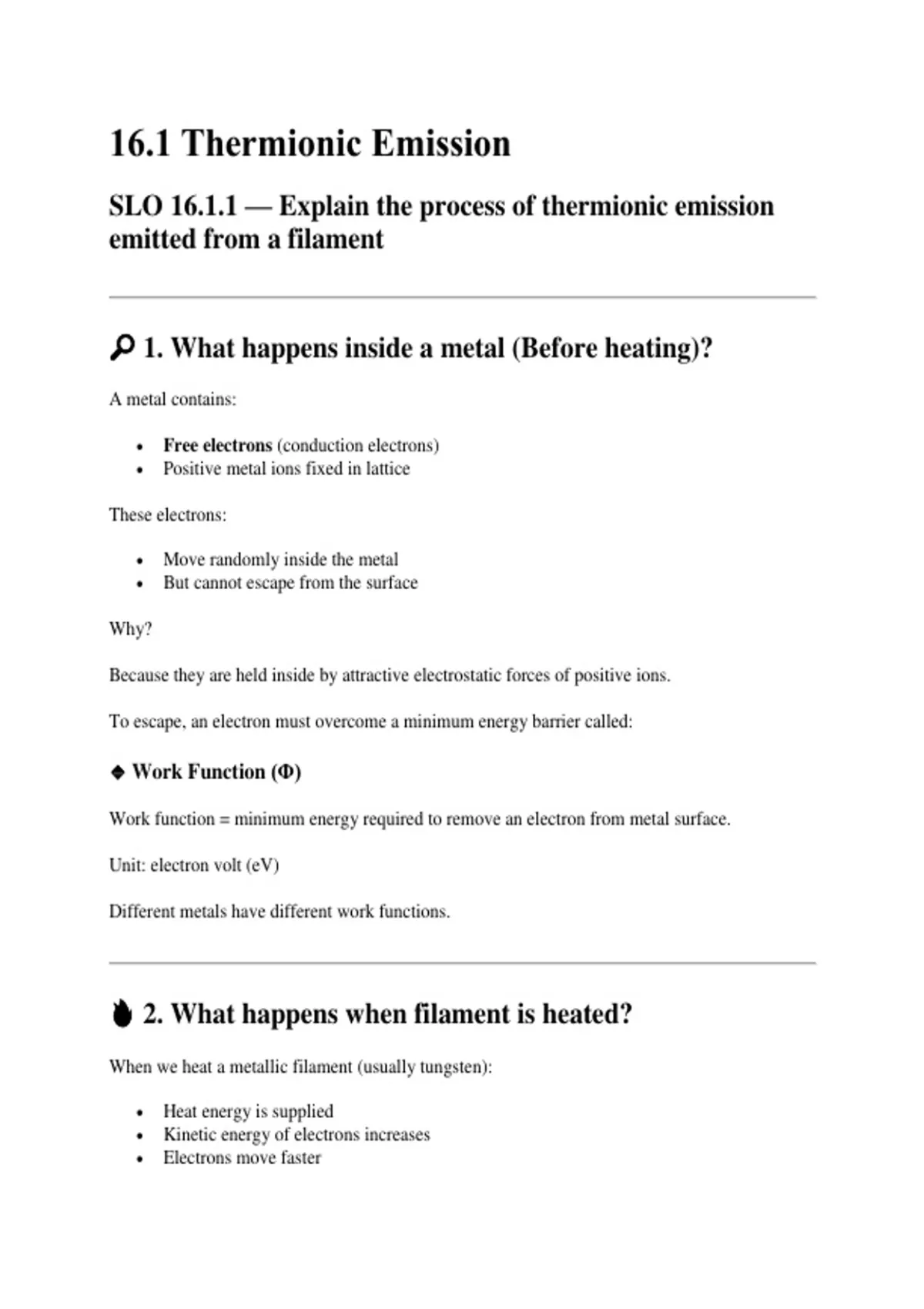

16.1 Thermionic Emission
SLO 16.1.1 — Explain the process of thermionic emission
emitted from a filament
🔎 1. What happens inside a metal (Before heating)?
A metal contains:
Free electrons (conduction electrons)
Positive metal ions fixed in lattice
These electrons:
Move randomly inside the metal
But cannot escape from the surface
Why?
Because they are held inside by attractive electrostatic forces of positive ions.
To escape, an electron must overcome a minimum energy barrier called:
🔹 Work Function (Φ)
Work function = minimum energy required to remove an electron from metal surface.
Unit: electron volt (eV)
Different metals have different work functions.
🔥 2. What happens when filament is heated?
When we heat a metallic filament (usually tungsten):
Heat energy is supplied
Kinetic energy of electrons increases
Electrons move faster
, Some electrons gain enough energy to overcome work function
Those electrons escape from the surface.
This emission of electrons due to heating is called:
✅ Thermionic Emission
⚡ Step-by-Step Process
1. Filament is connected to power supply.
2. Current flows → filament becomes hot.
3. Thermal energy increases electron kinetic energy.
4. Some electrons overcome work function.
5. Electrons leave surface into surrounding space (vacuum).
🎯 Important Conditions
1⃣ High Temperature Required
,Higher temperature → more electrons emitted.
2️⃣ Low Work Function Metal Preferred
Lower work function → easier emission.
Example metals:
Tungsten (high melting point)
Oxide-coated cathodes (lower work function)
3️⃣ Vacuum Required
Why vacuum?
If air is present:
Emitted electrons collide with air molecules
Energy is lost
Beam cannot form properly
So thermionic emission occurs inside vacuum tubes.
🧠 Deep Conceptual Understanding (AKUEB Level)
🔹 Does heating create electrons?
No.
Electrons already exist in metal.
Heating only gives them energy to escape.
🔹 Does increasing voltage cause thermionic emission?
No.
Temperature controls emission.
Voltage only attracts emitted electrons.
🔹 What if temperature increases?
, Number of emitted electrons increases.
Emission rate increases exponentially.
🔹 What if work function increases?
Harder for electrons to escape.
Emission decreases.
📊 Relationship Concept
Emission depends on:
Temperature (T)
Work function (Φ)
Higher T → More emission
Higher Φ → Less emission
🔬 Why Tungsten Filament?
Very high melting point (~3400°C)
Can withstand high temperature
Strong metal
⚠️ Very Important Differences
Thermionic emission ≠ Photoelectric effect
Thermionic Emission Photoelectric Effect
Caused by heat Caused by light
Depends on temperature Depends on frequency
Used in vacuum tubes Used in solar cells
AKUEB loves this comparison.
