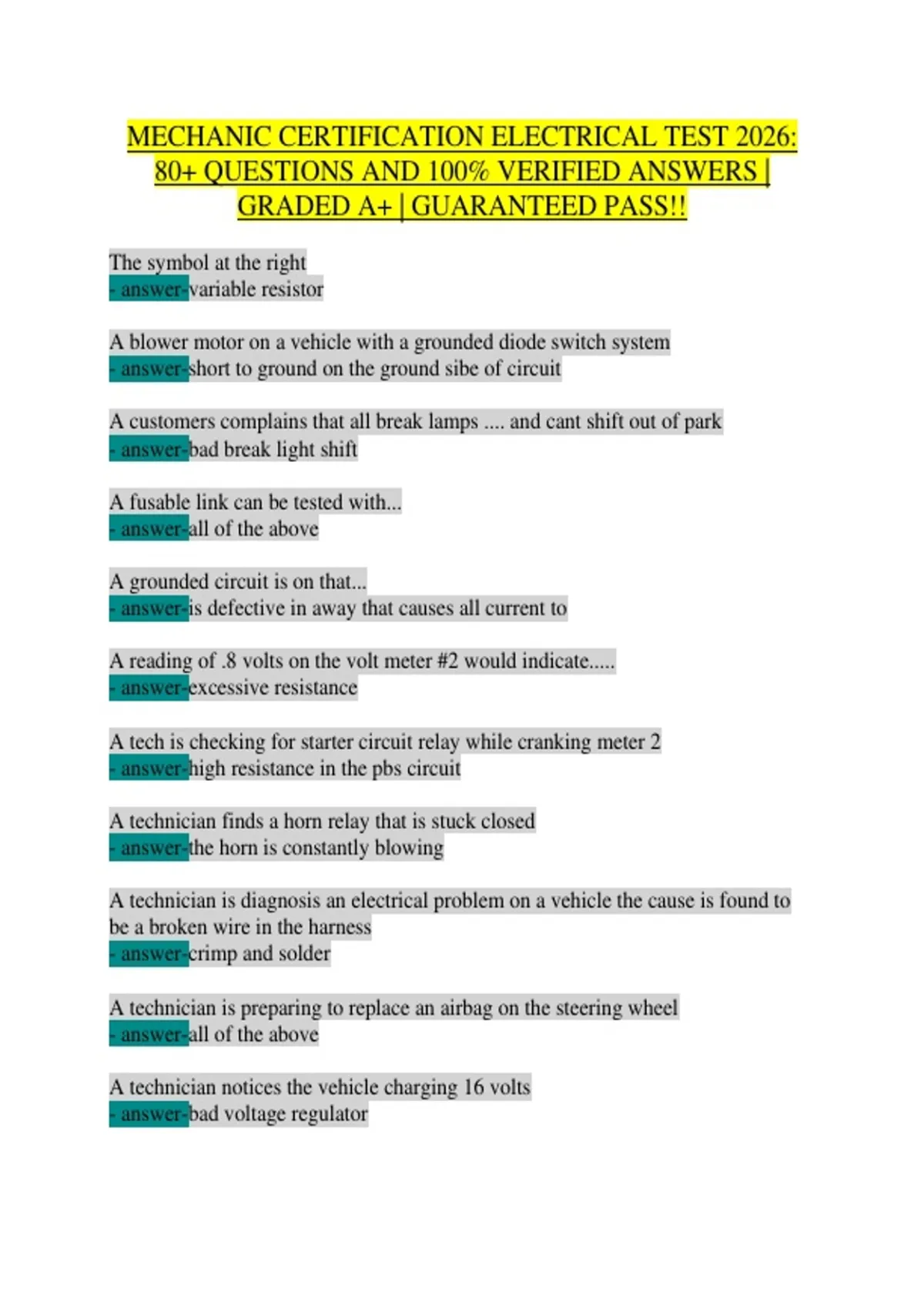

Mechanic Certification Electrical Test 2026 | Starter Draw, Voltage Drop, Blower Motor, Relay Circuits, Ohmmeter Use & 80+ Q&A (100% Verified) | Automotive Electrical Technician Prep

"MY BLOWER MOTOR ONLY WORKS ON HIGH!" – You already KNOW that answer, right? (Spoiler: Blower resistor). Are you an Automotive Technician, Diesel Mechanic, or ASE A6 candidate who needs to pass the Electrical Certification Test in 2026? This is your MECHANIC'S CHEAT SHEET – 80+ exam-style questions with 100% VERIFIED ANSWERS that mirror what the PROCTOR will ask. No theory fluff. Just the electrical DIAGNOSTICS that separate a 15 / h r l u b e t e c h f r o m a 15/hrlubetechfroma40/hr master tech. What you will MASTER (these are ACTUAL test questions): BLOWER MOTOR & HVAC: Blower motor only works on high? → Blower resistor (Pg. 2) Replaced blower motor, spins but no air? → Reversed polarity (Pg. 2) As blower speed decreases, voltage drop across resistance block? → Increases (Pg. 2) STARTER & CHARGING: Starter current draw test – low current draw? → High resistance (Pg. 5) Slow crank but fully charged battery? → Faulty starter (Pg. 6-7) Charging system positive side voltage drop max? → 0.7 volts (Pg. 2) Full field test bypasses? → Voltage regulator (Pg. 2) METER CONNECTIONS (THIS IS WHERE STUDENTS FAIL): Ammeter connection? → In series with the load (Pg. 2) Voltmeter connection? → In parallel (Pg. 5, 7) Ohmmeter measures? → Resistance (Pg. 2, 6) Ohmmeter polarity rule? → Can be connected without regard to polarity (unless circuit contains a diode) (Pg. 2) CIRCUIT DIAGNOSTICS: Short to ground will cause? → Blown fuse (Pg. 5, 6-7) Open circuit results in? → No current flow (Pg. 5, 6) Jumper wire used to jump A and B? → Nothing (Pg. 3) Voltage drop test – current must be? → Closed (Pg. 4) NTC type sensor – as temperature rises, resistance? → Increases (Pg. 3) RELAYS, DIODES & SYMBOLS: Symbol at the right (arrow with line)? → Diode (Pg. 4) Symbol at the RIGHT (coil + switch)? → Relay (Pg. 4) Purpose of a relay? → Control high power circuit with low power signal (Pg. 6, 7) Diode used to isolate? → Both A and B are correct (Pg. 3) DRAWINGS & DIAGRAMS: Dot at intersection in conventional wiring diagram? → Splice (Pg. 3) Wiring diagram helps technicians? → Locate components and trace circuits (Pg. 6) Turn signal only operates for right turn? → Defective bulb (Pg. 4) COMPUTER & SENSORS: Device used to monitor throttle position? → Potentiometer (Pg. 5) Diagnose on-board microcomputer? → High impedance digital diagnostic instrument (Pg. 4) Component damaged by electrostatic discharge? → All of the above (Pg. 5) BONUS: New battery installation – how long to wait for PCM learning? → No need to wait (Pg. 2) After installing new battery? → NO WAIT required. (Many techs get this WRONG.) This mirrors the 2026 ASE A6 (Electrical/Electronic Systems), State Certification, and Dealership Technician exams.
