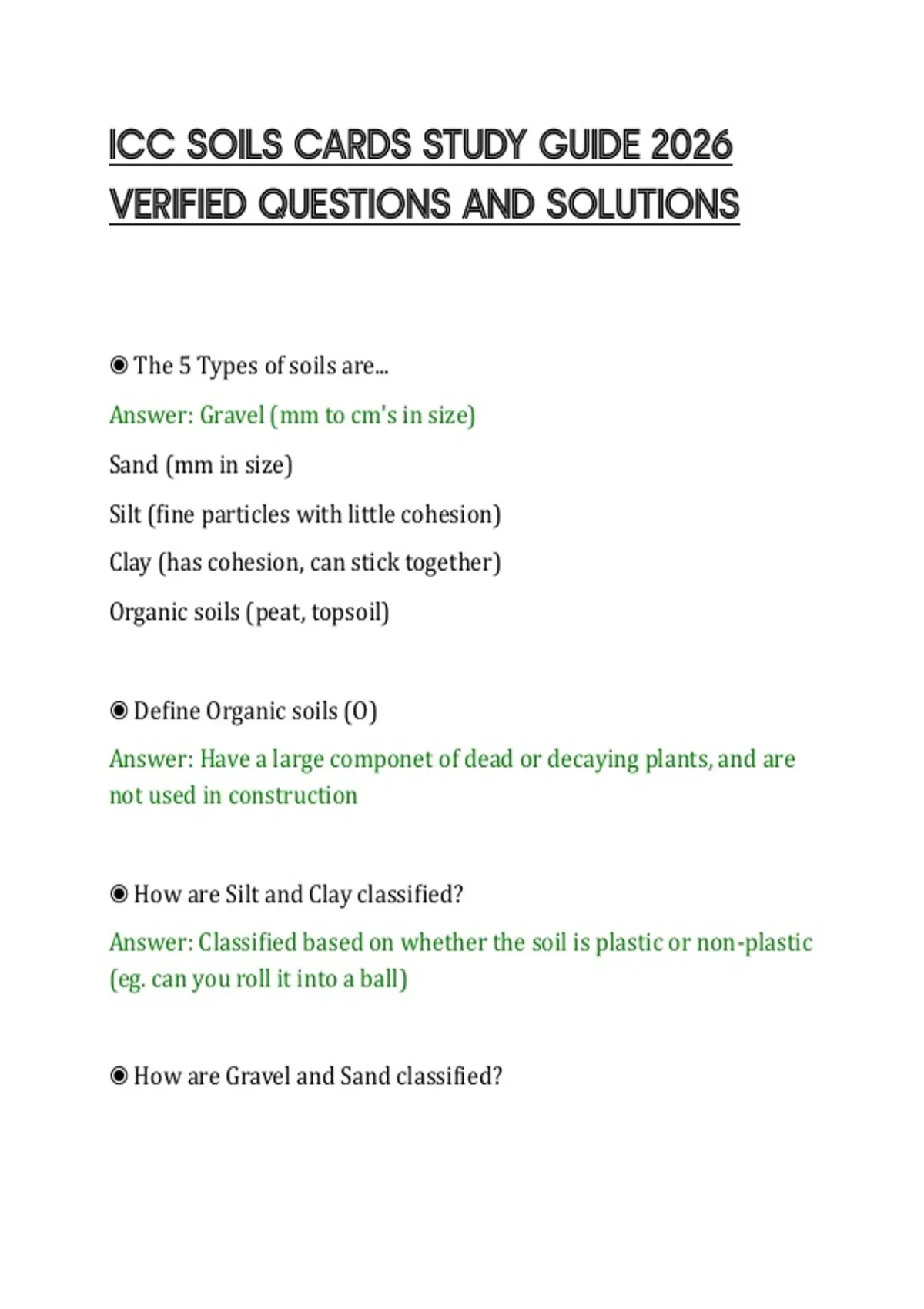

ICC SOILS CARDS STUDY GUIDE 2026
VERIFIED QUESTIONS AND SOLUTIONS
◉ The 5 Types of soils are...
Answer: Gravel (mm to cm's in size)
Sand (mm in size)
Silt (fine particles with little cohesion)
Clay (has cohesion, can stick together)
Organic soils (peat, topsoil)
◉ Define Organic soils (O)
Answer: Have a large componet of dead or decaying plants, and are
not used in construction
◉ How are Silt and Clay classified?
Answer: Classified based on whether the soil is plastic or non-plastic
(eg. can you roll it into a ball)
◉ How are Gravel and Sand classified?
,Answer: are classified based on whether or not all the particle are
roughly the same size(uniform, like a beach) or if there is large
variety in particle size (well-graded)
◉ Soil layers
Answer: 1. (complex zone) 3 to 4m
2. (glacio-lacustrine clay) 2-12m
3. Glacial till, up to 9m in thickness
4. Carbonate bedrock, the upper surface of which is often fractured,
weathers and irrgular
◉ What are the 2 components of Soil strength?
Answer: Cohesion (clay only)
Friction (when individual soil grains move across on another)
◉ Soil fail by
Answer: shear
◉ Soil strength is used to determine which 2 things?
Answer: The bearing capacity of a foundation
The stability of natural or man-made earth slopes or retaining walls
,◉ Tests for soil strength include;
Answer: unconfined compression test
direct shear test
Triaxial compression
◉ Soil strength depends upon
Answer: Density and moisture content
◉ Unconfined compression test is for what?
Answer: useful for comparing strength of two soils or varion of
strength with dept.
◉ Gradation refers to the range of measured soil particle sizes.
Gradation results in classifying soil as?
Answer: Gravel ( > 2 mm)
Sand (between 0.075 and 2 mm)
Silt (0.002 to 0.075 mm)
Clay (< 0.002 mm)
◉ The particle size distribution of coarse-grained soils is typically
determined by?
Answer: Mechanical sieve analysis
, ◉ The particle size distribution of fine-grained soil is determined
using a ?
Answer: hydrometer analysis
◉ Two parameters help to identify soils that are well-graded?
Answer: The Coefficient of Uniformity (Cu)
The Coefficient of Curvature (Cc)
◉ The hydrometer analysis is used to determine the gradation of
Answer: slit and clay-sized particles.
◉ Only soil particles passing the No. 40 sieve(0.425) are used in the
Answer: hydrometer analysis
◉ Hydrometer readings give us two things?
Answer: The specific gravity, or density, of the fluid tells us the % of
material is still in suspension.
The average downward velosity of the hydrometer can give us the
diameter of the particle hat is just coming out of solution.
