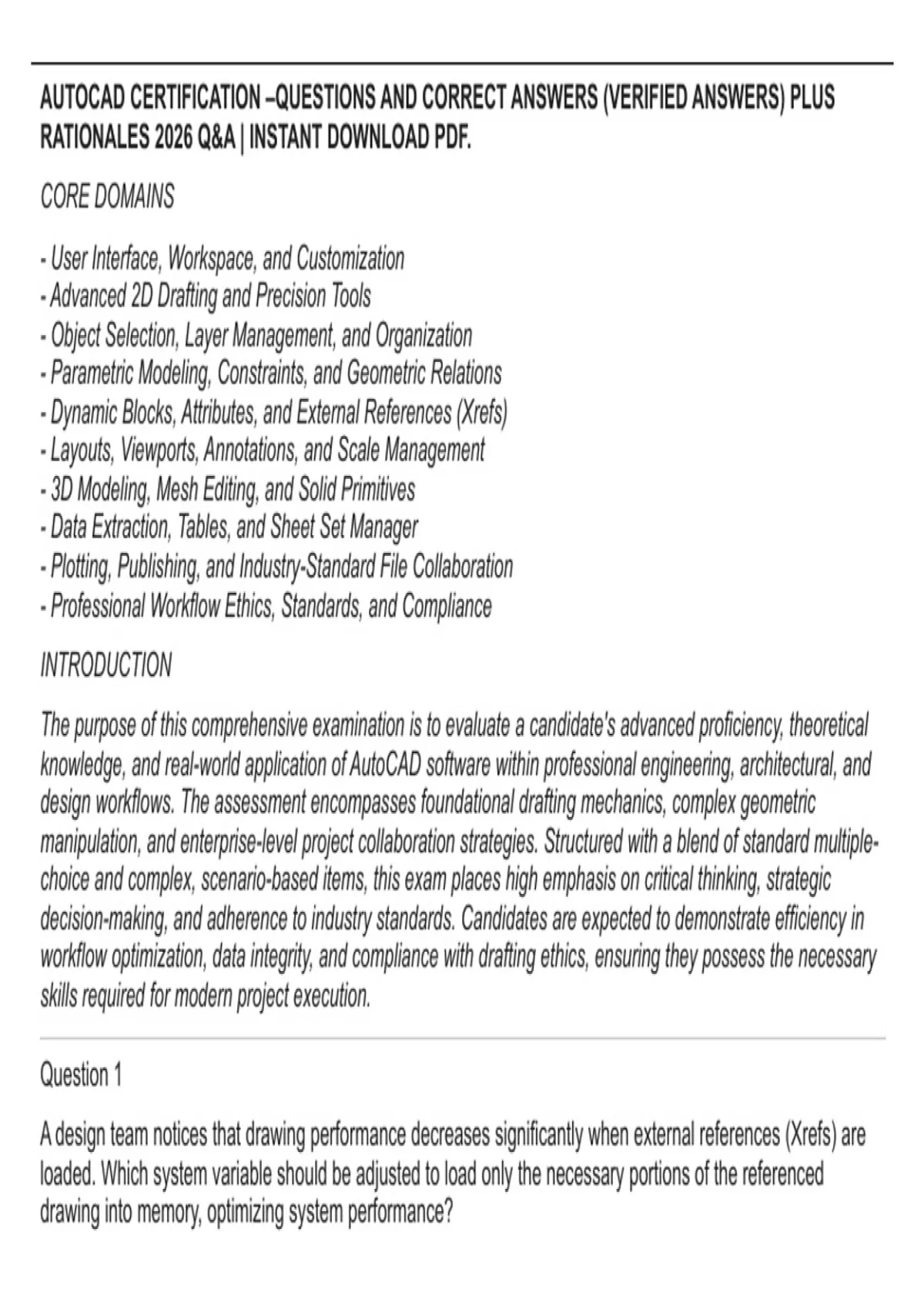

AUTOCAD CERTIFICATION –QUESTIONS AND CORRECT ANSWERS (VERIFIED ANSWERS) PLUS
RATIONALES 2026 Q&A | INSTANT DOWNLOAD PDF.
CORE DOMAINS
- User Interface, Workspace, and Customization
- Advanced 2D Drafting and Precision Tools
- Object Selection, Layer Management, and Organization
- Parametric Modeling, Constraints, and Geometric Relations
- Dynamic Blocks, Attributes, and External References (Xrefs)
- Layouts, Viewports, Annotations, and Scale Management
- 3D Modeling, Mesh Editing, and Solid Primitives
- Data Extraction, Tables, and Sheet Set Manager
- Plotting, Publishing, and Industry-Standard File Collaboration
- Professional Workflow Ethics, Standards, and Compliance
INTRODUCTION
The purpose of this comprehensive examination is to evaluate a candidate's advanced proficiency, theoretical
knowledge, and real-world application of AutoCAD software within professional engineering, architectural, and
design workflows. The assessment encompasses foundational drafting mechanics, complex geometric
manipulation, and enterprise-level project collaboration strategies. Structured with a blend of standard multiple-
choice and complex, scenario-based items, this exam places high emphasis on critical thinking, strategic
decision-making, and adherence to industry standards. Candidates are expected to demonstrate efficiency in
workflow optimization, data integrity, and compliance with drafting ethics, ensuring they possess the necessary
skills required for modern project execution.
Question 1
A design team notices that drawing performance decreases significantly when external references (Xrefs) are
loaded. Which system variable should be adjusted to load only the necessary portions of the referenced
drawing into memory, optimizing system performance?
,A. XLOADCTL
B. INDEXCTL
C. DEMANDLOAD
D. XREGISTRY
🟢 Correct answer: A
🔴 RATIONALE: The XLOADCTL system variable controls demand loading of external references. When set to
2, it copies the referenced file into a temporary directory, allowing the original file to remain editable by others
while optimizing system memory usage by loading only the clipped portions or specific layers required for the
current session.
Question 2
An operator needs to create a series of concentric circles with precise, uniform spacing without modifying the
original source object's geometry. Which command is most appropriate?
A. ARRAY
B. COPY
C. OFFSET
D. SCALE
🟢 Correct answer: C
🔴 RATIONALE: The OFFSET command is specifically designed to create parallel or concentric copies of
objects at a specified distance or through a designated point. It ensures the integrity of the original object
remains intact while preserving perfect geometric parallelism.
Question 3
When working on a multi-disciplinary civil engineering project, an engineer must ensure that all dimensions
automatically update whenever the underlying geometric elements are modified by other team members. Which
feature must be active?
,A. Annotative Scaling
B. Associative Dimensioning
C. Dynamic Input
D. Geometric Constraints
🟢 Correct answer: B
🔴 RATIONALE: Associative dimensioning automatically links dimension objects to the geometric points they
measure. If the geometry is modified, moved, or scaled, the dimension updates its value and position
automatically, preventing drafting discrepancies.
Question 4
A drafter accidentally sets the layer of several structural columns to 'Defpoints'. What will happen when the
drawing sheet is plotted to a physical device or a digital PDF?
A. The objects will print in red regardless of layer settings.
B. The objects will not be visible on the printed sheet.
C. The objects will cause a critical plotting fatal error.
D. The objects will be forced to the topmost printing order.
🟢 Correct answer: B
🔴 RATIONALE: The 'Defpoints' layer is automatically created by AutoCAD for dimension definition points. By
default, this layer is hardcoded to be non-printable. Any user-defined geometry placed on this layer will be
visible on the screen but completely absent from any plotted output.
Question 5
A architectural firm mandates that all multi-view layouts must utilize a standardized border and title block. To
prevent accidental editing of the title block information while editing model geometry, how should the title block
be incorporated?
, A. Inserted as a nested block directly inside Model Space.
B. Inserted directly into Paper Space at a 1:1 scale factor.
C. Exploded within a floating layout viewport.
D. Sketched manually using separate line segments in each layout.
🟢 Correct answer: B
🔴 RATIONALE: Standard industry practice dictates inserting title blocks into Paper Space (Layout) at a 1:1
scale. This isolates the border and title block from the actual architectural model geometry, which is viewed and
manipulated via viewports, ensuring layout consistency and preventing accidental modifications.
Question 6
You receive a file from a external vendor where lines that are supposed to look dashed appear completely solid
in Paper Space layouts, even though they look correct in Model Space. Which variable controls this scaling
across viewports?
A. LTSCALE
B. CELTSCALE
C. PSLTSCALE
D. MSLTSCALE
🟢 Correct answer: C
🔴 RATIONALE: PSLTSCALE controls the linetype scaling of objects displayed in paper space viewports.
When set to 1, linetype scaling is based on paper space units, ensuring consistency across viewports of
different scales.
Question 7
A user wants to restrict a specific geometric profile so that the top and bottom lines always remain parallel to
one another, regardless of how other corners are manipulated. What tool should be applied?
RATIONALES 2026 Q&A | INSTANT DOWNLOAD PDF.
CORE DOMAINS
- User Interface, Workspace, and Customization
- Advanced 2D Drafting and Precision Tools
- Object Selection, Layer Management, and Organization
- Parametric Modeling, Constraints, and Geometric Relations
- Dynamic Blocks, Attributes, and External References (Xrefs)
- Layouts, Viewports, Annotations, and Scale Management
- 3D Modeling, Mesh Editing, and Solid Primitives
- Data Extraction, Tables, and Sheet Set Manager
- Plotting, Publishing, and Industry-Standard File Collaboration
- Professional Workflow Ethics, Standards, and Compliance
INTRODUCTION
The purpose of this comprehensive examination is to evaluate a candidate's advanced proficiency, theoretical
knowledge, and real-world application of AutoCAD software within professional engineering, architectural, and
design workflows. The assessment encompasses foundational drafting mechanics, complex geometric
manipulation, and enterprise-level project collaboration strategies. Structured with a blend of standard multiple-
choice and complex, scenario-based items, this exam places high emphasis on critical thinking, strategic
decision-making, and adherence to industry standards. Candidates are expected to demonstrate efficiency in
workflow optimization, data integrity, and compliance with drafting ethics, ensuring they possess the necessary
skills required for modern project execution.
Question 1
A design team notices that drawing performance decreases significantly when external references (Xrefs) are
loaded. Which system variable should be adjusted to load only the necessary portions of the referenced
drawing into memory, optimizing system performance?
,A. XLOADCTL
B. INDEXCTL
C. DEMANDLOAD
D. XREGISTRY
🟢 Correct answer: A
🔴 RATIONALE: The XLOADCTL system variable controls demand loading of external references. When set to
2, it copies the referenced file into a temporary directory, allowing the original file to remain editable by others
while optimizing system memory usage by loading only the clipped portions or specific layers required for the
current session.
Question 2
An operator needs to create a series of concentric circles with precise, uniform spacing without modifying the
original source object's geometry. Which command is most appropriate?
A. ARRAY
B. COPY
C. OFFSET
D. SCALE
🟢 Correct answer: C
🔴 RATIONALE: The OFFSET command is specifically designed to create parallel or concentric copies of
objects at a specified distance or through a designated point. It ensures the integrity of the original object
remains intact while preserving perfect geometric parallelism.
Question 3
When working on a multi-disciplinary civil engineering project, an engineer must ensure that all dimensions
automatically update whenever the underlying geometric elements are modified by other team members. Which
feature must be active?
,A. Annotative Scaling
B. Associative Dimensioning
C. Dynamic Input
D. Geometric Constraints
🟢 Correct answer: B
🔴 RATIONALE: Associative dimensioning automatically links dimension objects to the geometric points they
measure. If the geometry is modified, moved, or scaled, the dimension updates its value and position
automatically, preventing drafting discrepancies.
Question 4
A drafter accidentally sets the layer of several structural columns to 'Defpoints'. What will happen when the
drawing sheet is plotted to a physical device or a digital PDF?
A. The objects will print in red regardless of layer settings.
B. The objects will not be visible on the printed sheet.
C. The objects will cause a critical plotting fatal error.
D. The objects will be forced to the topmost printing order.
🟢 Correct answer: B
🔴 RATIONALE: The 'Defpoints' layer is automatically created by AutoCAD for dimension definition points. By
default, this layer is hardcoded to be non-printable. Any user-defined geometry placed on this layer will be
visible on the screen but completely absent from any plotted output.
Question 5
A architectural firm mandates that all multi-view layouts must utilize a standardized border and title block. To
prevent accidental editing of the title block information while editing model geometry, how should the title block
be incorporated?
, A. Inserted as a nested block directly inside Model Space.
B. Inserted directly into Paper Space at a 1:1 scale factor.
C. Exploded within a floating layout viewport.
D. Sketched manually using separate line segments in each layout.
🟢 Correct answer: B
🔴 RATIONALE: Standard industry practice dictates inserting title blocks into Paper Space (Layout) at a 1:1
scale. This isolates the border and title block from the actual architectural model geometry, which is viewed and
manipulated via viewports, ensuring layout consistency and preventing accidental modifications.
Question 6
You receive a file from a external vendor where lines that are supposed to look dashed appear completely solid
in Paper Space layouts, even though they look correct in Model Space. Which variable controls this scaling
across viewports?
A. LTSCALE
B. CELTSCALE
C. PSLTSCALE
D. MSLTSCALE
🟢 Correct answer: C
🔴 RATIONALE: PSLTSCALE controls the linetype scaling of objects displayed in paper space viewports.
When set to 1, linetype scaling is based on paper space units, ensuring consistency across viewports of
different scales.
Question 7
A user wants to restrict a specific geometric profile so that the top and bottom lines always remain parallel to
one another, regardless of how other corners are manipulated. What tool should be applied?
