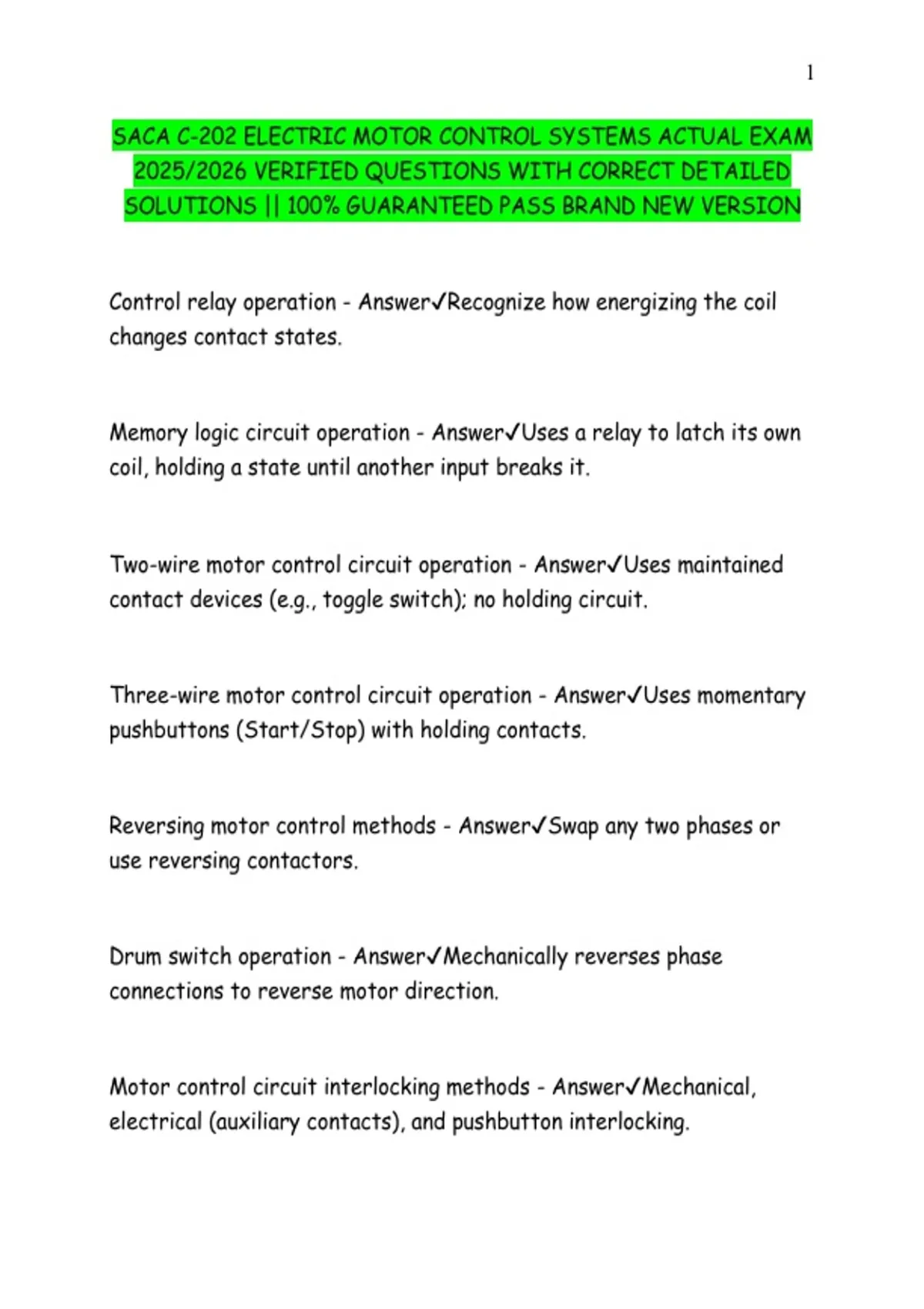

SACA C-202 ELECTRIC MOTOR CONTROL SYSTEMS ACTUAL EXAM 2025/2026 VERIFIED QUESTIONS WITH CORRECT DETAILED SOLUTIONS || 100% GUARANTEED PASS BRAND NEW VERSION

Control relay operation - Answer️Recognize how energizing the coil changes contact states. Memory logic circuit operation - Answer️Uses a relay to latch its own coil, holding a state until another input breaks it. Two-wire motor control circuit operation - Answer️Uses maintained contact devices (e.g., toggle switch); no holding circuit. Three-wire motor control circuit operation - Answer️Uses momentary pushbuttons (Start/Stop) with holding contacts. Reversing motor control methods - Answer️Swap any two phases or use reversing contactors. Drum switch operation - Answer️Mechanically reverses phase connections to reverse motor direction. Motor control circuit interlocking methods - Answer️Mechanical, electrical (auxiliary contacts), and pushbutton interlocking. Forward/reverse motor jog control circuit - Answer️Enables brief, manual movement in both directions using momentary contact buttons. Hand-off-automatic motor control circuit interpretation - Answer️Understand manual/auto modes for user or sensor-controlled starts. Limit switch operation - Answer️Opens or closes contacts when an object physically moves the actuator. Float switch function and operation - Answer️Detects liquid level using a buoyant actuator to open/close electrical contacts. Pressure switch function and operation - Answer️Opens/closes contacts based on sensed fluid pressure. Relay-based sequence control circuit troubleshooting - Answer️Understand logic flow and test relay operations. On-delay timer circuit operation - Answer️Timer delays output activation after coil is energized. Off-delay timer circuit operation - Answer️Output stays energized for a time after coil is de-energized. One-shot timer relay circuit operation - Answer️Provides a single timed pulse when triggered. No-load-at-start motor control circuit operation - Answer️Uses a timer to delay load engagement, reducing start current. Repeat cycle timer circuit operation - Answer️Alternates between ON and OFF for set durations repeatedly. Grounding - Answer️To provide a low-resistance path for fault current, ensuring safety and protecting equipment. Common standards associated with electrical control - Answer️NEMA, IEC, and NEC standards. Ten basic rules of electrical safety - Answer️Includes de-energizing circuits, using PPE, verifying lockout/tagout, testing before touch, and using insulated tools, among others. Lockout/tagout system order - Answer️Notify, shut down, isolate energy, apply LOTO device, release stored energy, and verify zero energy. Three-phase power operation - Answer️Three AC voltages 120° out of phase provide continuous power with higher efficiency. Function of neutral in electrical power - Answer️Serves as a return path for current in unbalanced systems and maintains voltage stability. Using a digital multimeter - Answer️Set the function (volts, ohms, etc.), connect leads properly, and read measurements. Grounded and ungrounded systems - Answer️Grounded systems have one conductor connected to ground for safety; ungrounded systems do not, which can delay fault detection. Overcurrent protection devices - Answer️Fuses melt under excess current; breakers trip; overloads respond to sustained heat or current. Three-phase motor operation - Answer️Uses rotating magnetic fields from three-phase power to turn the rotor. Interpreting motor's nameplate data - Answer️Includes voltage, current, RPM, phase, service factor, and efficiency. Connecting dual-voltage three-phase motor - Answer️Use parallel connection for low voltage (e.g., 230V) and series for high voltage (e.g., 460V). Functions of motor control - Answer️Starting, stopping, reversing, speed control, and overload protection. Motor control relay circuit interpretation - Answer️Understand how control relays activate coils and change contact states to control the motor. Operation of different types of motor starters - Answer️Manual, magnetic, and solid-state starters vary by control type and application. Low-voltage protection - Answer️Shuts off the motor if voltage drops and prevents automatic restart when voltage returns. Types of motor overload devices - Answer️Thermal (bimetallic), magnetic, and electronic overloads. Motor control and transformer schematic symbols - Answer️Symbols represent transformer coils, cores, and taps. Operation of transformers - Answer️Transfers electrical energy between circuits via electromagnetic induction. Turns ratio and secondary voltage of a transformer - Answer️Secondary voltage = (Primary Voltage) × (Secondary Turns / Primary Turns). Function of an electrical schematic diagram - Answer️Visually represents how components are connected and function. Testing a transformer - Answer️How do you test a transformer? Multimeter - Answer️Use a multimeter to check for continuity and correct output voltage. Transformer sizing - Answer️Use the formula: VA = Voltage × Current. Types of electrical control systems - Answer️Manual, automatic, and semi-automatic systems. Control process steps - Answer️Input → Logic → Output. Ladder diagram interpretation - Answer️Understand rungs, logic elements, and power flow left to right. Rules of drawing a ladder diagram - Answer️Include power rails, left-to-right logic, one output per rung, label components, no crossings, logical sequence. Elements of control logic - Answer️AND, OR, NOT, NOR, NAND, and memory logic. Control circuit design - Answer️Translate process needs into ladder logic and validate operation.
