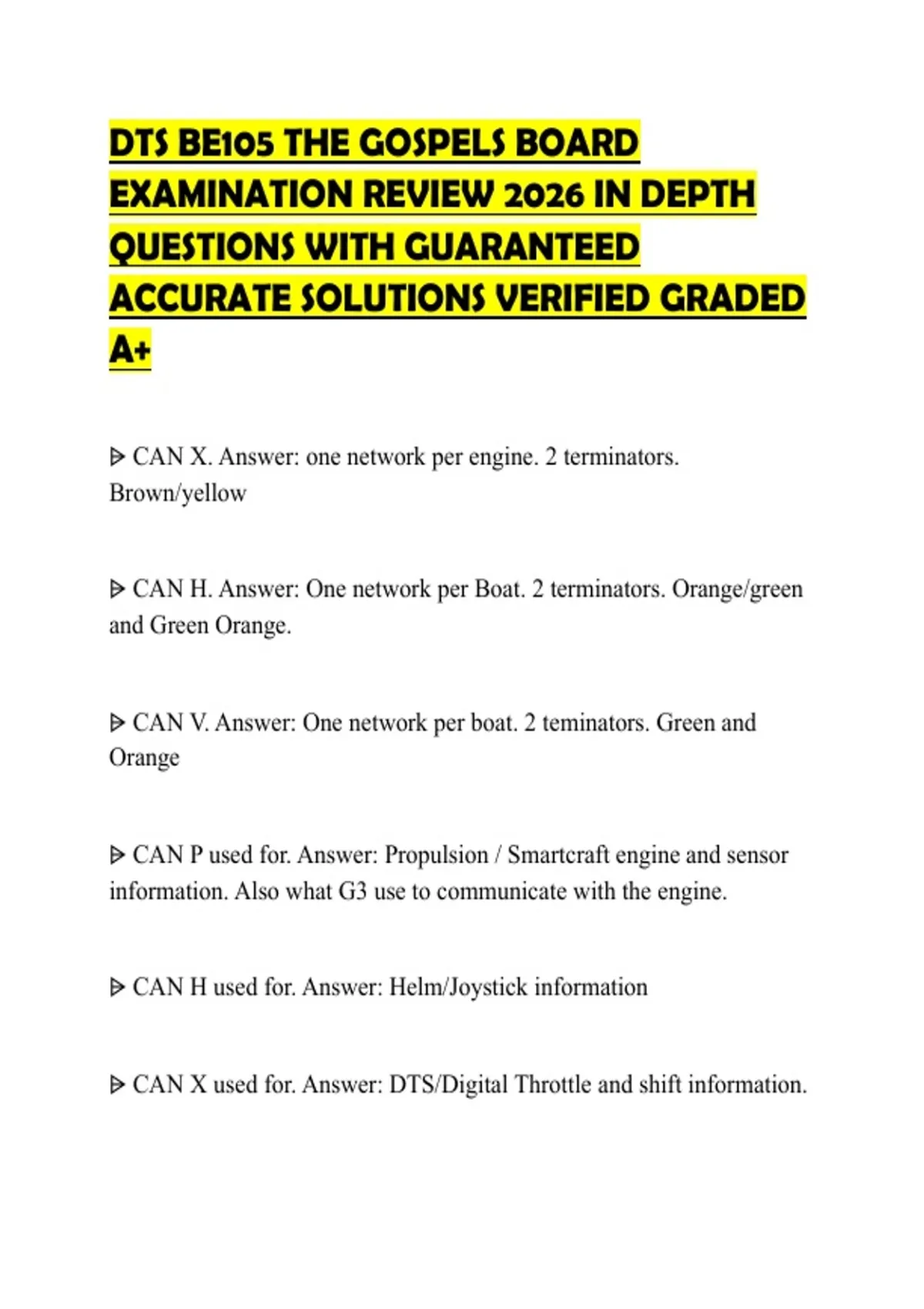

DTS BE105 THE GOSPELS BOARD EXAMINATION REVIEW 2026 IN DEPTH QUESTIONS WITH GUARANTEED ACCURATE SOLUTIONS VERIFIED GRADED A+

DTS BE105 THE GOSPELS BOARD
EXAMINATION REVIEW 2026 IN DEPTH
QUESTIONS WITH GUARANTEED
ACCURATE SOLUTIONS VERIFIED GRADED
A+

⩥ CAN X. Answer: one network per engine. 2 terminators.
Brown/yellow


⩥ CAN H. Answer: One network per Boat. 2 terminators. Orange/green
and Green Orange.


⩥ CAN V. Answer: One network per boat. 2 teminators. Green and
Orange


⩥ CAN P used for. Answer: Propulsion / Smartcraft engine and sensor
information. Also what G3 use to communicate with the engine.


⩥ CAN H used for. Answer: Helm/Joystick information


⩥ CAN X used for. Answer: DTS/Digital Throttle and shift information.

, ⩥ Each network has how many terminator?. Answer: 2 always


⩥ One terminator resistance. Answer: 120ohms


⩥ 2 terminators installed in parallel resistance.. Answer: 60ohms


⩥ CCM. Answer: Command Control Module (Helm computer) also
would have one CCM per engine at the helm.


⩥ PCM. Answer: Propulsion Control Module (engine computer with 3
plugs)


⩥ ECM. Answer: Electronic Control Module (engine computer with 2
plugs.


⩥ TVM. Answer: Thrust Vector Module (joystick applications used for
steering control.


⩥ City ID. Answer: Each module must have its own unique city ID. Can
not have duplicate City IDs on the same network.


⩥ CCM City ID's. Answer: 91 STBD outside.
92 PORT outside
