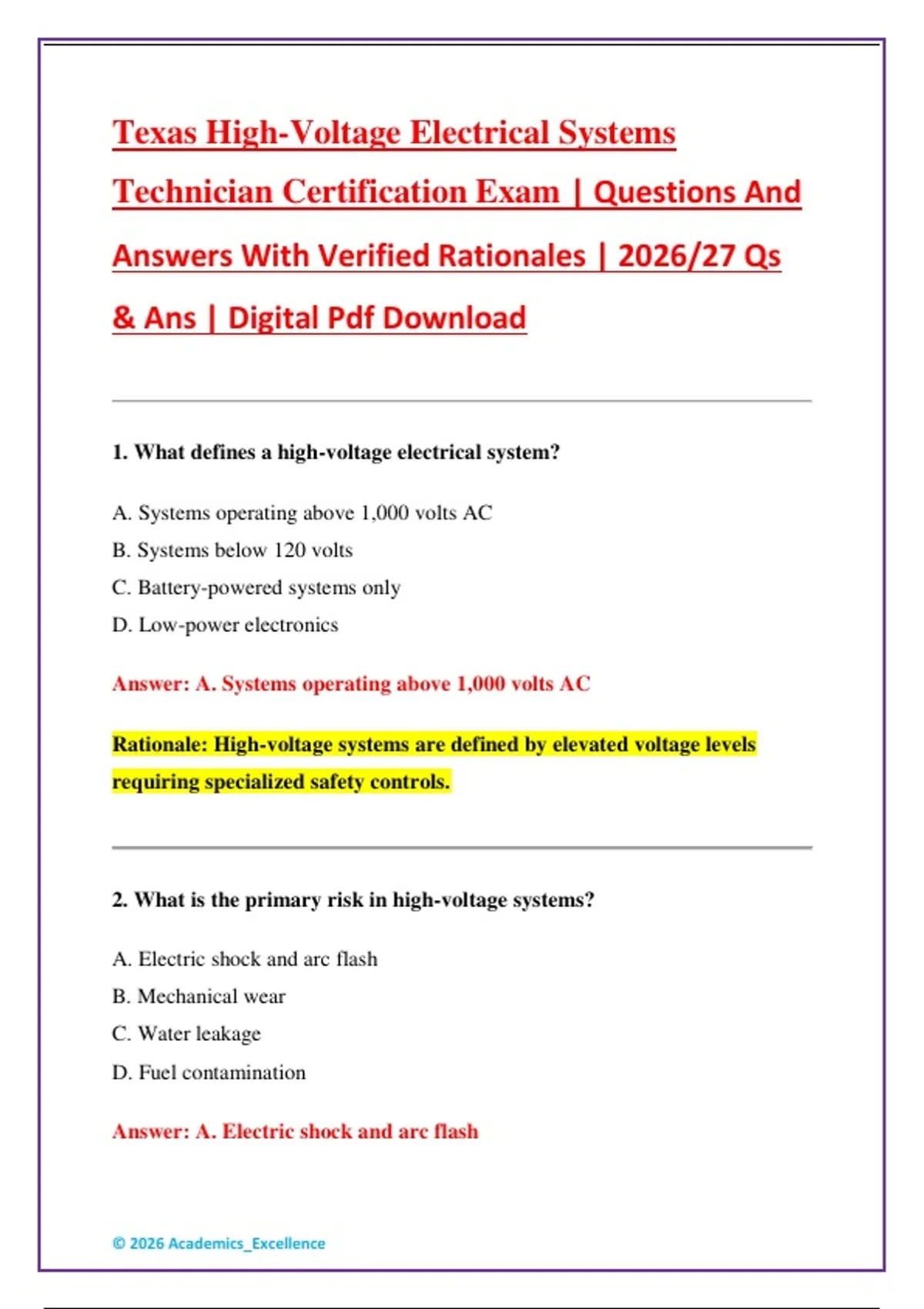

Texas High-Voltage Electrical Systems
Technician Certification Exam | Questions And
Answers With Verified Rationales | 2026/27 Qs
& Ans | Digital Pdf Download
1. What defines a high-voltage electrical system?
A. Systems operating above 1,000 volts AC
B. Systems below 120 volts
C. Battery-powered systems only
D. Low-power electronics
Answer: A. Systems operating above 1,000 volts AC
Rationale: High-voltage systems are defined by elevated voltage levels
requiring specialized safety controls.
2. What is the primary risk in high-voltage systems?
A. Electric shock and arc flash
B. Mechanical wear
C. Water leakage
D. Fuel contamination
Answer: A. Electric shock and arc flash
© 2026 Academics_Excellence
,Rationale: High voltage can cause severe injury or death.
3. What is the function of a high-voltage transformer?
A. Step voltage up or down for transmission and distribution
B. Store electrical energy
C. Convert AC to mechanical energy
D. Measure resistance
Answer: A. Step voltage up or down for transmission and distribution
Rationale: Transformers enable efficient long-distance power transfer.
4. What is insulation in high-voltage systems?
A. Material preventing current leakage
B. Conductive path
C. Cooling fluid
D. Fuel barrier
Answer: A. Material preventing current leakage
Rationale: Insulation prevents electrical breakdown.
5. What is dielectric strength?
A. Ability of a material to withstand electrical stress without breaking down
B. Mechanical strength
© 2026 Academics_Excellence
,C. Thermal capacity
D. Load capacity
Answer: A. Ability of a material to withstand electrical stress without
breaking down
Rationale: High dielectric strength reduces failure risk.
6. What is partial discharge in insulation systems?
A. Localized electrical breakdown within insulation
B. Full system failure
C. Load increase
D. Voltage stabilization
Answer: A. Localized electrical breakdown within insulation
Rationale: Indicates early insulation deterioration.
7. What is corona discharge?
A. Ionization of air around high-voltage conductors
B. Ground fault
C. Load balancing
D. Transformer cooling
Answer: A. Ionization of air around high-voltage conductors
Rationale: Causes energy loss and audible noise.
© 2026 Academics_Excellence
, 8. What is a high-voltage circuit breaker used for?
A. Interrupt fault currents in HV systems
B. Increase voltage
C. Store energy
D. Measure load
Answer: A. Interrupt fault currents in HV systems
Rationale: Protects equipment and grid stability.
9. What is SF6 gas used in high-voltage equipment?
A. Insulation and arc quenching
B. Fuel source
C. Cooling water
D. Mechanical lubricant
Answer: A. Insulation and arc quenching
Rationale: SF6 has excellent dielectric properties.
10. What is a high-voltage switchgear?
A. Assembly of switching and protection devices
B. Fuel distribution system
C. Water control system
D. Mechanical gearbox
© 2026 Academics_Excellence
