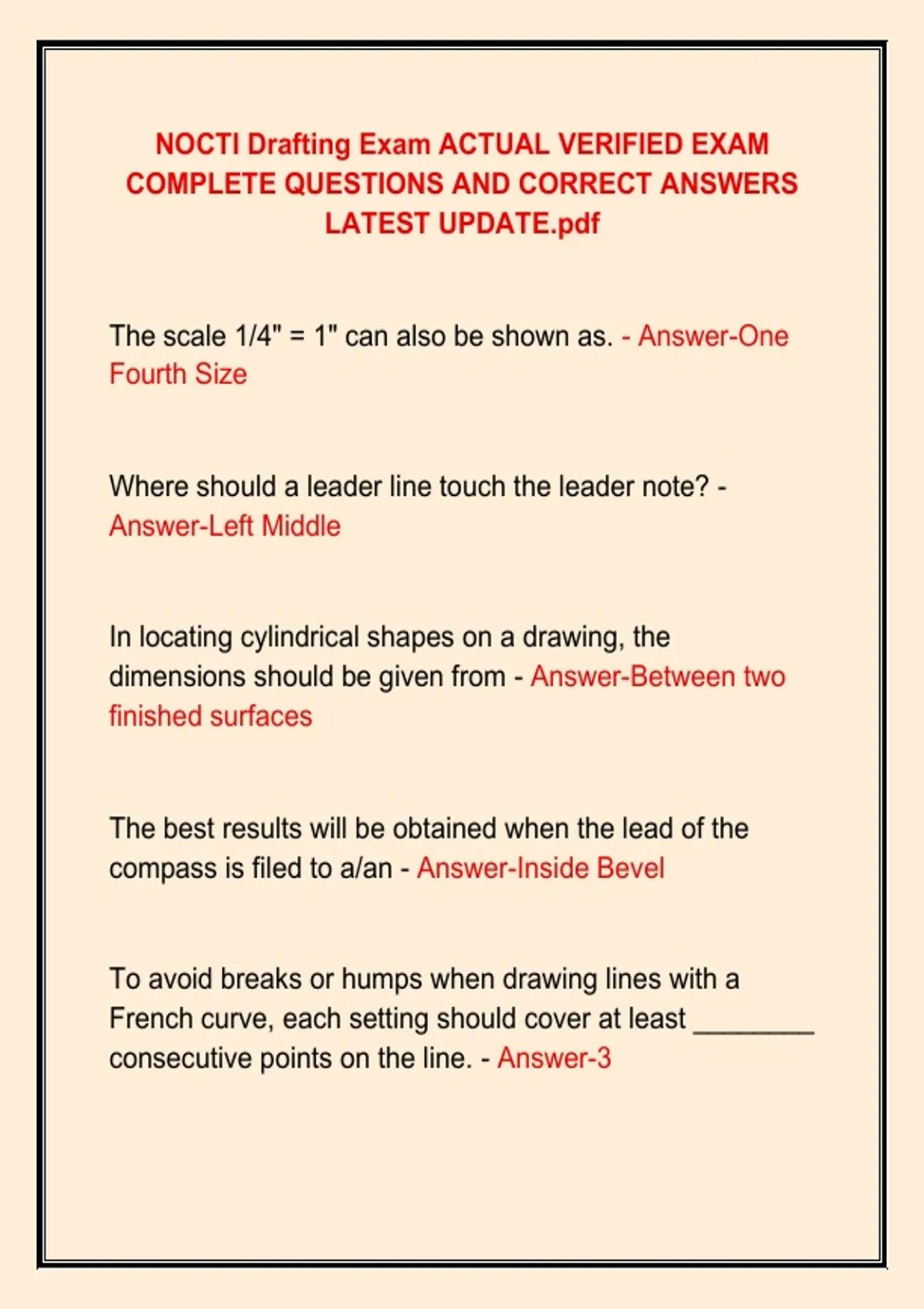

NOCTI Drafting Exam ACTUAL VERIFIED EXAM
COMPLETE QUESTIONS AND CORRECT ANSWERS
LATEST UPDATE.pdf
The scale 1/4" = 1" can also be shown as. - Answer-One
Fourth Size
Where should a leader line touch the leader note? -
Answer-Left Middle
In locating cylindrical shapes on a drawing, the
dimensions should be given from - Answer-Between two
finished surfaces
The best results will be obtained when the lead of the
compass is filed to a/an - Answer-Inside Bevel
To avoid breaks or humps when drawing lines with a
French curve, each setting should cover at least ________
consecutive points on the line. - Answer-3
, 1|Page
The lines used to show the limits of a dimension are called
___________ lines. - Answer-Projection
Which one of the following items would be the most
efficient to use when removing an over run line? - Answer-
An Erasing Shield
Using perpendicular lines inside a circle is a solution to
what problem? - Answer-Finding the center of a circle
The tangent point between a straight line and a circle is
determined by what? - Answer-A straight line between the
centers
When 2 arcs are tangent to each other, the tangent point
can be located by what? - Answer-A straight line between
the centers
The line that "touches" the circle is said to be
______________ to the circle. - Answer-Tangent
COMPLETE QUESTIONS AND CORRECT ANSWERS
LATEST UPDATE.pdf
The scale 1/4" = 1" can also be shown as. - Answer-One
Fourth Size
Where should a leader line touch the leader note? -
Answer-Left Middle
In locating cylindrical shapes on a drawing, the
dimensions should be given from - Answer-Between two
finished surfaces
The best results will be obtained when the lead of the
compass is filed to a/an - Answer-Inside Bevel
To avoid breaks or humps when drawing lines with a
French curve, each setting should cover at least ________
consecutive points on the line. - Answer-3
, 1|Page
The lines used to show the limits of a dimension are called
___________ lines. - Answer-Projection
Which one of the following items would be the most
efficient to use when removing an over run line? - Answer-
An Erasing Shield
Using perpendicular lines inside a circle is a solution to
what problem? - Answer-Finding the center of a circle
The tangent point between a straight line and a circle is
determined by what? - Answer-A straight line between the
centers
When 2 arcs are tangent to each other, the tangent point
can be located by what? - Answer-A straight line between
the centers
The line that "touches" the circle is said to be
______________ to the circle. - Answer-Tangent
