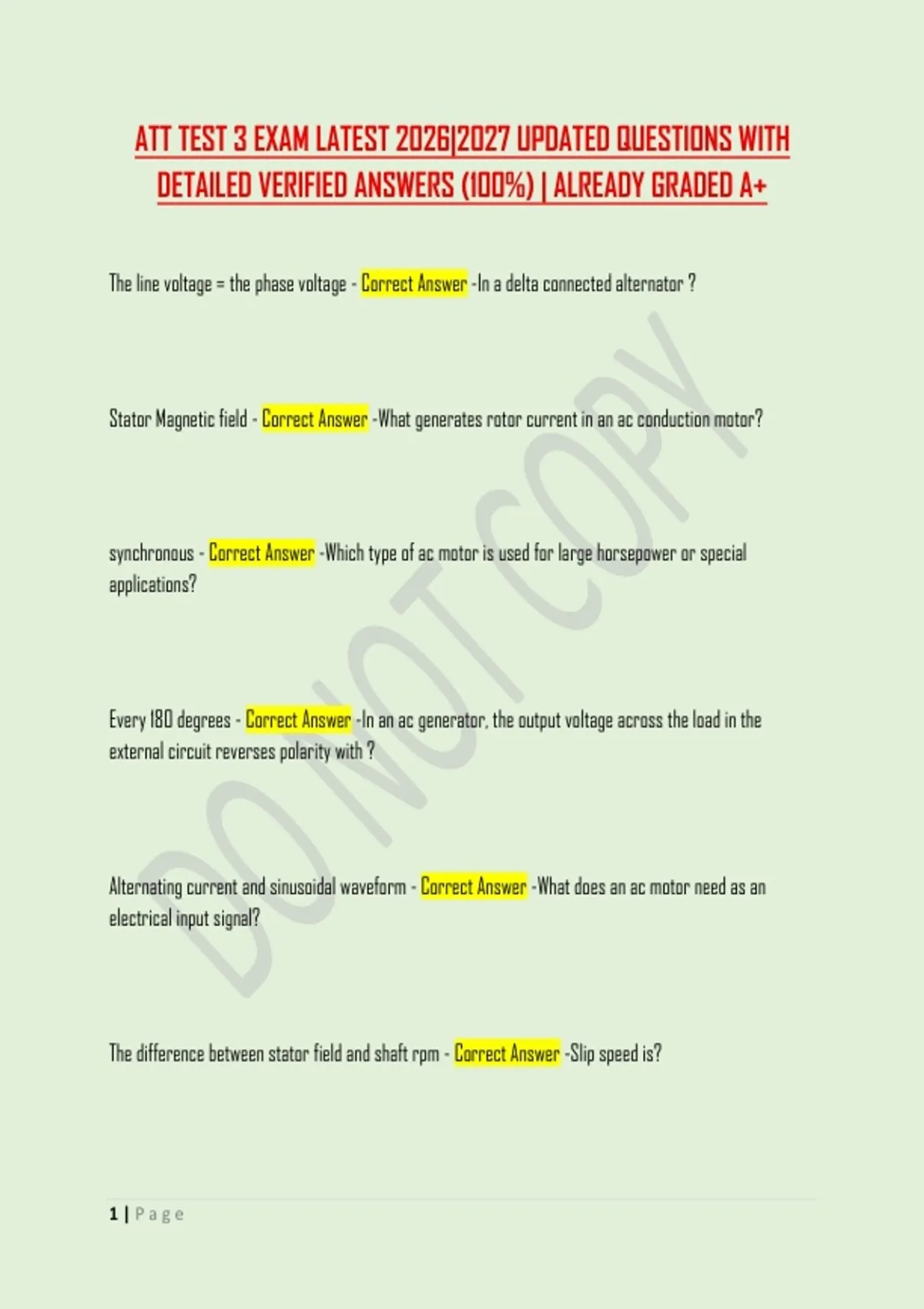

ATT TEST 3 EXAM LATEST 2026|2027 UPDATED QUESTIONS WITH
DETAILED VERIFIED ANSWERS (100%) | ALREADY GRADED A+
The line voltage = the phase voltage - Correct Answer -In a delta connected alternator ?
Stator Magnetic field - Correct Answer -What generates rotor current in an ac conduction motor?
synchronous - Correct Answer -Which type of ac motor is used for large horsepower or special
applications?
Every 180 degrees - Correct Answer -In an ac generator, the output voltage across the load in the
external circuit reverses polarity with ?
Alternating current and sinusoidal waveform - Correct Answer -What does an ac motor need as an
electrical input signal?
The difference between stator field and shaft rpm - Correct Answer -Slip speed is?
1|Page
, Squirrel Cage - Correct Answer -The ac induction motor uses what kind of rotor?
Synchronous speed - Correct Answer -Stator field rotation is also called?
Replace entire relay - Correct Answer -What corrective action should be taken for a failed sealed relay?
Check inputs - Correct Answer -The first step in checking a relay is to?
Input 2 voltage is incorrect - Correct Answer -Normally when the relay is energized, -ISU is present on
the output contact, this time, the relay is energized, but 0 volts is present, possible fault?
Direct current, dc voltage, electrical energy produces mechanical energy - Correct Answer -The dc
motor operates using ?
There is no shiny field coil in a series field motor - Correct Answer -A series field motor schematic has
the shunt coil placed in parallel with?
Electromagnet - Correct Answer -When a schematic diagram shows a field coil, you instantly know the
motor is ?
2|Page
