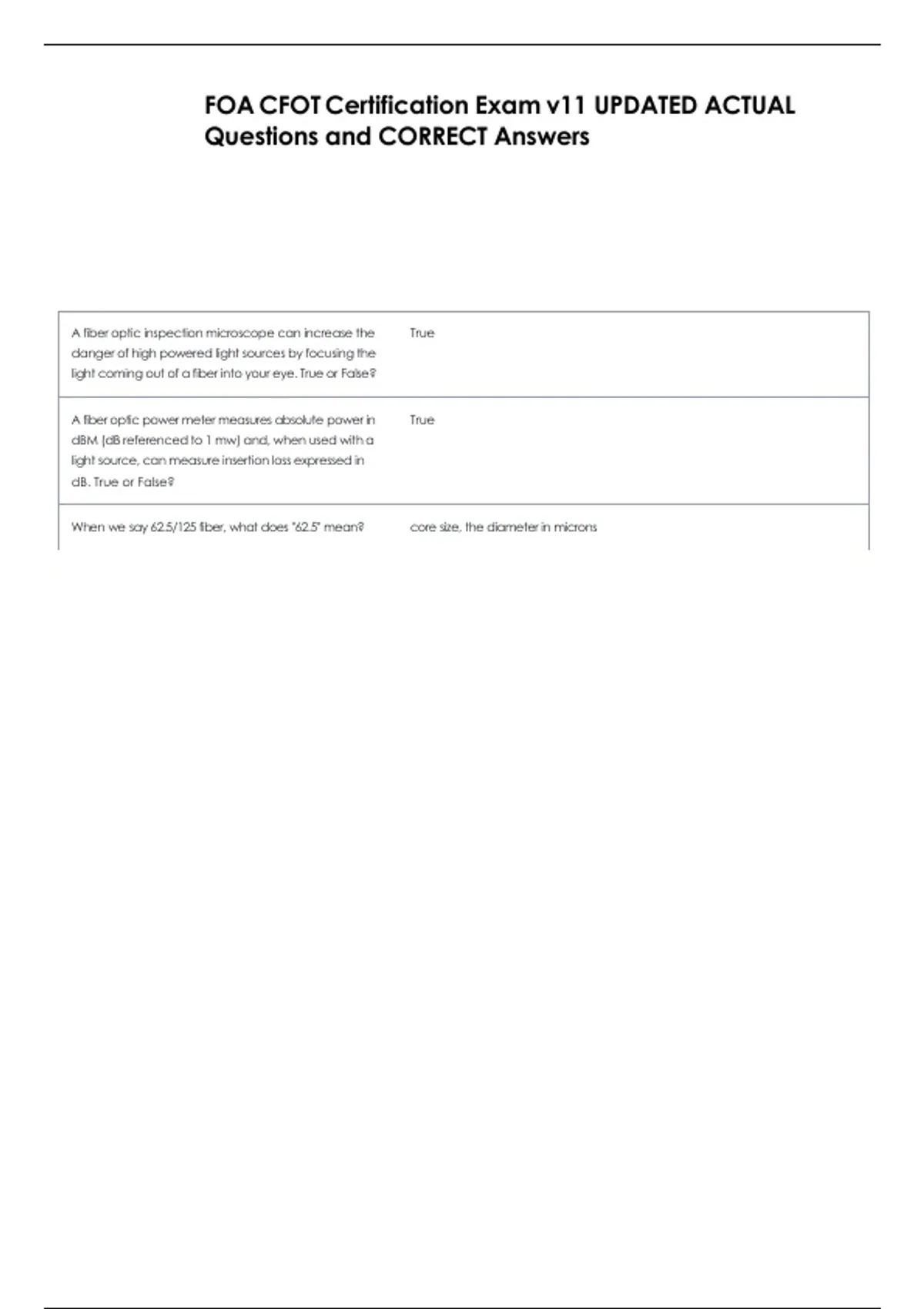

Questions and CORRECT Answers
A fiber optic inspection microscope can increase the True
danger of high powered light sources by focusing the
light coming out of a fiber into your eye. True or False?
A fiber optic power meter measures absolute power in True
dBM (dB referenced to 1 mw) and, when used with a
light source, can measure insertion loss expressed in
dB. True or False?
When we say 62.5/125 fiber, what does "62.5" mean? core size, the diameter in microns
, When we say 50/125 fiber, what does "125" mean? cladding size, the diameter in microns
OM3 and OM4 multimode fiber with a 50/125 micron Are "laser optimized" which gives more distance capability with gigabit
core are now a popular option in premises cabling networks using laser sources
systems because they _.
In-multimode fiber, the attenuation (reduction in optical Higher
power) of the fiber is __ at 850 nm than at 1300 nm.
Which of the following represents a singlemode 9/125 micron
(smaller core size) fiber size?
Singlemode fiber has____ bandwidth than multimode greater
fiber.
Most plastic optical fibers are __ _. large core step-index
When you strip singlemode or graded index multimode Primary buffer coating
mode glass fiber, you are removing the ____.
The proper method of pulling optical fiber cables is to Strength members
attach the pull wire or tape to the of the cable.
According to the references, hybrid cables are cables Both singelmode and multimode optical fibers
that contain ____.
What type of fiber cable design allows for large ribbon
numbers of fibers with ultra-high density, small size
(diameter) and lower cost?
According to the references, composite cables refer to both optical fibers and copper conductors
cables that contain_ >
Which optical fiber cables must be grounded? all cables that contain metallic elements
Fiber optic cable for use inside a building must ___ _. Be rated to meet the requirements of local building and fire codes
Optical fiber cable with a orange colored jacket Multimode fiber
generally indicates the cable contains _.
Premises cable jackets are usually color-coded in what Yellow
color to indicate singlemode fiber?
Premises cable jackets are usually color-coded in what Aqua
color to indicate laser-optimized 50/125 OM3 or OM4
fiber?
When pulling long lengths of cable in conduit or Any or all of these as appropriate (Pull form the center to the ends, Use a
innerduct, you may need to ____. breakaway swivel or monitor tension, Lubricate the cable)
In a loose tube cable, a gel or absorbent tape or To prevent water from entering the cable
powder is normally used _ _.
