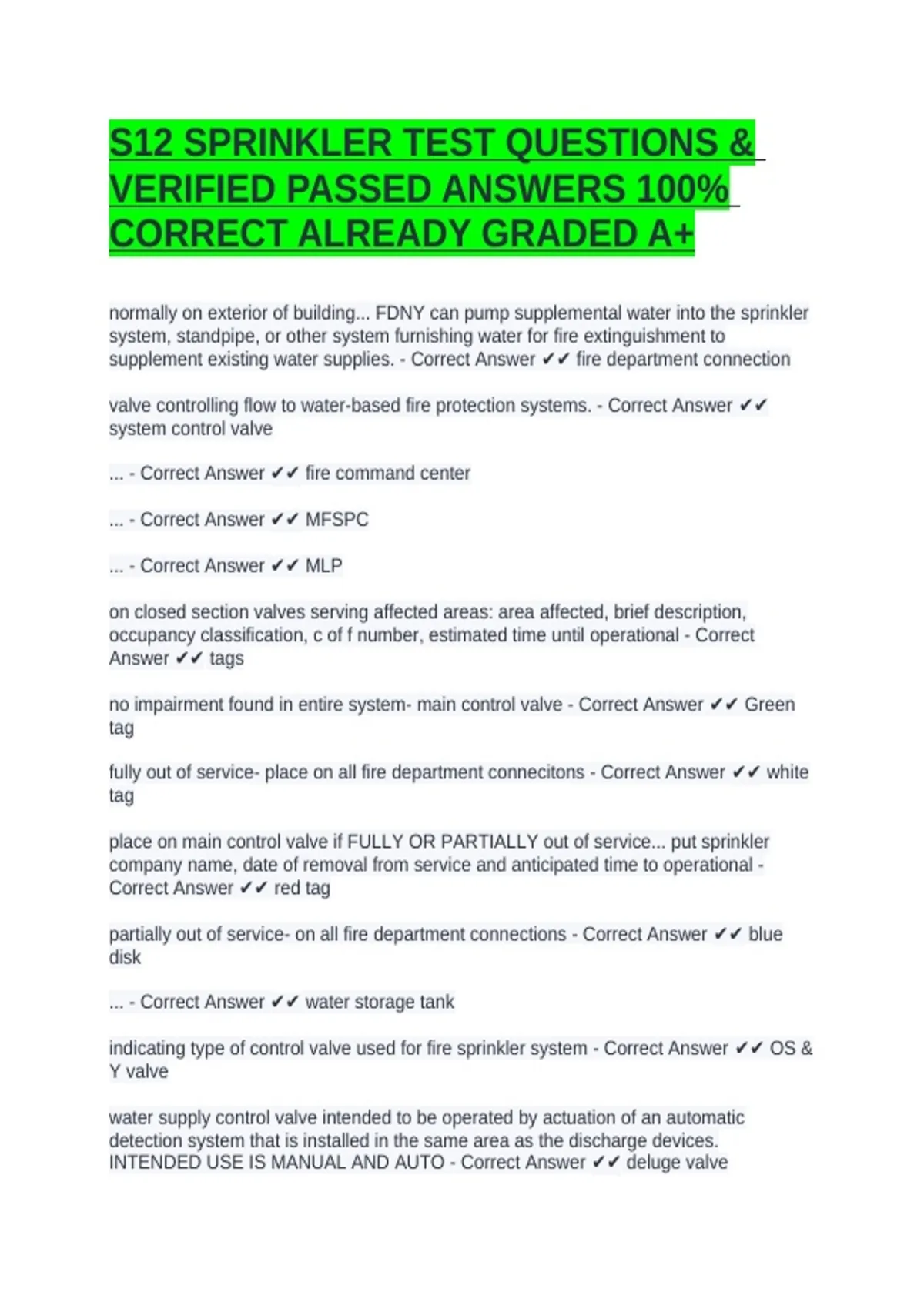

S12 SPRINKLER TEST QUESTIONS &
VERIFIED PASSED ANSWERS 100%
CORRECT ALREADY GRADED A+
normally on exterior of building... FDNY can pump supplemental water into the sprinkler
system, standpipe, or other system furnishing water for fire extinguishment to
supplement existing water supplies. - Correct Answer ✔✔ fire department connection
valve controlling flow to water-based fire protection systems. - Correct Answer ✔✔
system control valve
... - Correct Answer ✔✔ fire command center
... - Correct Answer ✔✔ MFSPC
... - Correct Answer ✔✔ MLP
on closed section valves serving affected areas: area affected, brief description,
occupancy classification, c of f number, estimated time until operational - Correct
Answer ✔✔ tags
no impairment found in entire system- main control valve - Correct Answer ✔✔ Green
tag
fully out of service- place on all fire department connecitons - Correct Answer ✔✔ white
tag
place on main control valve if FULLY OR PARTIALLY out of service... put sprinkler
company name, date of removal from service and anticipated time to operational -
Correct Answer ✔✔ red tag
partially out of service- on all fire department connections - Correct Answer ✔✔ blue
disk
... - Correct Answer ✔✔ water storage tank
indicating type of control valve used for fire sprinkler system - Correct Answer ✔✔ OS &
Y valve
water supply control valve intended to be operated by actuation of an automatic
detection system that is installed in the same area as the discharge devices.
INTENDED USE IS MANUAL AND AUTO - Correct Answer ✔✔ deluge valve
, employing open sprinklers that are attached to a piping system that is connected to a
water supply through a valve that is opened by the operation of a detection system
installed in the same areas as the sprinklers. WHEN IT OPENS, water flows into the
piping system and discharges from all sprinklers attached. - Correct Answer ✔✔ deluge
sprinkler system
fast response sprinkler that is listed for its capability to provide fire suppression of
specific high challenge fire hazards - Correct Answer ✔✔ Early suppresion fast
response sprinklers
= or > 1 inch less pressure to achieve a given discharge density - Correct Answer ✔✔
extra large orifice sprinklers
400 max square feet discharge - Correct Answer ✔✔ extended coverage sprinkler
a provider of liquid flow and pressure dedicated to fire protection. A fire pump is a part
of a fire sprinklers system water supply and can be powered by electric, diesel or steam.
connected to public water source or tank. provides higher pressure to sprinkler system -
Correct Answer ✔✔ fire pump
operated by heat breaking a glass bulb filled with a non freezing liquid with diameters
that vary form 3 mm for quick response to 5 mm for standard response - Correct
Answer ✔✔ Glass bulb sprinkler
valve to additional hose connection - Correct Answer ✔✔ hose valve
sign attached to a hydraulically calculated sprinkler system indicating the design
density, required gallons per minute and pressure for the system to operate properly -
Correct Answer ✔✔ hydraulic placard
method of sizing auto sprinkler piping using a prescribed amount of water to be
distributed over a specific area. - Correct Answer ✔✔ hydraulically calculated systems
in charge of safety during out of service systems - Correct Answer ✔✔ impairment
coordinator
sprinkler equipped with integral shields to protect the operating elemtn form discharge
from sprinklers installed at higher elevations - Correct Answer ✔✔ intermediate level
sprinkler
sprinkler head with orifice size equal or greater than 3/4 and less than 1 inch - Correct
Answer ✔✔ large orifice sprinkler
VERIFIED PASSED ANSWERS 100%
CORRECT ALREADY GRADED A+
normally on exterior of building... FDNY can pump supplemental water into the sprinkler
system, standpipe, or other system furnishing water for fire extinguishment to
supplement existing water supplies. - Correct Answer ✔✔ fire department connection
valve controlling flow to water-based fire protection systems. - Correct Answer ✔✔
system control valve
... - Correct Answer ✔✔ fire command center
... - Correct Answer ✔✔ MFSPC
... - Correct Answer ✔✔ MLP
on closed section valves serving affected areas: area affected, brief description,
occupancy classification, c of f number, estimated time until operational - Correct
Answer ✔✔ tags
no impairment found in entire system- main control valve - Correct Answer ✔✔ Green
tag
fully out of service- place on all fire department connecitons - Correct Answer ✔✔ white
tag
place on main control valve if FULLY OR PARTIALLY out of service... put sprinkler
company name, date of removal from service and anticipated time to operational -
Correct Answer ✔✔ red tag
partially out of service- on all fire department connections - Correct Answer ✔✔ blue
disk
... - Correct Answer ✔✔ water storage tank
indicating type of control valve used for fire sprinkler system - Correct Answer ✔✔ OS &
Y valve
water supply control valve intended to be operated by actuation of an automatic
detection system that is installed in the same area as the discharge devices.
INTENDED USE IS MANUAL AND AUTO - Correct Answer ✔✔ deluge valve
, employing open sprinklers that are attached to a piping system that is connected to a
water supply through a valve that is opened by the operation of a detection system
installed in the same areas as the sprinklers. WHEN IT OPENS, water flows into the
piping system and discharges from all sprinklers attached. - Correct Answer ✔✔ deluge
sprinkler system
fast response sprinkler that is listed for its capability to provide fire suppression of
specific high challenge fire hazards - Correct Answer ✔✔ Early suppresion fast
response sprinklers
= or > 1 inch less pressure to achieve a given discharge density - Correct Answer ✔✔
extra large orifice sprinklers
400 max square feet discharge - Correct Answer ✔✔ extended coverage sprinkler
a provider of liquid flow and pressure dedicated to fire protection. A fire pump is a part
of a fire sprinklers system water supply and can be powered by electric, diesel or steam.
connected to public water source or tank. provides higher pressure to sprinkler system -
Correct Answer ✔✔ fire pump
operated by heat breaking a glass bulb filled with a non freezing liquid with diameters
that vary form 3 mm for quick response to 5 mm for standard response - Correct
Answer ✔✔ Glass bulb sprinkler
valve to additional hose connection - Correct Answer ✔✔ hose valve
sign attached to a hydraulically calculated sprinkler system indicating the design
density, required gallons per minute and pressure for the system to operate properly -
Correct Answer ✔✔ hydraulic placard
method of sizing auto sprinkler piping using a prescribed amount of water to be
distributed over a specific area. - Correct Answer ✔✔ hydraulically calculated systems
in charge of safety during out of service systems - Correct Answer ✔✔ impairment
coordinator
sprinkler equipped with integral shields to protect the operating elemtn form discharge
from sprinklers installed at higher elevations - Correct Answer ✔✔ intermediate level
sprinkler
sprinkler head with orifice size equal or greater than 3/4 and less than 1 inch - Correct
Answer ✔✔ large orifice sprinkler
