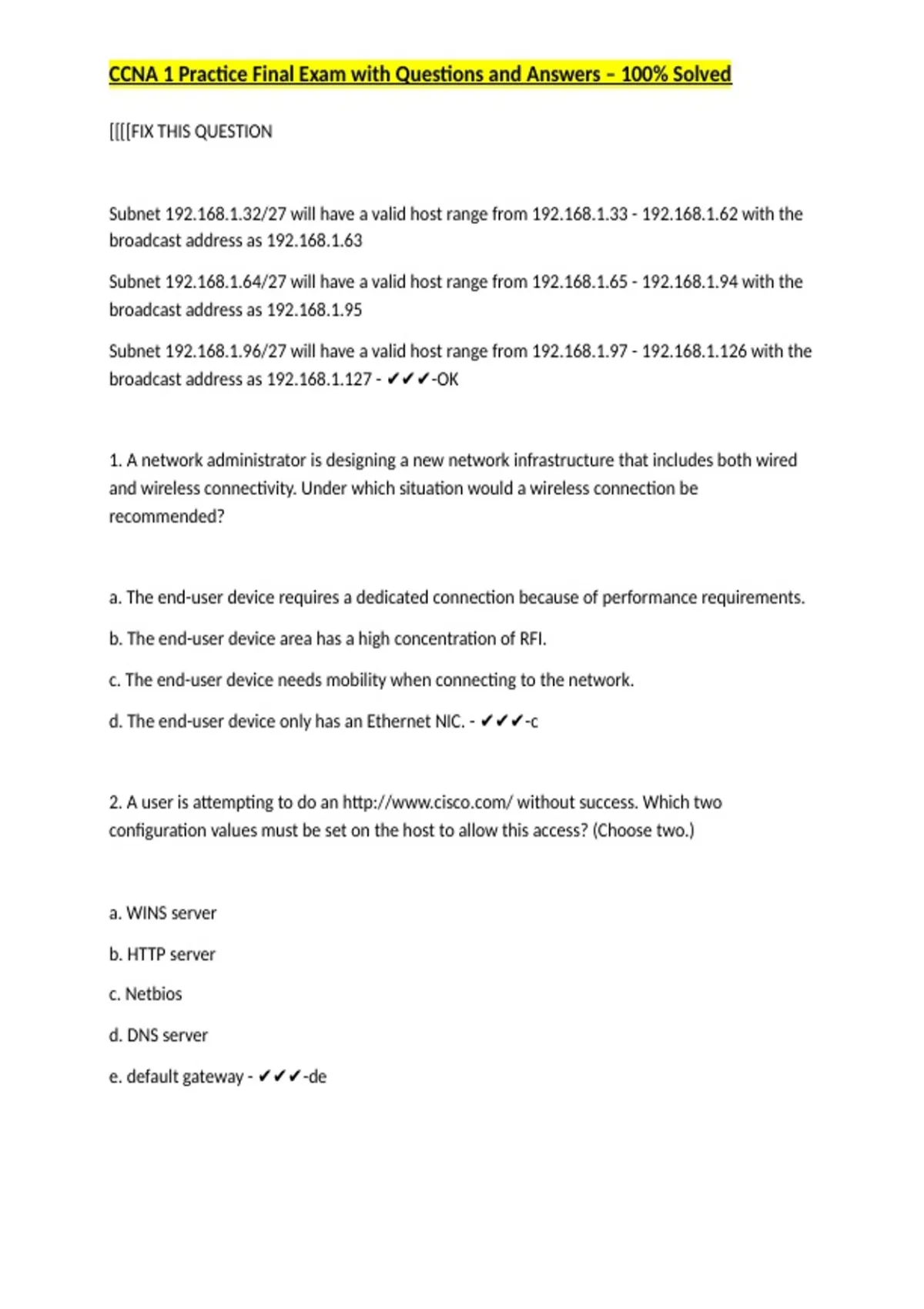

CCNA 1 Practice Final Exam with Questions and Answers – 100% Solved
[[[[FIX THIS QUESTION
Subnet 192.168.1.32/27 will have a valid host range from 192.168.1.33 - 192.168.1.62 with the
broadcast address as 192.168.1.63
Subnet 192.168.1.64/27 will have a valid host range from 192.168.1.65 - 192.168.1.94 with the
broadcast address as 192.168.1.95
Subnet 192.168.1.96/27 will have a valid host range from 192.168.1.97 - 192.168.1.126 with the
broadcast address as 192.168.1.127 - ✔✔✔-OK
1. A network administrator is designing a new network infrastructure that includes both wired
and wireless connectivity. Under which situation would a wireless connection be
recommended?
a. The end-user device requires a dedicated connection because of performance requirements.
b. The end-user device area has a high concentration of RFI.
c. The end-user device needs mobility when connecting to the network.
d. The end-user device only has an Ethernet NIC. - ✔✔✔-c
2. A user is attempting to do an http://www.cisco.com/ without success. Which two
configuration values must be set on the host to allow this access? (Choose two.)
a. WINS server
b. HTTP server
c. Netbios
d. DNS server
e. default gateway - ✔✔✔-de
,CCNA 1 Practice Final Exam with Questions and Answers – 100% Solved
3. Which two statements are correct in a comparison of IPv4 and IPv6 packet headers? (Choose
two.)
a. The Source Address field name from IPv4 is kept in IPv6.
b. The Version field from IPv4 is not kept in IPv6.
c. The Destination Address field is new in IPv6.
d. The Header Checksum field name from IPv4 is kept in IPv6.
e.The Time-to-Live field from IPv4 has been replaced by the Hop Limit field in IPv6. - ✔✔✔-ae
4. A user calls the help desk to report that a Windows XP workstation is unable to connect to
the network after startup and that a popup window says "This connection has limited or no
connectivity." The technician asks the user to issue the ipconfig /all command. The user reports
the IP address is 169.254.69.196 with subnet mask of 255.255.0.0 and nothing is displayed for
the DNS server IP address. What is the cause of the problem?
a. The DNS server IP address needs to be configured.
b. The subnet mask was configured incorrectly.
c. The workstation is unable to obtain an IP address from a DHCP server.
d. The workstation NIC has malfunctioned. - ✔✔✔-c
5. A network administrator has been issued a network address of 192.31.7.64/26. How many
subnets of equal size could be created from the assigned /26 network by using a /28 prefix?
a. 16
b. 8
c. 3
d. 6
e. 4
, CCNA 1 Practice Final Exam with Questions and Answers – 100% Solved
f. 14 - ✔✔✔-e
6. Why are port numbers included in the TCP header of a segment?
a. to allow the receiving host to assemble the packet in the proper order
b. to enable a receiving host to forward the data to the appropriate application
c. to determine which Layer 3 protocol should be used to encapsulate the data
d. to identify which switch ports should receive or forward the segment
e. to indicate the correct router interface that should be used to forward a segment - ✔✔✔-b
7. [[[[DIAGRAM. IT BASICALLY HAS HEADER => PACKET DATA => TRAILER INFO]]]]
Refer to the exhibit. Which layer of the OSI model would format data in this way?
a. data link
b. application
c. transport
d. network
e. physical - ✔✔✔-a
8. [[[g.o.d.a.m.n. PACKET TRACER IMAGE]]]]]
Open the PT Activity. Perform the tasks in the activity instructions and then answer the
question.
What is the secret keyword that is displayed on the web page?
a. cisco
[[[[FIX THIS QUESTION
Subnet 192.168.1.32/27 will have a valid host range from 192.168.1.33 - 192.168.1.62 with the
broadcast address as 192.168.1.63
Subnet 192.168.1.64/27 will have a valid host range from 192.168.1.65 - 192.168.1.94 with the
broadcast address as 192.168.1.95
Subnet 192.168.1.96/27 will have a valid host range from 192.168.1.97 - 192.168.1.126 with the
broadcast address as 192.168.1.127 - ✔✔✔-OK
1. A network administrator is designing a new network infrastructure that includes both wired
and wireless connectivity. Under which situation would a wireless connection be
recommended?
a. The end-user device requires a dedicated connection because of performance requirements.
b. The end-user device area has a high concentration of RFI.
c. The end-user device needs mobility when connecting to the network.
d. The end-user device only has an Ethernet NIC. - ✔✔✔-c
2. A user is attempting to do an http://www.cisco.com/ without success. Which two
configuration values must be set on the host to allow this access? (Choose two.)
a. WINS server
b. HTTP server
c. Netbios
d. DNS server
e. default gateway - ✔✔✔-de
,CCNA 1 Practice Final Exam with Questions and Answers – 100% Solved
3. Which two statements are correct in a comparison of IPv4 and IPv6 packet headers? (Choose
two.)
a. The Source Address field name from IPv4 is kept in IPv6.
b. The Version field from IPv4 is not kept in IPv6.
c. The Destination Address field is new in IPv6.
d. The Header Checksum field name from IPv4 is kept in IPv6.
e.The Time-to-Live field from IPv4 has been replaced by the Hop Limit field in IPv6. - ✔✔✔-ae
4. A user calls the help desk to report that a Windows XP workstation is unable to connect to
the network after startup and that a popup window says "This connection has limited or no
connectivity." The technician asks the user to issue the ipconfig /all command. The user reports
the IP address is 169.254.69.196 with subnet mask of 255.255.0.0 and nothing is displayed for
the DNS server IP address. What is the cause of the problem?
a. The DNS server IP address needs to be configured.
b. The subnet mask was configured incorrectly.
c. The workstation is unable to obtain an IP address from a DHCP server.
d. The workstation NIC has malfunctioned. - ✔✔✔-c
5. A network administrator has been issued a network address of 192.31.7.64/26. How many
subnets of equal size could be created from the assigned /26 network by using a /28 prefix?
a. 16
b. 8
c. 3
d. 6
e. 4
, CCNA 1 Practice Final Exam with Questions and Answers – 100% Solved
f. 14 - ✔✔✔-e
6. Why are port numbers included in the TCP header of a segment?
a. to allow the receiving host to assemble the packet in the proper order
b. to enable a receiving host to forward the data to the appropriate application
c. to determine which Layer 3 protocol should be used to encapsulate the data
d. to identify which switch ports should receive or forward the segment
e. to indicate the correct router interface that should be used to forward a segment - ✔✔✔-b
7. [[[[DIAGRAM. IT BASICALLY HAS HEADER => PACKET DATA => TRAILER INFO]]]]
Refer to the exhibit. Which layer of the OSI model would format data in this way?
a. data link
b. application
c. transport
d. network
e. physical - ✔✔✔-a
8. [[[g.o.d.a.m.n. PACKET TRACER IMAGE]]]]]
Open the PT Activity. Perform the tasks in the activity instructions and then answer the
question.
What is the secret keyword that is displayed on the web page?
a. cisco
