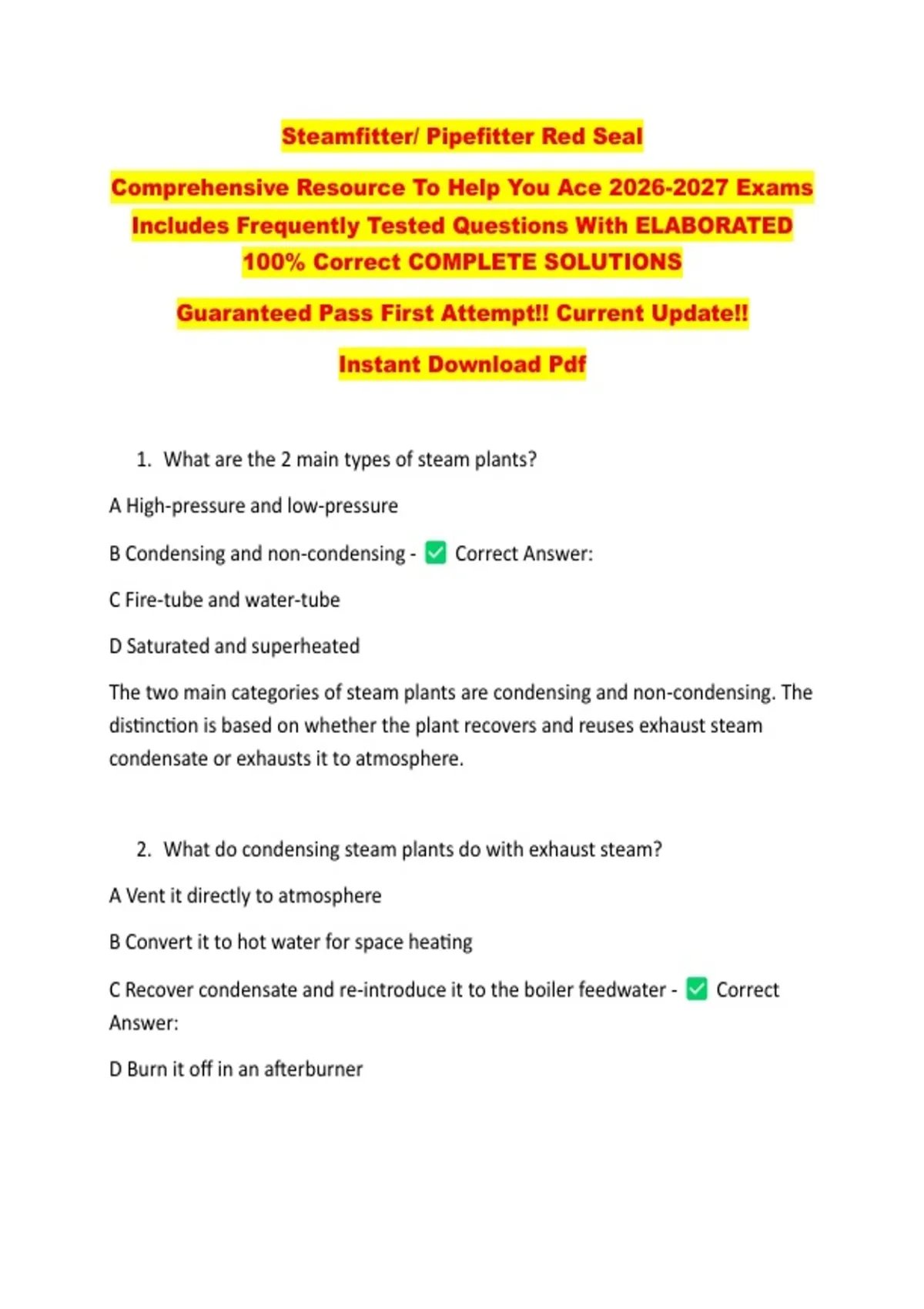

Steamfitter/ Pipefitter Red Seal
Comprehensive Resource To Help You Ace 2026-2027 Exams
Includes Frequently Tested Questions With ELABORATED
100% Correct COMPLETE SOLUTIONS
Guaranteed Pass First Attempt!! Current Update!!
Instant Download Pdf
1. What are the 2 main types of steam plants?
A High-pressure and low-pressure
B Condensing and non-condensing - Correct Answer:
C Fire-tube and water-tube
D Saturated and superheated
The two main categories of steam plants are condensing and non-condensing. The
distinction is based on whether the plant recovers and reuses exhaust steam
condensate or exhausts it to atmosphere.
2. What do condensing steam plants do with exhaust steam?
A Vent it directly to atmosphere
B Convert it to hot water for space heating
C Recover condensate and re-introduce it to the boiler feedwater - Correct
Answer:
D Burn it off in an afterburner
,Condensing steam plants capture the exhaust steam, condense it back into water
(condensate), and feed it back into the boiler system. This recovery of treated, hot
water improves efficiency and reduces chemical treatment costs.
3. Which type of steam plant is more costly to install, and why is it preferred
despite the cost?
A Non-condensing — preferred for simplicity
B Condensing — preferred because it is overall more efficient than non-
condensing- Correct Answer:
C Non-condensing — preferred for high-pressure applications
D Condensing — preferred only in marine applications
Condensing plants have higher capital costs due to condensate return piping,
condensate pumps, heat exchangers, and controls. However, their superior overall
efficiency (recovering heat and treated water) makes them the preferred choice
for long-term operation.
4. What is the approximate thermal efficiency of a non-condensing steam
plant?
A50%
B35%
C20% - Correct Answer:
D65%
Non-condensing plants are only approximately 20% efficient — the majority of
energy is lost as exhaust steam is vented to atmosphere. This is why condensing
plants, despite higher installation cost, are favored for continuous operation.
, 5. What is the design classification of a fire-tube boiler?
A Water-tube design
B Coil and jacket design
C Shell and tube design - Correct Answer:
D Sectional cast-iron design
Fire-tube boilers use a shell-and-tube design: hot combustion gases pass through
tubes (fire tubes) submerged in a shell of water. Heat transfers through the tube
walls to generate steam in the surrounding water.
6
What is the general maximum working pressure limitation for fire-tube boilers?
A 100 psig
B 150 psig
C 250 psig - Correct Answer:
D 500 psig
Fire-tube boilers are generally limited to 250 psig maximum working pressure.
Above this, water-tube boilers are preferred as their smaller-diameter tubes
handle higher pressures more safely than the large shell of a fire-tube design.
7
What is the steam capacity limitation for a fire-tube boiler?
A 500 lbs (227 kg) of steam per hour
B 1,000 lbs (454 kg) of steam per hour
C 1,800 lbs (820 kg) of steam per hour - Correct Answer:
, D 5,000 lbs (2,270 kg) of steam per hour
Fire-tube boilers are generally limited to approximately 1,800 lbs (820 kg) of
steam per hour. Larger capacity requirements are better served by water-tube
boilers, which can produce dramatically higher steam outputs.
8
What is the Lowest Safe Water Level (LSWL) on a fire-tube boiler?
A 1 inch
B 2 inches - Correct Answer:
C 3 inches
D 4 inches
The LSWL on a fire-tube boiler is 2 inches above the highest point of the tubes.
Operating below this level risks exposing tubes to steam rather than water,
causing rapid overheating and potential tube failure.
9
Fire-tube boilers can handle rapid fluctuations in steam demand.
TRUE - Correct Answer:
FALSE
True. The large water volume in a fire-tube boiler acts as a thermal reserve — it
can absorb sudden small fluctuations in steam demand without significant
pressure drop. This makes them well suited for loads with moderate variability.
10
Fire-tube boilers can respond rapidly to a large change in load.
