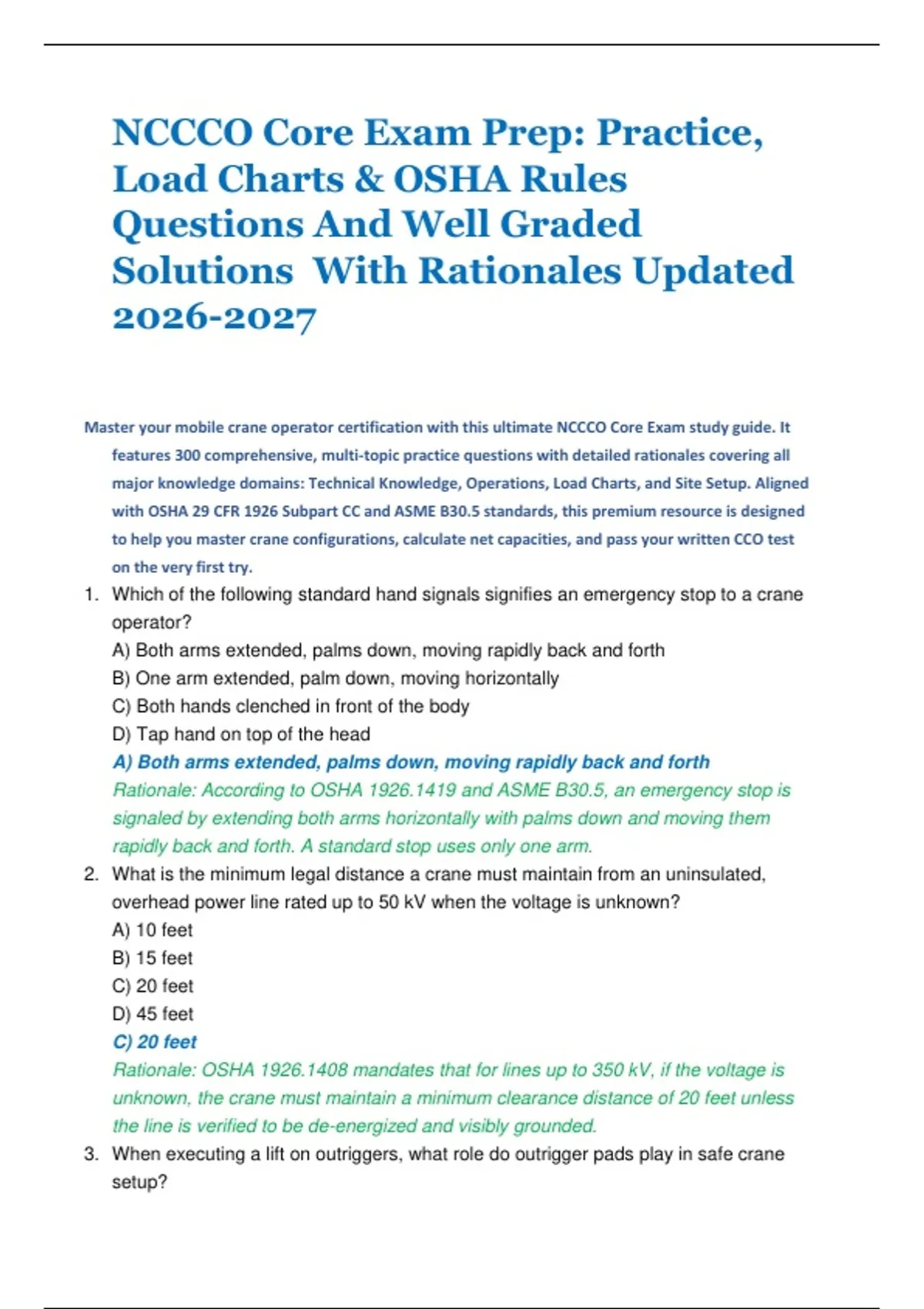

NCCCO Core Exam Prep: Practice,
Load Charts & OSHA Rules
Questions And Well Graded
Solutions With Rationales Updated
2026-2027
Master your mobile crane operator certification with this ultimate NCCCO Core Exam study guide. It
features 300 comprehensive, multi-topic practice questions with detailed rationales covering all
major knowledge domains: Technical Knowledge, Operations, Load Charts, and Site Setup. Aligned
with OSHA 29 CFR 1926 Subpart CC and ASME B30.5 standards, this premium resource is designed
to help you master crane configurations, calculate net capacities, and pass your written CCO test
on the very first try.
1. Which of the following standard hand signals signifies an emergency stop to a crane
operator?
A) Both arms extended, palms down, moving rapidly back and forth
B) One arm extended, palm down, moving horizontally
C) Both hands clenched in front of the body
D) Tap hand on top of the head
A) Both arms extended, palms down, moving rapidly back and forth
Rationale: According to OSHA 1926.1419 and ASME B30.5, an emergency stop is
signaled by extending both arms horizontally with palms down and moving them
rapidly back and forth. A standard stop uses only one arm.
2. What is the minimum legal distance a crane must maintain from an uninsulated,
overhead power line rated up to 50 kV when the voltage is unknown?
A) 10 feet
B) 15 feet
C) 20 feet
D) 45 feet
C) 20 feet
Rationale: OSHA 1926.1408 mandates that for lines up to 350 kV, if the voltage is
unknown, the crane must maintain a minimum clearance distance of 20 feet unless
the line is verified to be de-energized and visibly grounded.
3. When executing a lift on outriggers, what role do outrigger pads play in safe crane
setup?
, A) They increase the structural capacity of the outrigger beams
B) They distribute the weight of the crane and load over a larger surface area
C) They absorb the shock of sudden stops during high-speed swings
D) They keep the outrigger floats clean and dry
B) They distribute the weight of the crane and load over a larger surface area
Rationale: Outrigger pads expand the footprint of the crane's support structure,
lowering the pounds-per-square-foot (PSF) pressure exerted on the ground to
prevent the crane from sinking or tipping.
4. Which term describes the maximum gross load weight that a crane is engineered to
safely lift at a specific radius and configuration?
A) Net capacity
B) Rated capacity
C) Deductible load
D) Line pull limit
B) Rated capacity
Rationale: Rated capacity (or gross capacity) is the value explicitly listed in the
manufacturer's load chart for a given boom length, angle, and working radius before
any component deductions are applied.
5. What does an operator calculate by subtracting the weight of the block, overhaul
ball, rigging, and stowed jib from the gross capacity?
A) Gross load
B) Net capacity
C) Safety factor
D) Total line pull
B) Net capacity
Rationale: Net capacity represents the actual maximum weight of the payload or
object being lifted that the crane can safely handle after subtracting all deductions
from the gross capacity.
6. What standard practice must be followed when a crane is set up on a slope or
uneven ground surface?
A) The operator must shorten the boom to reduce the leverage
B) The crane must be leveled within the manufacturer’s specified tolerance
C) The operator should increase the safety margin on the load chart by 25%
D) The boom angle must be kept below 45 degrees at all times
B) The crane must be leveled within the manufacturer’s specified tolerance
Rationale: Operating a crane that is out of level introduces side loading on the boom
and alters the working radius, drastically reducing lifting capacity and introducing a
severe risk of structural failure.
,7. Under OSHA regulations, who bears the primary responsibility for conducting the
mandatory shift inspection on a mobile crane?
A) The site safety director
B) The crane owner
C) The competent person (frequently the operator)
D) The lift director
C) The competent person (frequently the operator)
Rationale: OSHA 1926.1412 states that a competent person must begin each shift
by inspecting the crane for deficiencies, leaks, structural anomalies, and safety
device functionality before operations commence.
8. Which type of wire rope damage is characterized by a displacement of outer strands
due to sudden release of torsional tension?
A) Birdcaging
B) Kinking
C) Core protrusion
D) Crushing
A) Birdcaging
Rationale: Birdcaging occurs when a wire rope is subjected to a sudden release of
load or severe torsional twist, causing the outer strands to separate and bloom
outward like a cage.
9. What is the fundamental risk associated with rapid acceleration or sudden stopping
during a crane swing maneuver?
A) The engine will stall due to sudden fuel consumption
B) The structural safety factor of the wire rope will permanently increase
C) The load will swing outward, increasing the operating radius and side-loading the
boom
C) The load will swing outward, increasing the operating radius and side-
loading the boom
Rationale: Sudden dynamic movements cause centrifugal force to push the load
outward, which increases the radius beyond chart parameters and subjects the
boom to damaging side forces.
10. Which part of a mobile crane load chart dictates the maximum weight allowed based
on structural strength rather than stability?
A) Below the bold horizontal line
B) Above the bold horizontal line or shaded area
C) The parts-of-line deduction table
D) The jib deduction values
B) Above the bold horizontal line or shaded area
, Rationale: Load charts are split into two zones: the upper portion (shaded or above a
bold line) represents ratings based on the structural integrity of the crane, while the
lower portion relies on tipping stability.
11. What action must be taken immediately if a crane's load-moment indicator (LMI) fails
during a critical lift?
A) Continue the lift using a spotter to watch the boom angle
B) Switch the LMI to manual bypass and complete the shift
C) Stop all operations safely until the LMI is repaired or verified
D) Deduct 10% from the load chart values and continue
C) Stop all operations safely until the LMI is repaired or verified
Rationale: OSHA and ASME standards require that if an operational aid like an LMI
becomes inoperable, work must cease immediately or temporary alternative
measures must be rigidly implemented before proceeding.
12. How does the working radius of a crane change as the boom is lowered to a smaller
angle?
A) The radius decreases
B) The radius remains constant
C) The radius increases
D) The radius fluctuates based on line pull
C) The radius increases
Rationale: Working radius is the horizontal distance from the center of rotation to the
center of the vertical hoist line. Lowering the boom extends this horizontal distance
outward.
13. What is the standard safety factor required for general-purpose wire rope used for
crane hoisting lines?
A) 3.5 to 1
B) 5 to 1
C) 7 to 1
D) 10 to 1
B) 5 to 1
Rationale: Standard ASME B30.5 regulations state that the design factor for live
hoisting wire rope must be at least 5 to 1, meaning its breaking strength is five times
the maximum allowable working load.
14. Which of the following conditions constitutes a "critical lift"?
A) Any lift performed during windy weather
B) A lift exceeding 75% of the crane's rated capacity or involving multiple cranes
C) A lift using synthetic slings instead of wire rope slings
D) Any lift performed inside an industrial warehouse
