1|Page

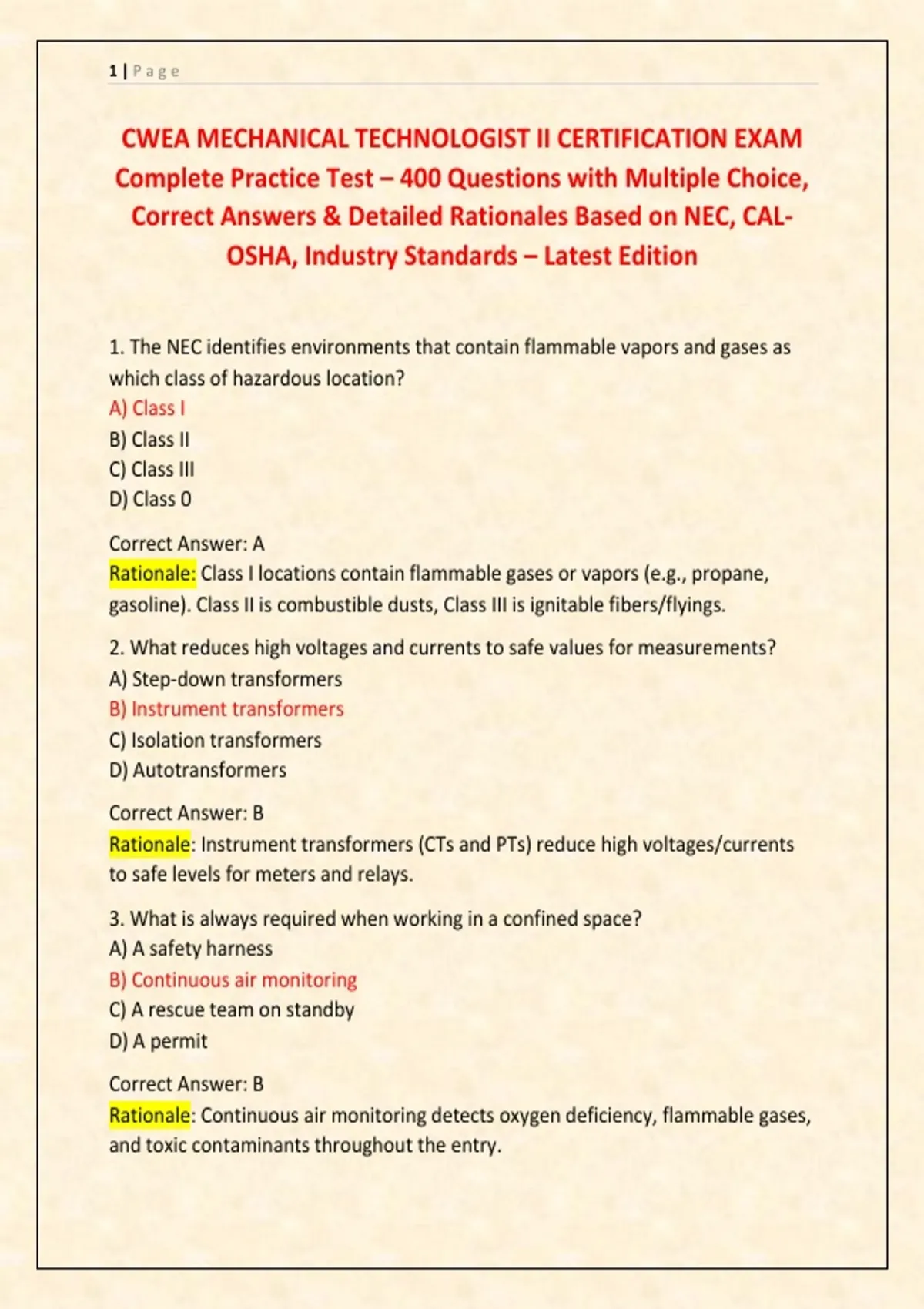

CWEA MECHANICAL TECHNOLOGIST II CERTIFICATION EXAM
Complete Practice Test – 400 Questions with Multiple Choice,
Correct Answers & Detailed Rationales Based on NEC, CAL-
OSHA, Industry Standards – Latest Edition
1. The NEC identifies environments that contain flammable vapors and gases as
which class of hazardous location?
A) Class I
B) Class II
C) Class III
D) Class 0
Correct Answer: A
Rationale: Class I locations contain flammable gases or vapors (e.g., propane,
gasoline). Class II is combustible dusts, Class III is ignitable fibers/flyings.
2. What reduces high voltages and currents to safe values for measurements?
A) Step-down transformers
B) Instrument transformers
C) Isolation transformers
D) Autotransformers
Correct Answer: B
Rationale: Instrument transformers (CTs and PTs) reduce high voltages/currents
to safe levels for meters and relays.
3. What is always required when working in a confined space?
A) A safety harness
B) Continuous air monitoring
C) A rescue team on standby
D) A permit
Correct Answer: B
Rationale: Continuous air monitoring detects oxygen deficiency, flammable gases,
and toxic contaminants throughout the entry.
,2|Page
4. Oxygen deficiency occurs when the oxygen level is less than what by volume?
A) 21%
B) 19.5%
C) 18%
D) 20.8%
Correct Answer: B
Rationale: OSHA defines oxygen deficiency as less than 19.5% oxygen by volume.
Below this, physiological effects occur.
5. Where is the best place to find out what personal protective gear is necessary
when working with a chemical?
A) Supervisor
B) MSDS or SDS
C) Chemical label
D) Co-worker
Correct Answer: B
Rationale: The SDS provides detailed PPE, health hazard, and safe handling
information for each chemical.
6. The lack of an unpleasant odor in a manhole, lift station or other structures
does not always mean that dangerous gases are not present because why?
A) Gases settle at different levels
B) Some dangerous gases have no odor
C) Odors can be masked
D) All of the above
Correct Answer: B
Rationale: Many hazardous gases (CO, methane) are odorless. Relying on smell is
unsafe; always use gas detectors.
7. What is the first step to take when preparing to perform maintenance or
repairs on an operating piece of equipment?
A) Turn off the power
B) Notify all affected employees that equipment is going to be locked out and
explain the reason
,3|Page
C) Remove the fuse
D) Apply a lock and tag
Correct Answer: B
Rationale: Before LOTO, affected employees must be notified of the impending
lockout and the reason.
8. Rubber safety blankets should be tested how often?
A) Every 6 months
B) Every 12 months
C) Every 24 months
D) Every 3 months
Correct Answer: B
Rationale: Rubber protective equipment (blankets, gloves) must be electrically
tested annually per ASTM/OSHA.
9. What is the interrupting current of a GFCI receptacle?
A) 1-2 mA
B) 5-6 mA
C) 10-15 mA
D) 20-30 mA
Correct Answer: B
Rationale: A GFCI trips at about 5-6 mA to prevent fatal electric shock.
10. What type of stepladder is forbidden while working on electrical equipment?
A) Fiberglass
B) Wood
C) Aluminum
D) Plastic
Correct Answer: C
Rationale: Aluminum ladders conduct electricity and are prohibited when working
on or near energized equipment.
11. What is the killer of electrical shock?
A) Voltage
B) Resistance
, 4|Page
C) Current
D) Power
Correct Answer: C
Rationale: Current (amperes) through the body causes injury and death. As little
as 100 mA can be fatal.
12. The relationship between an electric current and a magnetic field is called
what?
A) Electromotive force
B) Electromagnetism
C) Induction
D) Permeability
Correct Answer: B
Rationale: Electromagnetism is the phenomenon where an electric current
produces a magnetic field.
13. An on-off switch with overload relays is called what?
A) Automatic starter
B) Manual starter
C) Contactor
D) Disconnect
Correct Answer: B
Rationale: A manual starter combines an on-off switch with overload protection
and requires manual operation.
14. The amount of potential difference a layer of insulation can withstand is called
what?
A) Breakdown voltage
B) Dielectric strength
C) Insulation resistance
D) Voltage rating
Correct Answer: B
Rationale: Dielectric strength is the maximum electric field a material can
withstand without breakdown.
