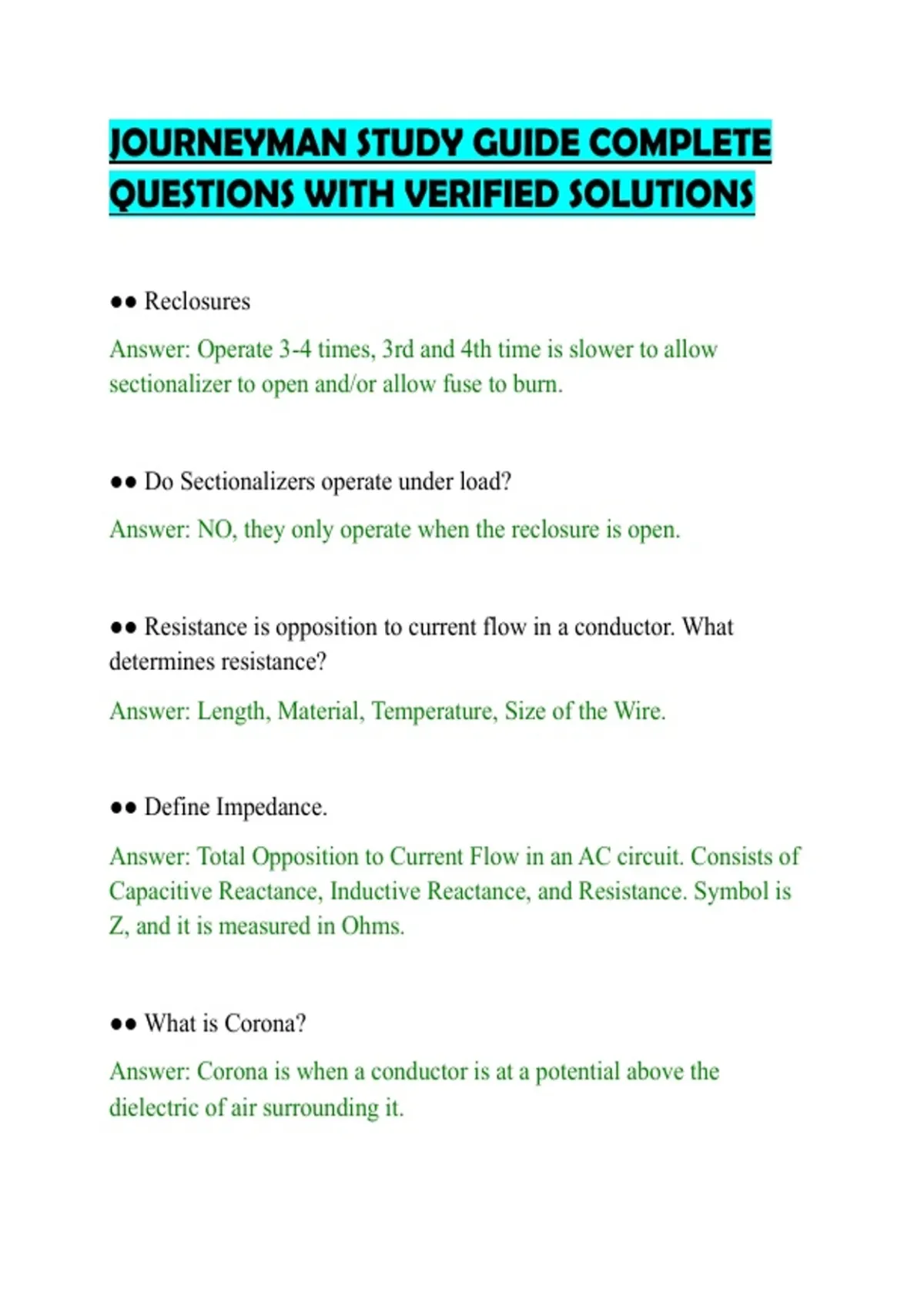

JOURNEYMAN STUDY GUIDE COMPLETE QUESTIONS WITH VERIFIED SOLUTION

JOURNEYMAN STUDY GUIDE COMPLETE
QUESTIONS WITH VERIFIED SOLUTIONS

●● Reclosures
Answer: Operate 3-4 times, 3rd and 4th time is slower to allow
sectionalizer to open and/or allow fuse to burn.


●● Do Sectionalizers operate under load?
Answer: NO, they only operate when the reclosure is open.


●● Resistance is opposition to current flow in a conductor. What
determines resistance?
Answer: Length, Material, Temperature, Size of the Wire.


●● Define Impedance.
Answer: Total Opposition to Current Flow in an AC circuit. Consists of
Capacitive Reactance, Inductive Reactance, and Resistance. Symbol is
Z, and it is measured in Ohms.


●● What is Corona?
Answer: Corona is when a conductor is at a potential above the
dielectric of air surrounding it.

,●● ELI
Answer: Voltage (E), Leads Current (I), in an Inductive Circuit.


●● ICE
Answer: Current (I), Leads Voltage (E), in a Capacitive Circuit.


●● What is the OSHA regulation for testing Rubber Gloves?
Answer: Rubber Gloves must be tested every 6 months. YOU must test
and check them before each use.


●● What is the OSHA Regulation for testing Rubber Sleeves?
Answer: Rubber Sleeves must be tested every 12 months.
You must test and check them before each use.


●● Class 0 Gloves
Answer: Color: Red
AC Voltage Rating: 1,000
Tested at: 5,000


●● Class 1 Gloves
Answer: Color: White
AC Voltage Rating: 7,500

, Tested at: 10,000


●● Class 2 Gloves
Answer: Color: Yellow
AC Voltage Rating: 17,000
Tested at: 20,000


●● Class 3 Gloves
Answer: Color: Green
AC Voltage Rating: 26,500
Tested at: 30,000


●● Class 4 Gloves
Answer: Color: Orange
AC Voltage Rating: 36,000
Tested at: 40,000


●● What is Step Potential?
Answer: Difference of potential between your feet, while walking next
to an energized object on the ground.


●● What is Touch Potential?
