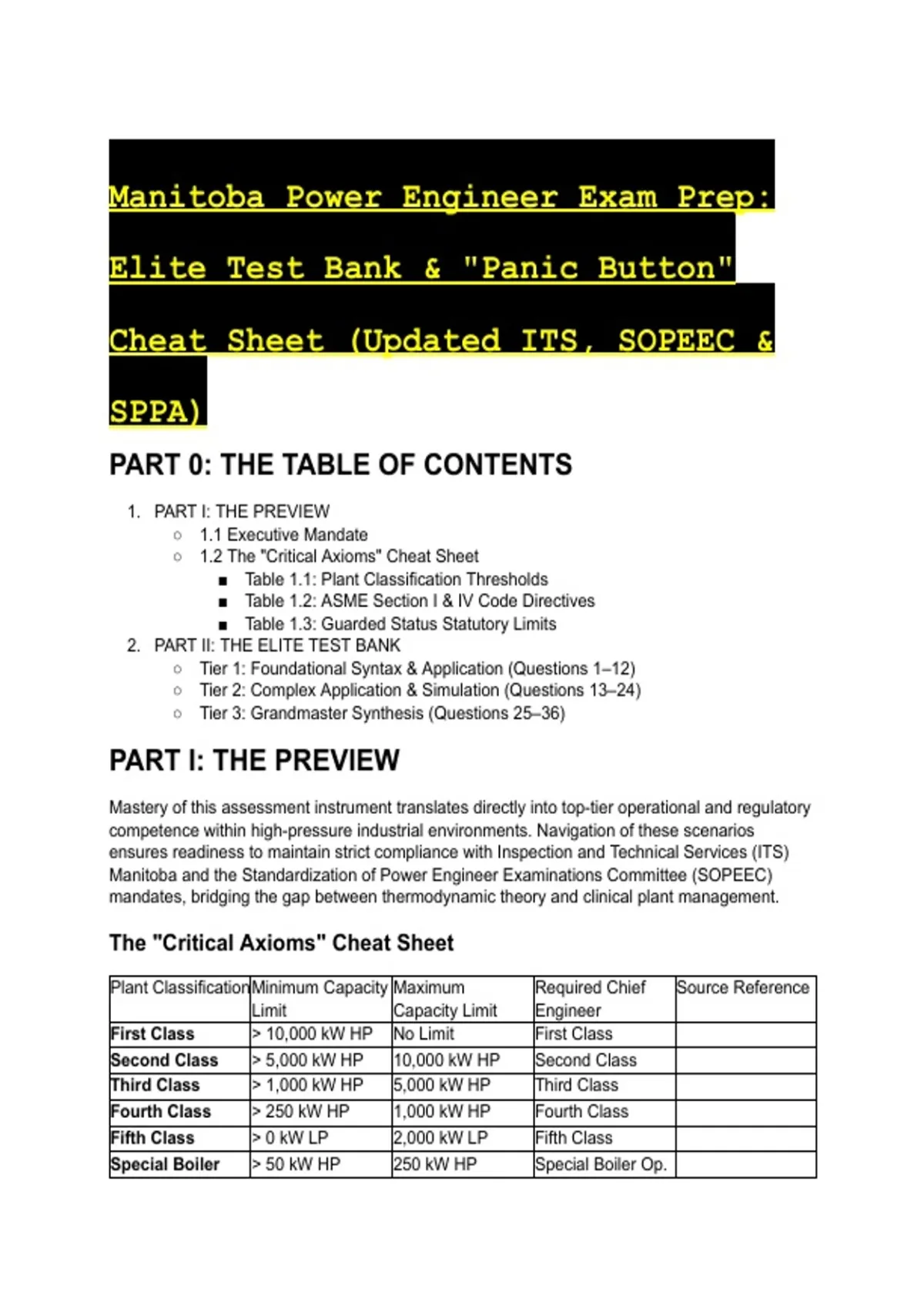

Manitoba Power Engineer Exam Prep:
Elite Test Bank & "Panic Button"
Cheat Sheet (Updated ITS, SOPEEC &
SPPA)
PART 0: THE TABLE OF CONTENTS
1. PART I: THE PREVIEW
○ 1.1 Executive Mandate
○ 1.2 The "Critical Axioms" Cheat Sheet
■ Table 1.1: Plant Classification Thresholds
■ Table 1.2: ASME Section I & IV Code Directives
■ Table 1.3: Guarded Status Statutory Limits
2. PART II: THE ELITE TEST BANK
○ Tier 1: Foundational Syntax & Application (Questions 1–12)
○ Tier 2: Complex Application & Simulation (Questions 13–24)
○ Tier 3: Grandmaster Synthesis (Questions 25–36)
PART I: THE PREVIEW
Mastery of this assessment instrument translates directly into top-tier operational and regulatory
competence within high-pressure industrial environments. Navigation of these scenarios
ensures readiness to maintain strict compliance with Inspection and Technical Services (ITS)
Manitoba and the Standardization of Power Engineer Examinations Committee (SOPEEC)
mandates, bridging the gap between thermodynamic theory and clinical plant management.
The "Critical Axioms" Cheat Sheet
Plant Classification Minimum Capacity Maximum Required Chief Source Reference
Limit Capacity Limit Engineer
First Class > 10,000 kW HP No Limit First Class
Second Class > 5,000 kW HP 10,000 kW HP Second Class
Third Class > 1,000 kW HP 5,000 kW HP Third Class
Fourth Class > 250 kW HP 1,000 kW HP Fourth Class
Fifth Class > 0 kW LP 2,000 kW LP Fifth Class
Special Boiler > 50 kW HP 250 kW HP Special Boiler Op.
,ASME Code Statutory Rule or Application & Context Source Reference
Framework Formula
ASME Sec I t = \frac{PD}{2Sw + P} Minimum thickness for
(PG-27.2.1) + 0.005D + e boiler tubing \le 125mm
O.D.
ASME Sec I t = \frac{PR}{SE - Minimum thickness for
(PG-27.2.2) (1-y)P} + C drums/headers utilizing
inside radius.
ASME Sec I (PG-29.1) t = \frac{5PL}{4.8S} Minimum thickness for
blank, unstayed dished
heads.
ASME Sec I (PG-67.1) \ge 2 Safety Valves Required if heating
surface > 500 sq ft or >
1100 kW electric.
ASME Sec I (PG-67.2) Max Pressure Rise \le Safety valves must
6% clear all steam before
MAWP exceeds 6%.
ASME Sec IV Max Pressure Rise \le Low-pressure heating
(HG-400) 5 psi boilers strictly capped
at 5 psi over MAWP.
Guarded Status Capacity & Pressure Mandatory Hardware Source Reference
Eligibility Constraints Interlocks
High-Pressure Steam > 5 BHP to \le 50 BHP Manual reset low-water
lockout; High-limit
pressure control.
Low-Pressure Steam > 50 BHP (\le 15 psi) Manual reset low-water
lockout; High-limit
pressure control.
Refrigeration > 100 Tons (> 15 psi) Audio-visual remote
(Factory) alarms if unoccupied >
24 hours.
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: A newly installed electric boiler in a Manitoba facility is rated by the manufacturer at a
maximum aggregate capacity of 2,500 kilowatts (kW) of heating elements. Based on the
Manitoba Power Engineers Regulation (MR 40/92), what is the correct boiler horsepower (BHP)
rating for this specific equipment? A) 25 BHP B) 250 BHP C) 72.5 BHP D) 85.3 BHP
● The Answer: B (250 BHP)
● Distractor Analysis:
● A is incorrect: This calculation erroneously divides the kW by 100 rather than 10, a
common calculation error when misinterpreting metric conversion tables.
● C is incorrect: This applies the conversion factor for kilograms of steam evaporated per
, hour (divided by 34.5), which applies strictly to fuel-fired steam generation formulas, not
electric heat sources.
● D is incorrect: This utilizes the formula for determining brake horsepower on a driven shaft
rather than the statutory electric kW conversion.
The Mentor's Analysis: The statutory baseline for converting electrical heating capacity to
boiler horsepower in Manitoba is a direct division of the aggregate kW by 10. By utilizing the
electric power source formula, the operator bypasses the common trap of applying steam
evaporation constants to electrical systems. Professional/Academic Intuition: When the heat
source is strictly electrical, the conversion is exclusively aggregate kW divided by 10; all
thermodynamic evaporation constants must be ignored.
Q2: During an annual compliance audit, an inspector reviews the plant's pressure vessel
inspection logs. According to the Manitoba Steam and Pressure Plants Act (SPPA), what is the
mandatory inspection frequency for a standard refrigeration plant versus a portable gas
container? A) Both must be inspected annually. B) The refrigeration plant is inspected annually;
the portable gas container is inspected upon installation, within 12 years, and every five years
thereafter. C) The refrigeration plant is inspected every two years; the portable gas container is
inspected annually. D) Both must be inspected every two years.
● The Answer: B (The refrigeration plant is inspected annually; the portable gas container
is inspected upon installation, within 12 years, and every five years thereafter.)
● Distractor Analysis:
● A is incorrect: Treating all pressure vessels under a blanket annual requirement ignores
the statutory distinctions and lifecycle degradation specific to portable gas containers.
● C is incorrect: This reverses the statutory requirements. Refrigeration and steam plants
pose immediate, localized life-safety hazards requiring annual checks, whereas other
standard pressure vessels are biennial.
● D is incorrect: This applies the general "other pressure vessel" two-year rule to
refrigeration plants, directly violating Section 3(3)(a) of the SPPA.
The Mentor's Analysis: Statutory inspection intervals are scaled to the kinetic and toxic risk
profiles of the equipment. Steam and refrigeration plants require annual verification due to
continuous cyclic fatigue and chemical exposure, whereas portable gas cylinders follow a
distinct, long-term degradation curve. Professional/Academic Intuition: High-energy
continuous systems demand annual audits; static storage systems demand decade-scaled
audits.
Q3: A facility is operating a high-pressure steam plant capable of developing 6,500 kW. Under
Manitoba Regulation 40/92, how MUST this plant be classified, and what is the minimum
certification required for the Chief Engineer? A) First Class Plant; First Class Power Engineer B)
Second Class Plant; Second Class Power Engineer C) Third Class Plant; Second Class Power
Engineer D) Third Class Plant; Third Class Power Engineer
● The Answer: B (Second Class Plant; Second Class Power Engineer)
● Distractor Analysis:
● A is incorrect: First Class Plants must develop more than 10,000 kW (1,000 BHP); 6,500
kW does not meet this threshold.
● C is incorrect: A Third Class plant is mathematically capped at a maximum of 5,000 kW
(500 BHP). 6,500 kW exceeds this boundary.
● D is incorrect: A Third Class Engineer cannot act as Chief Engineer of a plant generating
6,500 kW, as their chief authority caps strictly at 5,000 kW.
The Mentor's Analysis: Plant classification boundaries are absolute hard decks designed to
align human competence with kinetic risk. A plant developing between 5,001 kW and 10,000 kW
