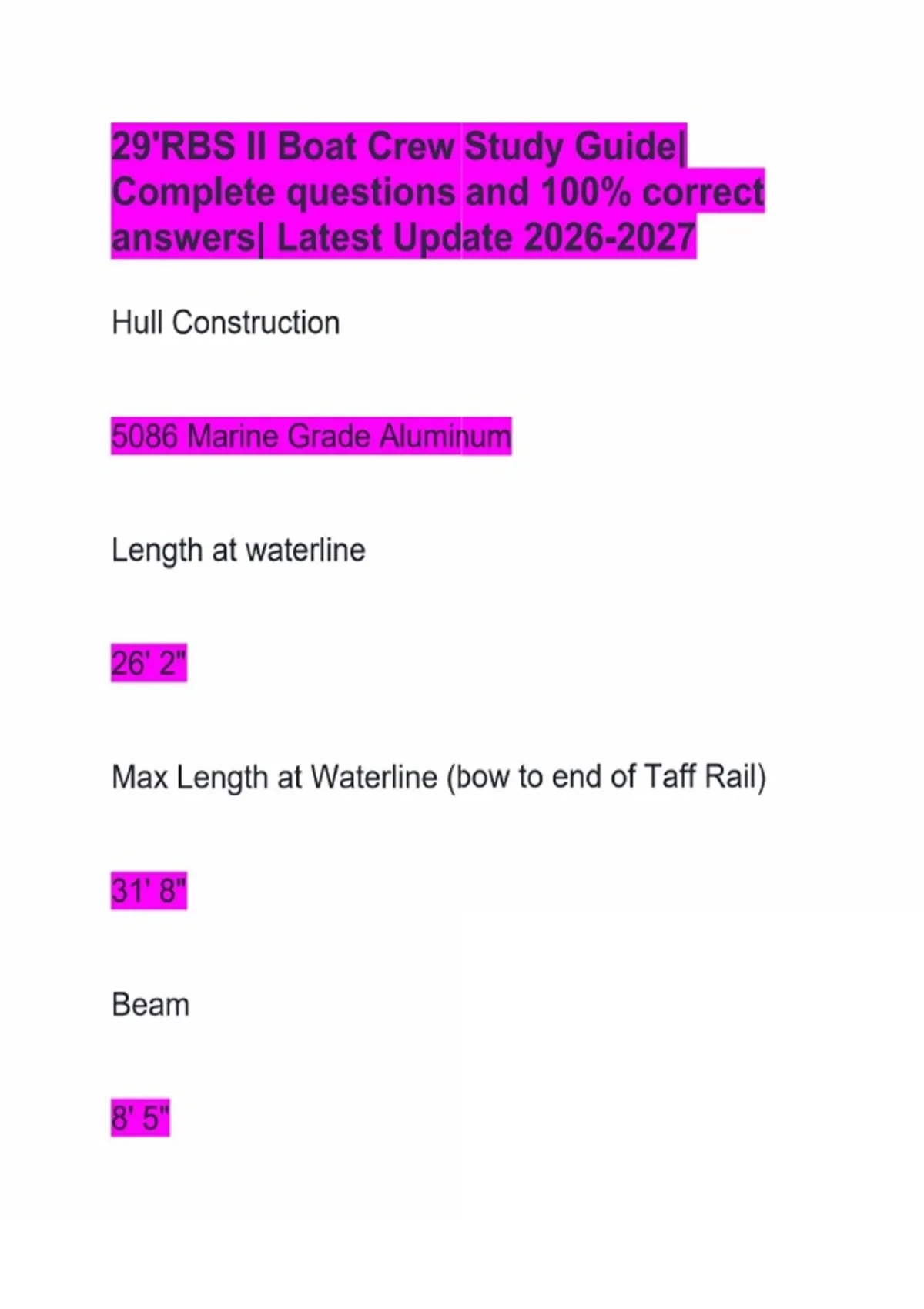

29'RBS II Boat Crew Study Guide| Complete questions and 100% correct answers| Latest Update
29'RBS II Boat Crew Study Guide| Complete questions and 100% correct answers| Latest Update Hull Construction 5086 Marine Grade Aluminum Length at waterline 26' 2" Max Length at Waterline (bow to end of Taff Rail) 31' 8" Beam 8' 5" Transducer offset to lowered outboard 18" Operational Draft (DIW with engines vertical) 2' 9" Operational Draft (DIW with engines raised) 1' 10" Highest fixed point above waterline (mast up) (mast down) 9' 10" 7' 10" Highest Fixed Point when Trailering (Mast Down) 10' 6" Crew capacity (Additional Seats) 4 (2) Total Person on Board Capacity 10 Fuel Capacity 110 gallons Diesel Fuel 3 gallons Propulsion Twin Honda 225 hp 4 stroke outboards Propellers 15 3/8 X 18P, 3 blade propeller (counter rotating) Oil Capacity 8 quarts 10w30 Max Speed 45 knots at 6000 RPM Cruising Speed 25 kts at 3250 rpm Max range at cruising speed 200 NM Operating outside air temperature 0-135 degrees Operating Water Temperature 28-105 degrees Maximum Winds 25 knots Maximum Seas 6 feet Maximum Towing Capacity
