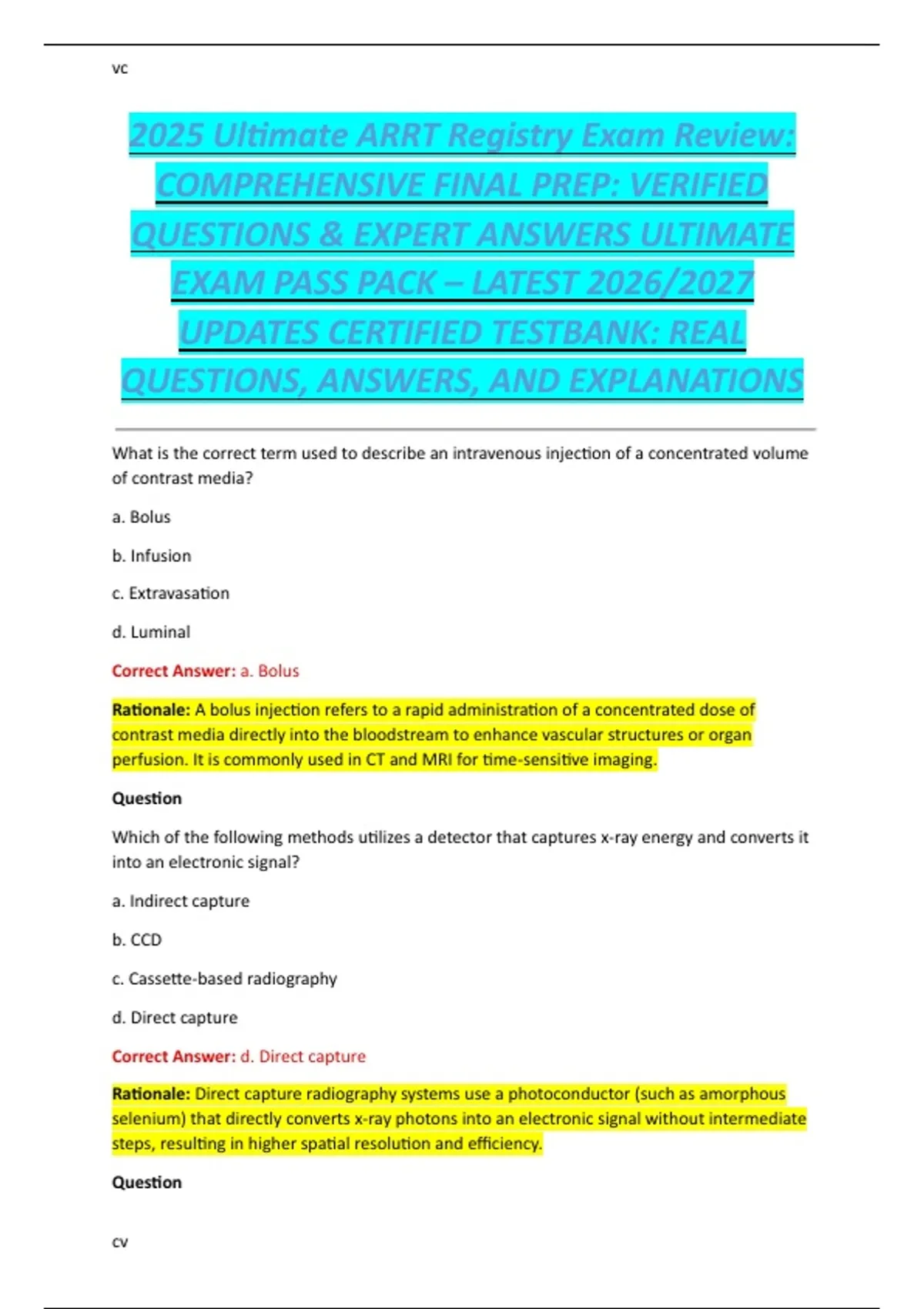

2025 Ultimate ARRT Registry Exam Review: COMPREHENSIVE FINAL PREP: VERIFIED QUESTIONS & EXPERT ANSWERS ULTIMATE EXAM PASS PACK – LATEST 2026/2027 UPDATES CERTIFIED TESTBANK: REAL QUESTIONS, ANSWERS, AND EXPLANATIONS

What is the correct term used to describe an intravenous injection of a concentrated volume of contrast media? a. Bolus b. Infusion c. Extravasation d. Luminal Correct Answer: a. Bolus Rationale: A bolus injection refers to a rapid administration of a concentrated dose of contrast media directly into the bloodstream to enhance vascular structures or organ perfusion. It is commonly used in CT and MRI for time-sensitive imaging. Question Which of the following methods utilizes a detector that captures x-ray energy and converts it into an electronic signal? a. Indirect capture b. CCD c. Cassette-based radiography d. Direct capture Correct Answer: d. Direct capture Rationale: Direct capture radiography systems use a photoconductor (such as amorphous selenium) that directly converts x-ray photons into an electronic signal without intermediate steps, resulting in higher spatial resolution and efficiency. Question The energy of a characteristic x-ray photon created when an L shell electron fills a K shell vacancy in a tungsten atom will have which of the following energies? a. 69.5 keV b. 57.5 keV c. 91.5 keV d. 12 keV Correct Answer: b. 57.5 keV Rationale: The energy of a characteristic x-ray photon is calculated by subtracting the binding energy of the L shell (12 keV) from the K shell (69.5 keV), yielding 57.5 keV. Question Identify the position that will place the positive contrast agent in the body of the stomach and pylorus during a double contrast upper GI exam: a. Recumbent LPO b. Supine c. Recumbent RPO d. Prone Correct Answer: d. Prone Rationale: The prone position allows gravity to move the contrast into the body and pyloric region of the stomach, providing optimal visualization during a double contrast upper GI study. Question Which position/projection will best demonstrate the broad aspect of the frontal air sinus? a. AP b. Lateral c. PA d. SMV Correct Answer: c. PA Rationale: A PA projection places the frontal sinuses closest to the image receptor and aligns them with the central ray, providing the most accurate and undistorted view of the broad frontal sinus region. Question Which position will best demonstrate the right axillary portion of the ribs? a. LAO b. RPO c. LPO d. RAO Correct Answer: b. RPO Rationale: In the RPO (Right Posterior Oblique) position, the right side is closest to the image receptor, allowing for optimal visualization of the right axillary ribs. Question Which position will emphasize the mucosal lining of the medial wall of the descending colon during a lower GI exam? a. Right lateral decubitus b. Left lateral decubitus c. Right ventral decubitus d. Left dorsal decubitus Correct Answer: b. Left lateral decubitus Rationale: In the left lateral decubitus position, air rises to the medial side of the descending colon, highlighting mucosal detail when using double contrast (air and barium). Question Which projection of the wrist will best demonstrate the interspaces of the carpal bones? a. PA b. Oblique c. AP d. Lateral Correct Answer: c. AP Rationale: An AP projection of the wrist reduces magnification of carpal bones and improves visualization of intercarpal joint spaces compared to the PA view. Question An image is acquired with computed radiography using which of the following methods? a. A cassette that is electronically charged b. Conventional film/screen processing c. The use of a storage phosphor d. None of the above Correct Answer: c. The use of a storage phosphor Rationale: Computed radiography (CR) uses imaging plates coated with storage phosphor crystals that trap electrons after x-ray exposure. These are then scanned by a laser to produce a digital image. Question A transformer constructed with 10,000 primary turns and 2,500 secondary turns will yield an output voltage of _____ when supplied with 210 volts. a. 2710 volts b. 52.5 volts c. 840 volts d. 525 volts Correct Answer: b. 52.5 volts Rationale: This is a step-down transformer. Using the transformer law: $$frac{V_s}{V_p} = frac{N_s}{N_p}$$ $$frac{V_s}{210} = frac{2500}{10000}$$ $$V_s = 210 times 0.25 = 52.5text{ volts}$$ Question Which of the following circuit components is considered to be the source for kVp? a. Step-up transformer b. Autotransformer c. Step-down transformer d. High voltage transformer Correct Answer: b. Autotransformer Rationale: The autotransformer provides the voltage selection to the x-ray tube and is the initial source that determines the kVp applied during the exposure. Question Which of the following medications is administered to a patient during an allergic reaction? a. Adenocard b. Intropin c. Lasix d. Decadron Correct Answer: d. Decadron Rationale: Decadron is a corticosteroid used to reduce inflammation during moderate to severe allergic reactions. It helps stabilize cell membranes and suppress immune response. Question If the improper body part is selected from the exam menu, which of the following may result? a. There will be no image b. There may be image misinterpretation c. Will exhibit proper contrast and density d. Image sharpness will not be affected Correct Answer: b. There may be image misinterpretation Rationale: Incorrect body part selection can lead to errors in exposure parameters, image orientation, and annotation, potentially causing misdiagnosis or confusion in interpretation. Question Which of the following combinations are needed in a digital radiography system to produce an image? a. Intensifying screen & TFT b. X-ray absorber & CCD c. Storage phosphor plate & CCD d. Storage phosphor plate & TFT Correct Answer: b. X-ray absorber & CCD Rationale: In digital systems using CCD technology, x-ray photons are first absorbed by a scintillator (e.g., cesium iodide), which emits light. The CCD then converts this light into an electrical signal to form a digital image. Question Exposure latitude is also known as which of the following? a. dynamic range b. spatial resolution c. subject contrast d. characteristic response Correct Answer: a. dynamic range Rationale: Exposure latitude refers to the range of exposures over which an image receptor can produce an acceptable image. In digital systems, this is directly related to the wide dynamic range of the detector. Question All of the following components are within the glass/metal enclosure of the x-ray tube except... a. anode b. stators c. rotors d. filament wires Correct Answer: b. stators Rationale: The stators are electromagnets located outside the glass or metal vacuum enclosure of the x-ray tube. They utilize an induction motor framework to turn the rotor, which is located inside the tube enclosure.
