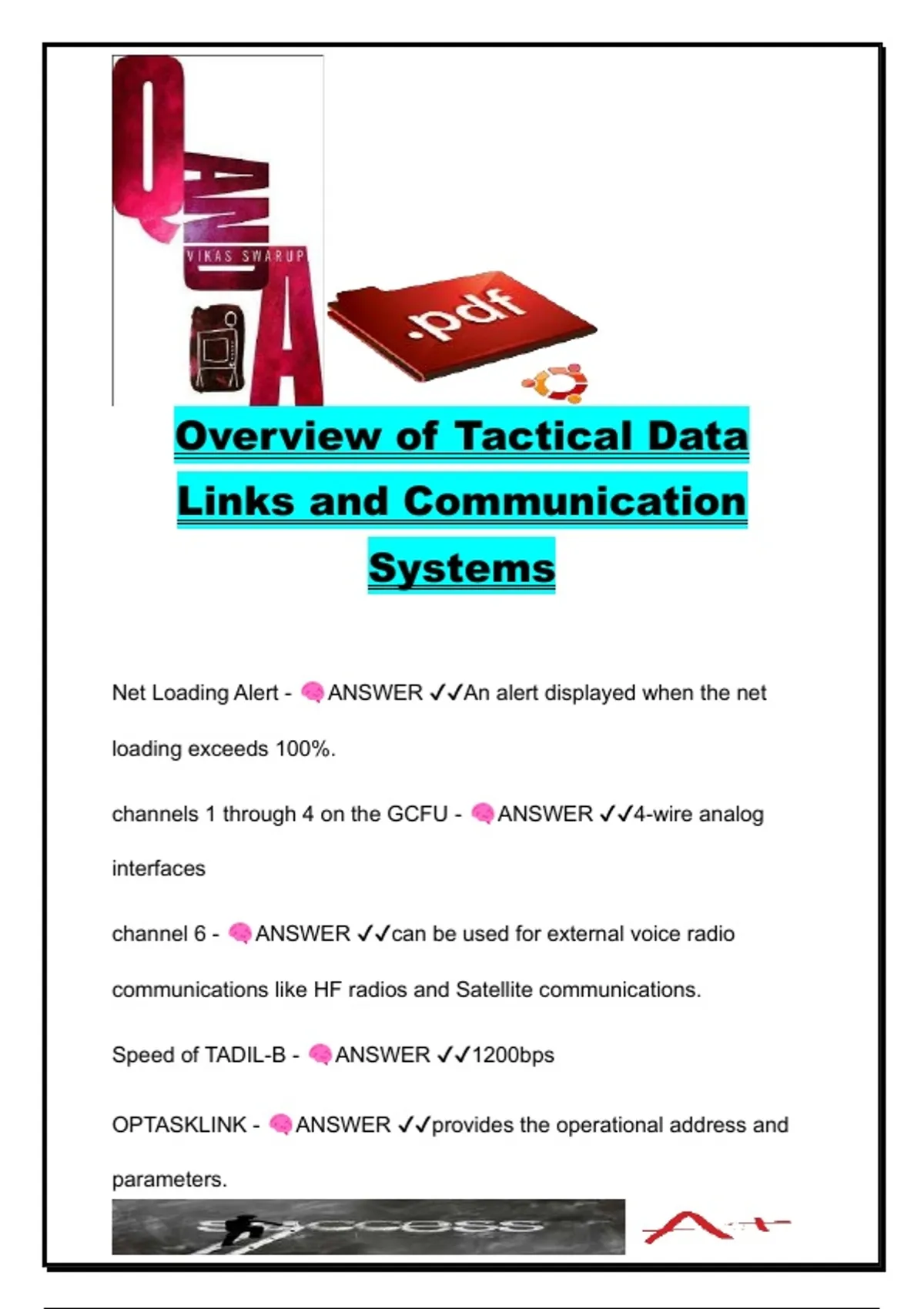

Overview of Tactical Data
Links and Communication
Systems
Net Loading Alert - ANSWER ✔✔An alert displayed when the net
loading exceeds 100%.
channels 1 through 4 on the GCFU - ANSWER ✔✔4-wire analog
interfaces
channel 6 - ANSWER ✔✔can be used for external voice radio
communications like HF radios and Satellite communications.
Speed of TADIL-B - ANSWER ✔✔1200bps
OPTASKLINK - ANSWER ✔✔provides the operational address and
parameters.
,tab ____ - ANSWER ✔✔In order to send PADIL information to the
BCP, the ECS operator must allow COMMO to the BCP in tab 2.
tab 68 - ANSWER ✔✔The ICC operator would use to change the
RRT ports to either Synchronous or Asynchronous.
A 26-pair cable - ANSWER ✔✔is used to link the ICC GCFU to the
TCS GCFU.
CX-11230 cables - ANSWER ✔✔may be used to link Patriot shelters
that are within one mile of each other.
signal delay of _______ seconds - ANSWER ✔✔or greater will
prevent the use of PADIL.
0- ANSWER ✔✔is the signal delay in seconds that will prevent the
use of PADIL.
ICC - ANSWER ✔✔is the gateway to outside communications for
Patriot Battalions.
PADIL - ANSWER ✔✔is a secure, point-to-point, full duplex link used
only by Patriot to exchange information between Battalion and Batteries.
6&6- ANSWER ✔✔is the maximum number of Firing Batteries and
CRGs forming the UHF net for one Patriot Battalion.
, 95 - ANSWER ✔✔percent is the goal of commo net planning to keep
Link Loading at or below.
IDOCS - ANSWER ✔✔is the system that provides for automation of
EO circuits.
CNLP - ANSWER ✔✔stands for Current Net Load Percentage.
MIDS - ANSWER ✔✔operates from 969 to 1206 mhz.
maximum number of vertical shots a patriot unit can shoot -
ANSWER ✔✔2 (from an AMG).
red patch panel - ANSWER ✔✔provides flexibility and options for
UNIQUE operational requirements.
CE2 systems - ANSWER ✔✔use an 8 bit source, which is numbered
0-255.
JTT - ANSWER ✔✔is the apparatus that receives IBS-I data and
provides intel data for the BCP.
4 message structures of TADIL-J - ANSWER ✔✔Standard Double
Pulse, Packed 2 Single Pulse, Packed 2 Double Pulse, Packed 4 Single
Pulse.
