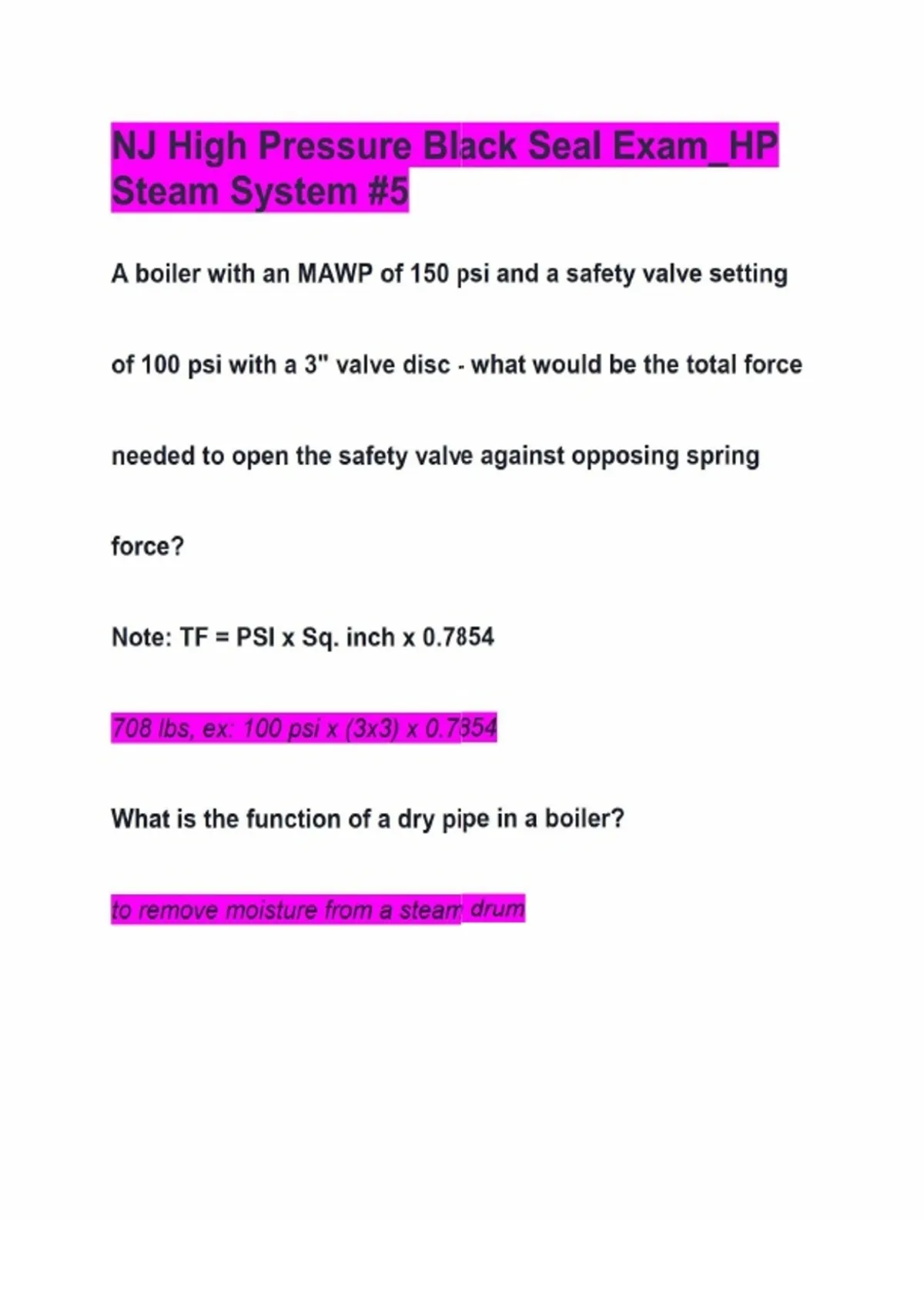

NJ High Pressure Black Seal Exam_HP Steam System #5

NJ High Pressure Black Seal Exam_HP Steam System #5 A boiler with an MAWP of 150 psi and a safety valve setting of 100 psi with a 3" valve disc - what would be the total force needed to open the safety valve against opposing spring force? Note: TF = PSI x Sq. inch x 0.7854 708 lbs, ex: 100 psi x (3x3) x 0.7854 What is the function of a dry pipe in a boiler? to remove moisture from a steam drum A safety valve data nameplate suggests that the orifice opening on the valve is 1.5 inches w/ a set pressure of 98 psig. What's the total force acting on the valve? NOTE: TF = PSI x Sq. Inch x 0.7854 ex: 98 x (1.5 x 1.5) x 0.7854 173 lbs 3 multiple choice options The steam pressure on a safety valve acts upon upperside of the valve disc, which is held down upon the seat by a spring that pushes down. false 1 multiple choice option As the firing rate increases in a boiler equipped with a convection type superheater, the steam temperature:
