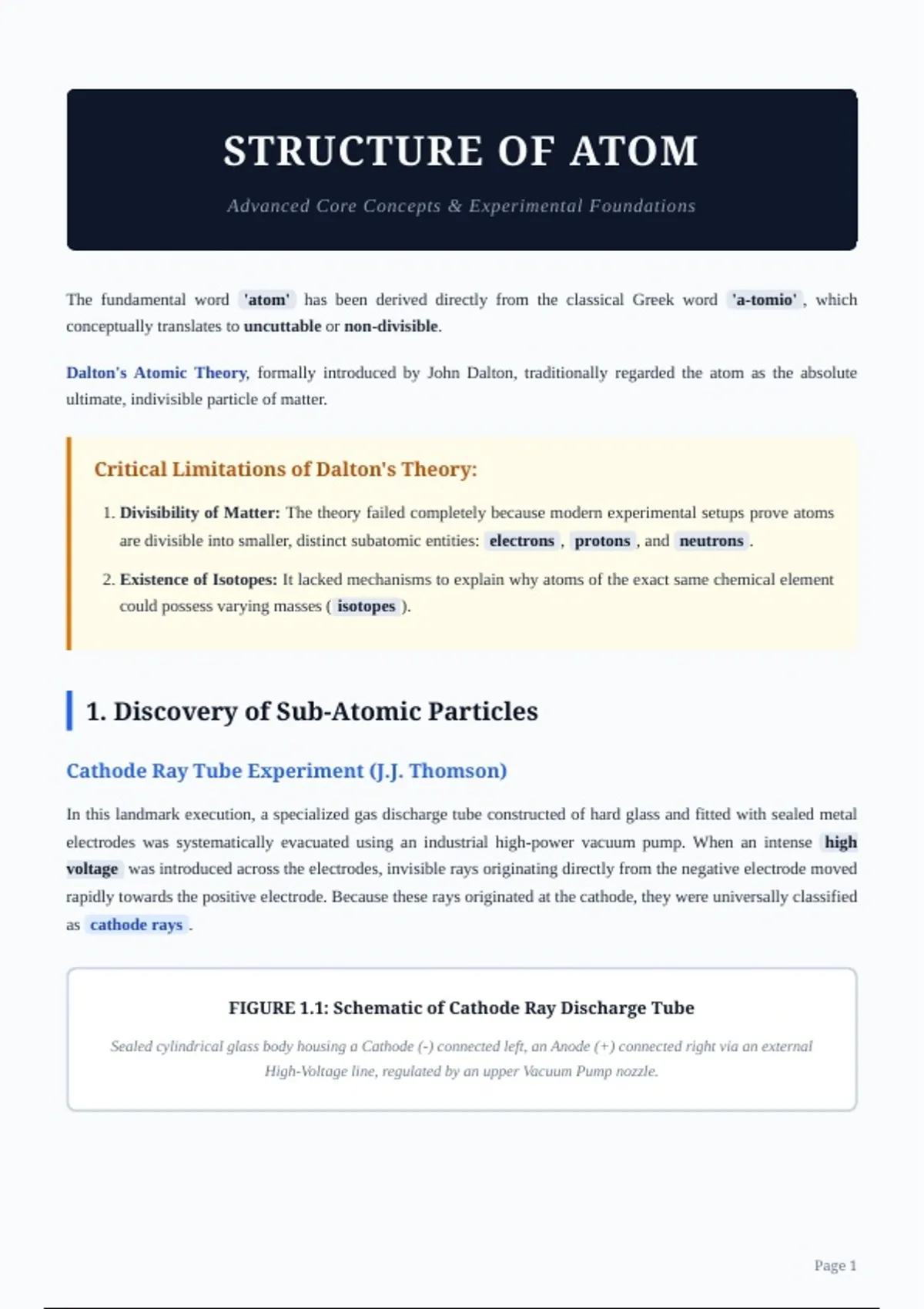

STRUCTURE OF ATOM
Advanced Core Concepts & Experimental Foundations
The fundamental word 'atom' has been derived directly from the classical Greek word 'a-tomio' , which
conceptually translates to uncuttable or non-divisible.
Dalton's Atomic Theory, formally introduced by John Dalton, traditionally regarded the atom as the absolute
ultimate, indivisible particle of matter.
Critical Limitations of Dalton's Theory:
1. Divisibility of Matter: The theory failed completely because modern experimental setups prove atoms
are divisible into smaller, distinct subatomic entities: electrons , protons , and neutrons .
2. Existence of Isotopes: It lacked mechanisms to explain why atoms of the exact same chemical element
could possess varying masses ( isotopes ).
1. Discovery of Sub-Atomic Particles
Cathode Ray Tube Experiment (J.J. Thomson)
In this landmark execution, a specialized gas discharge tube constructed of hard glass and fitted with sealed metal
electrodes was systematically evacuated using an industrial high-power vacuum pump. When an intense high
voltage was introduced across the electrodes, invisible rays originating directly from the negative electrode moved
rapidly towards the positive electrode. Because these rays originated at the cathode, they were universally classified
as cathode rays .
FIGURE 1.1: Schematic of Cathode Ray Discharge Tube
Sealed cylindrical glass body housing a Cathode (-) connected left, an Anode (+) connected right via an external
High-Voltage line, regulated by an upper Vacuum Pump nozzle.
Page 1
, Proven Properties of Cathode Rays:
• They systematically propagate forward in straight lines.
• They emerge perfectly perpendicular relative to the starting cathode surface plane.
• Their core behavioral properties remain entirely independent of the choices of metal electrodes or the
specific identity of the residual gas contained inside the vacuum.
• They exhibit visible physical deflection under external magnetic and electric fields .
• They decisively carry an absolute negative electrical charge .
• They consist of tiny particulate material corpuscles possessing measurable kinetic energy.
Experimental Conclusion: Cathode rays are composed of an uninterrupted stream of highly energetic, invisible,
negatively charged material corpuscles structurally classified as electrons .
2. Quantitative Metrics of the Electron
Charge-to-Mass Ratio (e/me)
By executing highly calibrated simultaneous electrical and magnetic deflections, J.J. Thomson calculated the
absolute charge-to-mass ratio for an individual electron:
e / me = 1.758820 × 1011 C kg-1
Where:
me represents the total rest mass of an electron in kilograms (kg).
e represents the absolute magnitude of electrical charge in Coulombs (C).
Note: Since electrons intrinsically possess a negative charge, the charge vector is represented mathematically as -e.
Millikan's Oil Drop Experiment (Absolute Charge)
Physicist R.A. Millikan successfully designed the delicate Oil Drop Experiment to quantify the exact unit
charge on an electron. He conclusively established the baseline value:
e = -1.602176 × 10-19 C
Page 2
