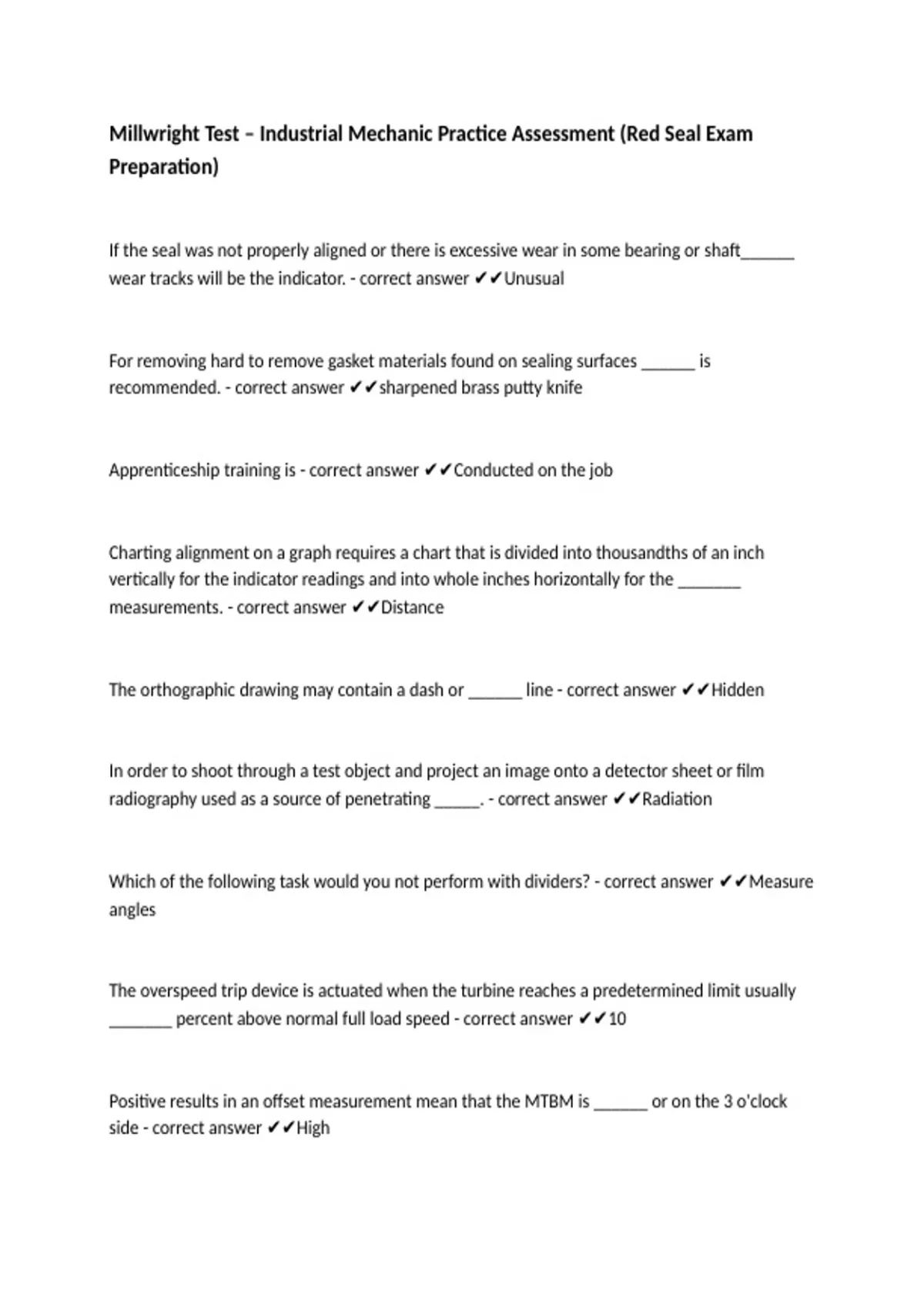

Millwright Test – Industrial Mechanic Practice Assessment (Red Seal Exam
Preparation)
If the seal was not properly aligned or there is excessive wear in some bearing or shaft______
wear tracks will be the indicator. - correct answer ✔✔Unusual
For removing hard to remove gasket materials found on sealing surfaces ______ is
recommended. - correct answer ✔✔sharpened brass putty knife
Apprenticeship training is - correct answer ✔✔Conducted on the job
Charting alignment on a graph requires a chart that is divided into thousandths of an inch
vertically for the indicator readings and into whole inches horizontally for the _______
measurements. - correct answer ✔✔Distance
The orthographic drawing may contain a dash or ______ line - correct answer ✔✔Hidden
In order to shoot through a test object and project an image onto a detector sheet or film
radiography used as a source of penetrating _____. - correct answer ✔✔Radiation
Which of the following task would you not perform with dividers? - correct answer ✔✔Measure
angles
The overspeed trip device is actuated when the turbine reaches a predetermined limit usually
_______ percent above normal full load speed - correct answer ✔✔10
Positive results in an offset measurement mean that the MTBM is ______ or on the 3 o'clock
side - correct answer ✔✔High
,Coupling gap is set and then there is measured - correct answer ✔✔Offset misalignment
In a hydraulic system movement depends on - correct answer ✔✔Pressure
Fractional dimensions are used on objects ____ - correct answer ✔✔Such as furniture or utility
items
If the cause of the problem is not immediately understood the process of _____ is often the
procedure of choice - correct answer ✔✔Elimination
When applying sealant to the sealing glands flanges keep the sealant away from the inside
edges of the flange by at least _______ inch - correct answer ✔✔3/16
A stroboscope is triggered by _______ - correct answer ✔✔Transducer
The page of threaded fasteners is measured with a ______ gauge. - correct answer ✔✔Thread
Liquid penetrant highlights flaws in reveals ______. - correct answer ✔✔Surface cracks
The tool used to cut external threads on a boat or rod is a____ - correct answer ✔✔Die
A bill of materials may include information on ______ and other reference information - correct
answer ✔✔Special processes
Engaged gears always have the same ______ - correct answer ✔✔Surface speed
Elevation of equipment is usually found in the - correct answer ✔✔General arrangements
, Inspect the police rollers in idlers for unevenness or _____ - correct answer ✔✔Vibrations
When cutting then steel with oxy fuel cutting equipment all the torch say that the temp is
pointing in the direction the torch is traveling at a ______ angle - correct answer ✔✔15-20
degrees
Labyrinth seals work best with materials such as - correct answer ✔✔Grease
Lubrication is the application of any substances that reduces _____ - correct answer ✔✔Friction
When the dial indicator is mounted on the complex reverse driven coupling jig the indicator is
registered on the ____ - correct answer ✔✔Driver coupling Jig
Pipe should be stored ____ - correct answer ✔✔racks
The most common type of ball bearing is a _____ bearing - correct answer ✔✔Single deep
groove radial
Couplings that are installed after the driver and driven shafts have been aligned and the
equipment has been fastened into position are _____ couplings - correct answer ✔✔Split
When two or more numbers are multiplied to make another number they are called ______ of
the third number - correct answer ✔✔Factors
The continuous reading dial indicator starts at zero and _____ - correct answer ✔✔Increases
clockwise
