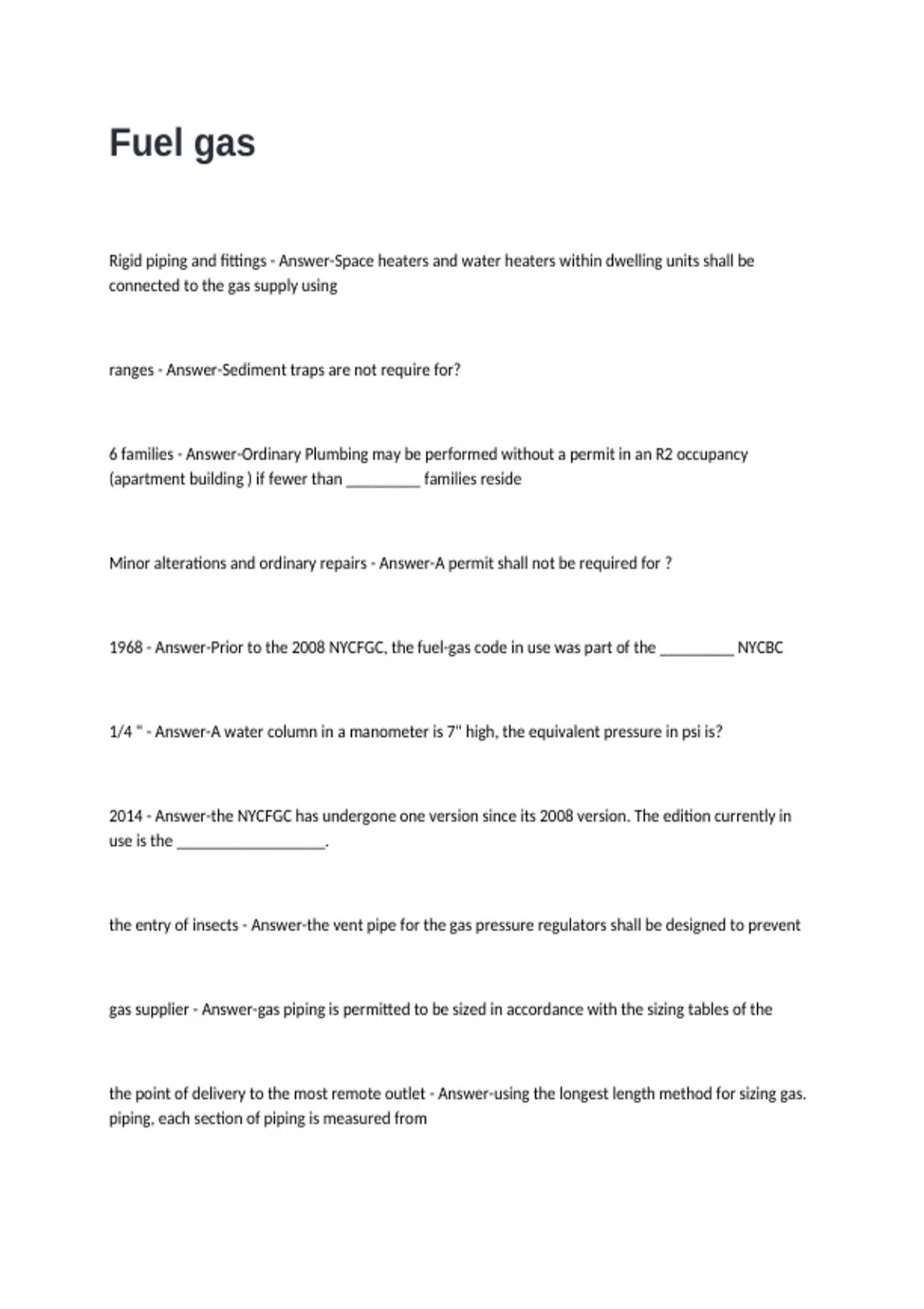

Fuel gas
Rigid piping and fittings - Answer-Space heaters and water heaters within dwelling units shall be
connected to the gas supply using
ranges - Answer-Sediment traps are not require for?
6 families - Answer-Ordinary Plumbing may be performed without a permit in an R2 occupancy
(apartment building ) if fewer than _________ families reside
Minor alterations and ordinary repairs - Answer-A permit shall not be required for ?
1968 - Answer-Prior to the 2008 NYCFGC, the fuel-gas code in use was part of the _________ NYCBC
1/4 " - Answer-A water column in a manometer is 7" high, the equivalent pressure in psi is?
2014 - Answer-the NYCFGC has undergone one version since its 2008 version. The edition currently in
use is the __________________.
the entry of insects - Answer-the vent pipe for the gas pressure regulators shall be designed to prevent
gas supplier - Answer-gas piping is permitted to be sized in accordance with the sizing tables of the
the point of delivery to the most remote outlet - Answer-using the longest length method for sizing gas.
piping, each section of piping is measured from
, 30 ft - Answer-a newly installed 3'' gas line will require purging before being placed into service if longer
than ______ feet
1/100 - Answer-digital gages used for gas tests shall have a minimum reading of _________ psi
none - Answer-the largest diameter threaded fitting that can be used in a gas distribution system
operating over 3 psig is
never be used - Answer-lamp wick shall _____ in a gas distribution system
4'' - Answer-in a gas distribution system with an operation pressure over 1/2 psig to 5 psig, starting at
what size (inches) must be everything be welded
steel bushing - Answer-the one fitting that cannot be used in gas piping is a _____________
shall not be reused - Answer-used gas fittings _______
3; 6 - Answer-appliances installed at grade level shall be supported at least ______ inches or suspended
at least _____ inches above grade
30'' - Answer-when an appliance is installed on a sloped roof with an edge of more than _____ inches
above grade, a level platform shall be provided for servicing at each side requiring access
4 - Answer-replacement of flexible gas tubing does not require a permit if no greater than ____ feet,
located downstream of the appliances existing gas cock, and not penetrating a wall
350,000 btu's - Answer-a fuel-gas-fired water-heater/boiler may be replaced without a permit in an R3
occupancy (one/two family) if ______ Btu's or less in capacity, the appliances gas cock has not been
moved and the plumber has found the chimney in good operating condition
Rigid piping and fittings - Answer-Space heaters and water heaters within dwelling units shall be
connected to the gas supply using
ranges - Answer-Sediment traps are not require for?
6 families - Answer-Ordinary Plumbing may be performed without a permit in an R2 occupancy
(apartment building ) if fewer than _________ families reside
Minor alterations and ordinary repairs - Answer-A permit shall not be required for ?
1968 - Answer-Prior to the 2008 NYCFGC, the fuel-gas code in use was part of the _________ NYCBC
1/4 " - Answer-A water column in a manometer is 7" high, the equivalent pressure in psi is?
2014 - Answer-the NYCFGC has undergone one version since its 2008 version. The edition currently in
use is the __________________.
the entry of insects - Answer-the vent pipe for the gas pressure regulators shall be designed to prevent
gas supplier - Answer-gas piping is permitted to be sized in accordance with the sizing tables of the
the point of delivery to the most remote outlet - Answer-using the longest length method for sizing gas.
piping, each section of piping is measured from
, 30 ft - Answer-a newly installed 3'' gas line will require purging before being placed into service if longer
than ______ feet
1/100 - Answer-digital gages used for gas tests shall have a minimum reading of _________ psi
none - Answer-the largest diameter threaded fitting that can be used in a gas distribution system
operating over 3 psig is
never be used - Answer-lamp wick shall _____ in a gas distribution system
4'' - Answer-in a gas distribution system with an operation pressure over 1/2 psig to 5 psig, starting at
what size (inches) must be everything be welded
steel bushing - Answer-the one fitting that cannot be used in gas piping is a _____________
shall not be reused - Answer-used gas fittings _______
3; 6 - Answer-appliances installed at grade level shall be supported at least ______ inches or suspended
at least _____ inches above grade
30'' - Answer-when an appliance is installed on a sloped roof with an edge of more than _____ inches
above grade, a level platform shall be provided for servicing at each side requiring access
4 - Answer-replacement of flexible gas tubing does not require a permit if no greater than ____ feet,
located downstream of the appliances existing gas cock, and not penetrating a wall
350,000 btu's - Answer-a fuel-gas-fired water-heater/boiler may be replaced without a permit in an R3
occupancy (one/two family) if ______ Btu's or less in capacity, the appliances gas cock has not been
moved and the plumber has found the chimney in good operating condition
