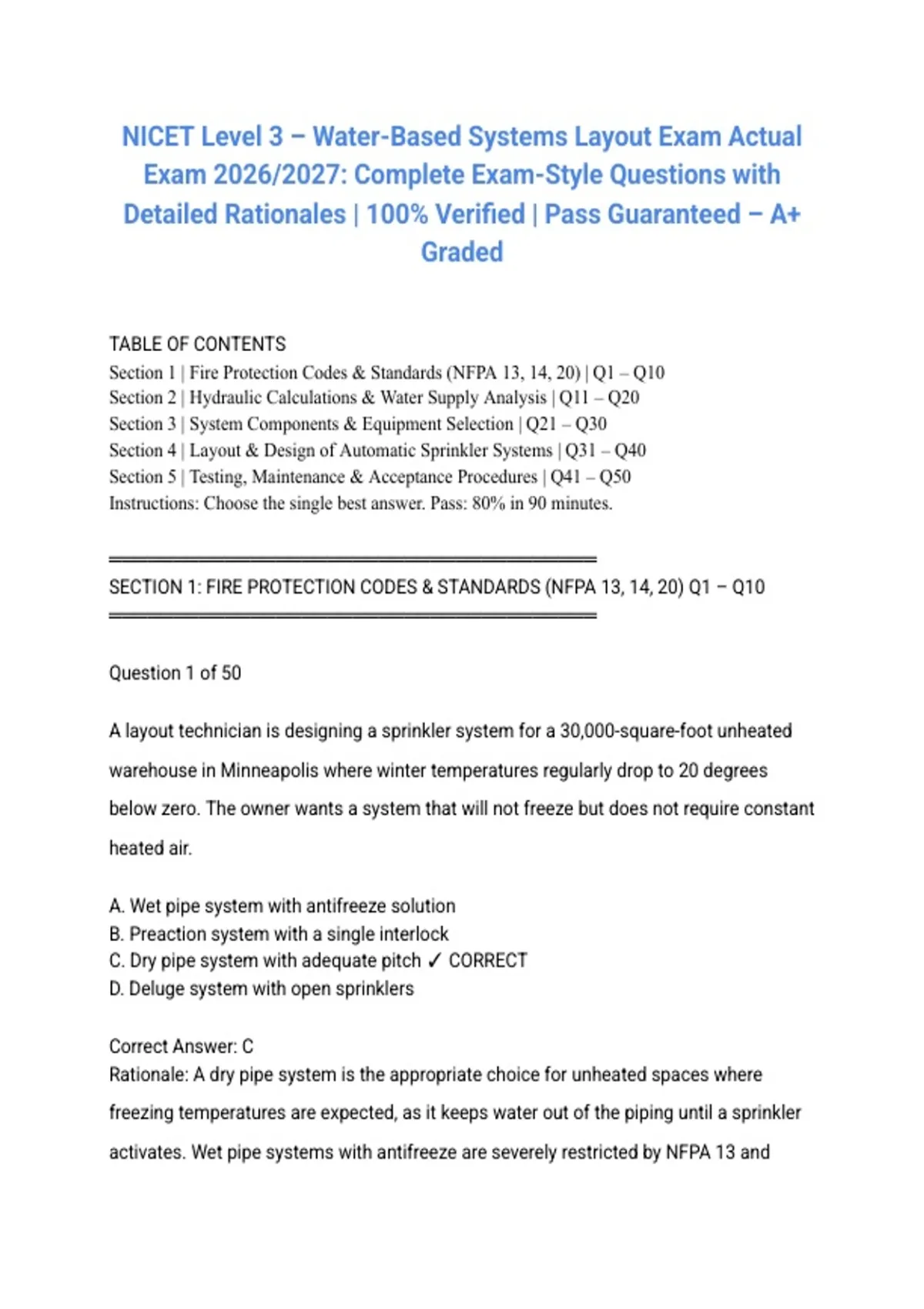

NICET Level 3 – Water-Based Systems Layout Exam Actual
Exam 2026/2027: Complete Exam-Style Questions with
Detailed Rationales | 100% Verified | Pass Guaranteed – A+
Graded
TABLE OF CONTENTS
Section 1 | Fire Protection Codes & Standards (NFPA 13, 14, 20) | Q1 – Q10
Section 2 | Hydraulic Calculations & Water Supply Analysis | Q11 – Q20
Section 3 | System Components & Equipment Selection | Q21 – Q30
Section 4 | Layout & Design of Automatic Sprinkler Systems | Q31 – Q40
Section 5 | Testing, Maintenance & Acceptance Procedures | Q41 – Q50
Instructions: Choose the single best answer. Pass: 80% in 90 minutes.
══════════════════════════════════════
SECTION 1: FIRE PROTECTION CODES & STANDARDS (NFPA 13, 14, 20) Q1 – Q10
══════════════════════════════════════
Question 1 of 50
A layout technician is designing a sprinkler system for a 30,000-square-foot unheated
warehouse in Minneapolis where winter temperatures regularly drop to 20 degrees
below zero. The owner wants a system that will not freeze but does not require constant
heated air.
A. Wet pipe system with antifreeze solution
B. Preaction system with a single interlock
C. Dry pipe system with adequate pitch ✓ CORRECT
D. Deluge system with open sprinklers
Correct Answer: C
Rationale: A dry pipe system is the appropriate choice for unheated spaces where
freezing temperatures are expected, as it keeps water out of the piping until a sprinkler
activates. Wet pipe systems with antifreeze are severely restricted by NFPA 13 and
,generally not practical for large warehouses. Preaction systems are typically reserved
for areas requiring protection against accidental water discharge.
Question 2 of 50
A fire protection designer is reviewing a storage arrangement for a distribution center
handling palletized loads of polystyrene cups packed in corrugated cardboard cartons
on wood pallets.
A. Class III commodity ✓ CORRECT
B. Class I commodity
C. Class IV commodity
D. Group A plastic
Correct Answer: A
Rationale: Polystyrene cups packaged in corrugated cartons constitute a Class III
commodity because the plastic content is Group C and the overall hazard is moderate.
Class I applies to noncombustible products, and Group A plastic would only apply if the
cups were unexpanded or exposed in a high-hazard arrangement. Accurate commodity
classification drives the entire sprinkler design density and spacing.
Question 3 of 50
A designer is verifying standpipe calculations for a four-story office building equipped
with a Class I standpipe system. The most remote hose connection is located on the
fourth floor, and the fire department will use 2.5-inch hose lines.
A. 65 psi
B. 50 psi
C. 75 psi
D. 100 psi ✓ CORRECT
Correct Answer: D
, Rationale: NFPA 14 requires a minimum residual pressure of 100 psi at the most remote
outlet for Class I standpipe systems to ensure adequate hose stream performance. A
pressure of 65 psi is the requirement for Class II systems, not Class I. Designers must
verify that the water supply and fire pump can maintain this pressure at peak demand.
Question 4 of 50
A fire pump is being selected for a high-rise building where the total system demand is
1,250 gpm at 175 psi. The municipal supply provides 1,400 gpm at 45 psi residual
pressure at the pump suction flange.
A. 175 psi
B. 130 psi ✓ CORRECT
C. 220 psi
D. 45 psi
Correct Answer: B
Rationale: The fire pump must provide the net pressure required to boost the municipal
supply to the system demand, which is 175 psi minus 45 psi, equaling 130 psi. Selecting
a pump rated for the total system pressure of 175 psi would over-pressurize the system
when combined with the municipal supply. Accurate net pressure calculation ensures
the pump is neither undersized nor oversized.
Question 5 of 50
A layout technician is designing a wet pipe sprinkler system for a three-story office
building with light hazard occupancy and smooth flat ceilings.
A. 0.30 gpm/sq ft over 2,500 sq ft
B. 0.20 gpm/sq ft over 3,000 sq ft
C. 0.10 gpm/sq ft over 1,500 sq ft ✓ CORRECT
D. 0.15 gpm/sq ft over 4,000 sq ft
Correct Answer: C
