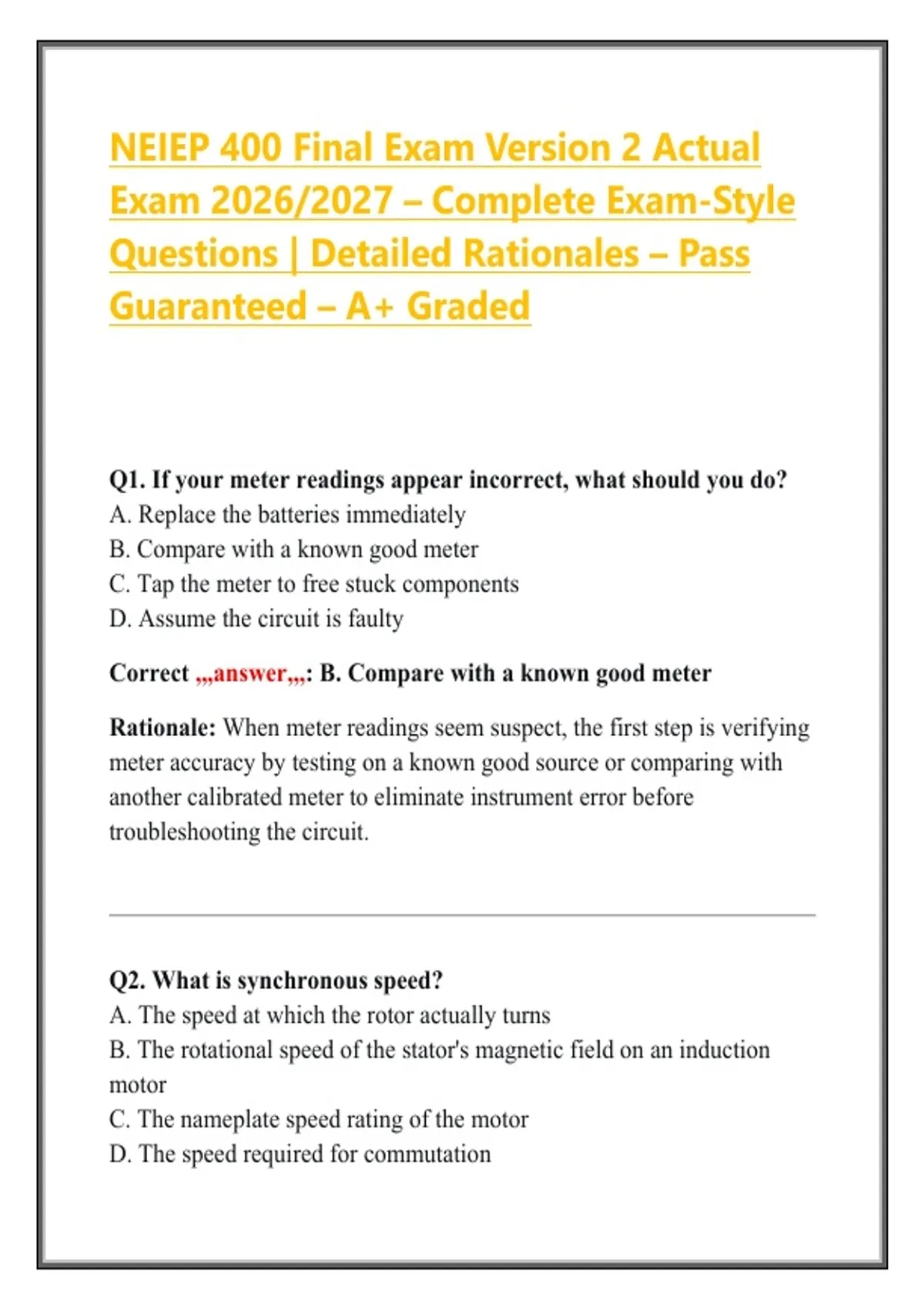

NEIEP 400 Final Exam Version 2 Actual
Exam 2026/2027 – Complete Exam-Style
Questions | Detailed Rationales – Pass
Guaranteed – A+ Graded
Q1. If your meter readings appear incorrect, what should you do?
A. Replace the batteries immediately
B. Compare with a known good meter
C. Tap the meter to free stuck components
D. Assume the circuit is faulty
Correct ,,,answer,,,: B. Compare with a known good meter
Rationale: When meter readings seem suspect, the first step is verifying
meter accuracy by testing on a known good source or comparing with
another calibrated meter to eliminate instrument error before
troubleshooting the circuit.
Q2. What is synchronous speed?
A. The speed at which the rotor actually turns
B. The rotational speed of the stator's magnetic field on an induction
motor
C. The nameplate speed rating of the motor
D. The speed required for commutation
,Correct ,,,answer,,,: B. The rotational speed of the stator's magnetic
field on an induction motor
Rationale: Synchronous speed is the theoretical speed of the rotating
magnetic field produced by the stator windings. It is calculated as Ns =
120f/P, where f is frequency and P is number of poles.
Q3. What is the purpose of interpoles?
A. To increase motor torque at startup
B. To prevent neutral plane shift
C. To reduce armature resistance
D. To increase field strength
Correct ,,,answer,,,: B. To prevent neutral plane shift
Rationale: Interpoles (commutating poles) are placed between main
field poles in DC machines. They produce a magnetic field that
counteracts armature reaction, maintaining the neutral plane and
preventing sparking at the brushes.
Q4. What shifts the neutral plane in the direction of rotation in
generators?
A. Field weakening
B. Armature reaction
C. Brush spring tension
D. Commutator film buildup
Correct ,,,answer,,,: B. Armature reaction
,Rationale: Armature reaction is the distortion of the main magnetic
field caused by current flowing in the armature conductors. This shifts
the neutral plane in the direction of rotation in generators (opposite in
motors).
Q5. What reduces eddy currents in the field pole pieces?
A. Increasing wire gauge
B. Using solid steel cores
C. Laminations
D. Adding copper plating
Correct ,,,answer,,,: C. Laminations
Rationale: Laminations are thin insulated layers stacked together. They
reduce eddy currents by confining circulating currents to individual thin
sheets, minimizing core losses and heating.
Q6. What is saturation?
A. When a circuit draws maximum current
B. When no more magnetic lines can be produced
C. When voltage and current are in phase
D. When the meter reaches full scale
Correct ,,,answer,,,: B. When no more magnetic lines can be
produced
Rationale: Magnetic saturation occurs in ferromagnetic materials when
increasing the magnetizing force (current) produces no proportional
, increase in magnetic flux. The material has reached its maximum
magnetic density capacity.
Q7. What waveform does a commutator produce?
A. Pure sine wave
B. Ripple (unlike slip rings)
C. Square wave
D. Sawtooth wave
Correct ,,,answer,,,: B. Ripple (unlike slip rings)
Rationale: A commutator converts AC generated in armature coils to
pulsating DC (ripple). Slip rings in AC generators maintain AC output,
while the commutator's segmented design creates rectification.
Q8. What should you do when changing meter ranges?
A. Keep the probes connected to the circuit
B. Disconnect the meter from the circuit
C. Turn the meter off and on quickly
D. Increase the range slowly
Correct ,,,answer,,,: B. Disconnect the meter from the circuit
Rationale: Disconnecting the meter before changing ranges prevents
damage to the meter movement and protects the user from potential
arcing or transient voltages that could occur during range switching.
