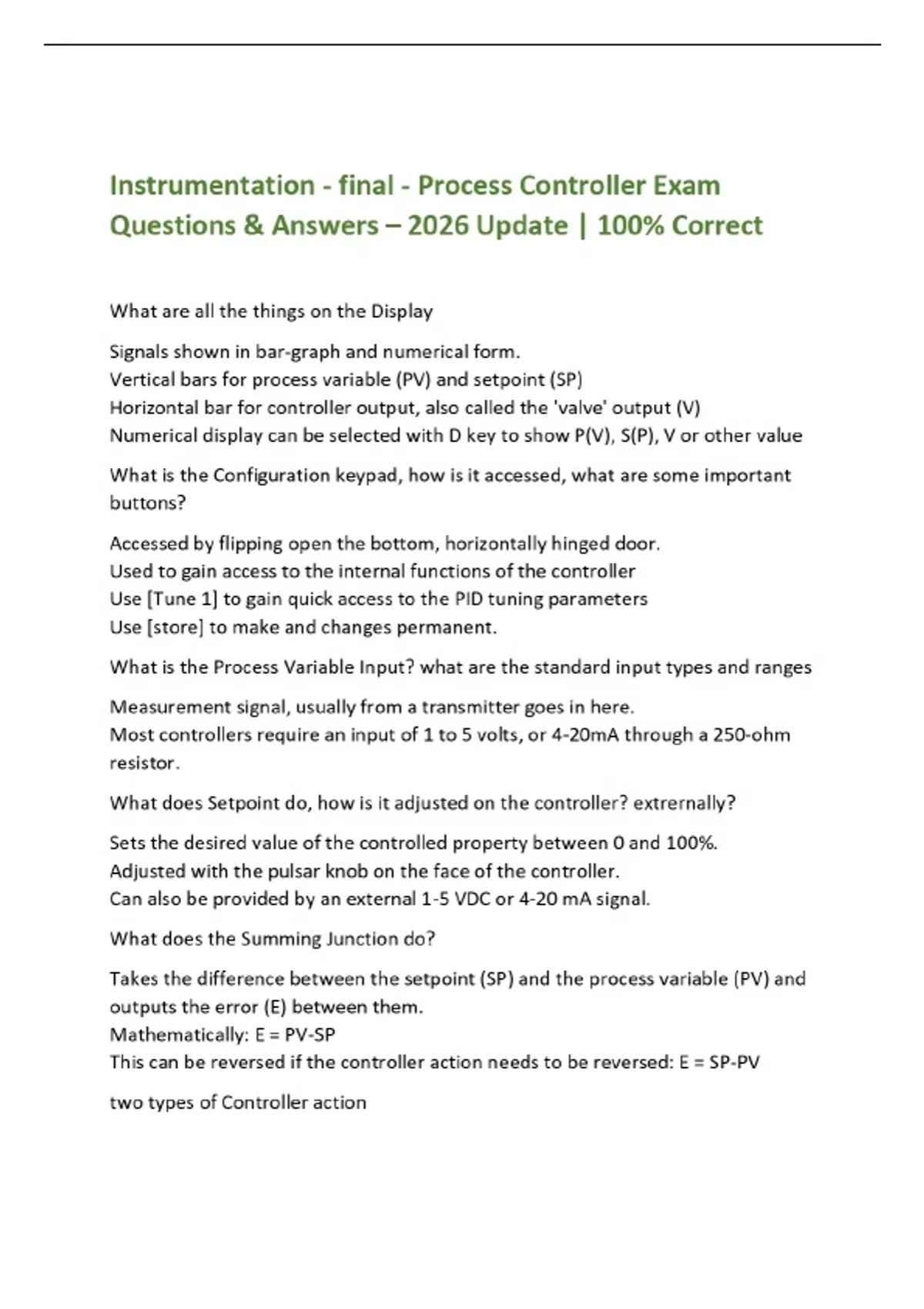

Instrumentation - final - Process Controller Exam Questions & Answers – 2026 Update | 100% Correct
Rating
Sold
-
Pages
5
Grade
A+
Uploaded on
05-06-2026
Written in
2025/2026
Instrumentation - final - Process Controller Exam Questions & Answers – 2026 Update | 100% Correct What are all the things on the Display Signals shown in bar-graph and numerical form. Vertical bars for process variable (PV) and setpoint (SP) Horizontal bar for controller output, also called the 'valve' output (V) Numerical display can be selected with D key to show P(V), S(P), V or other value What is the Configuration keypad, how is it accessed, what are some important buttons? Accessed by flipping open the bottom, horizontally hinged door. Used to gain access to the internal functions of the controller Use [Tune 1] to gain quick access to the PID tuning parameters Use [store] to make and changes
