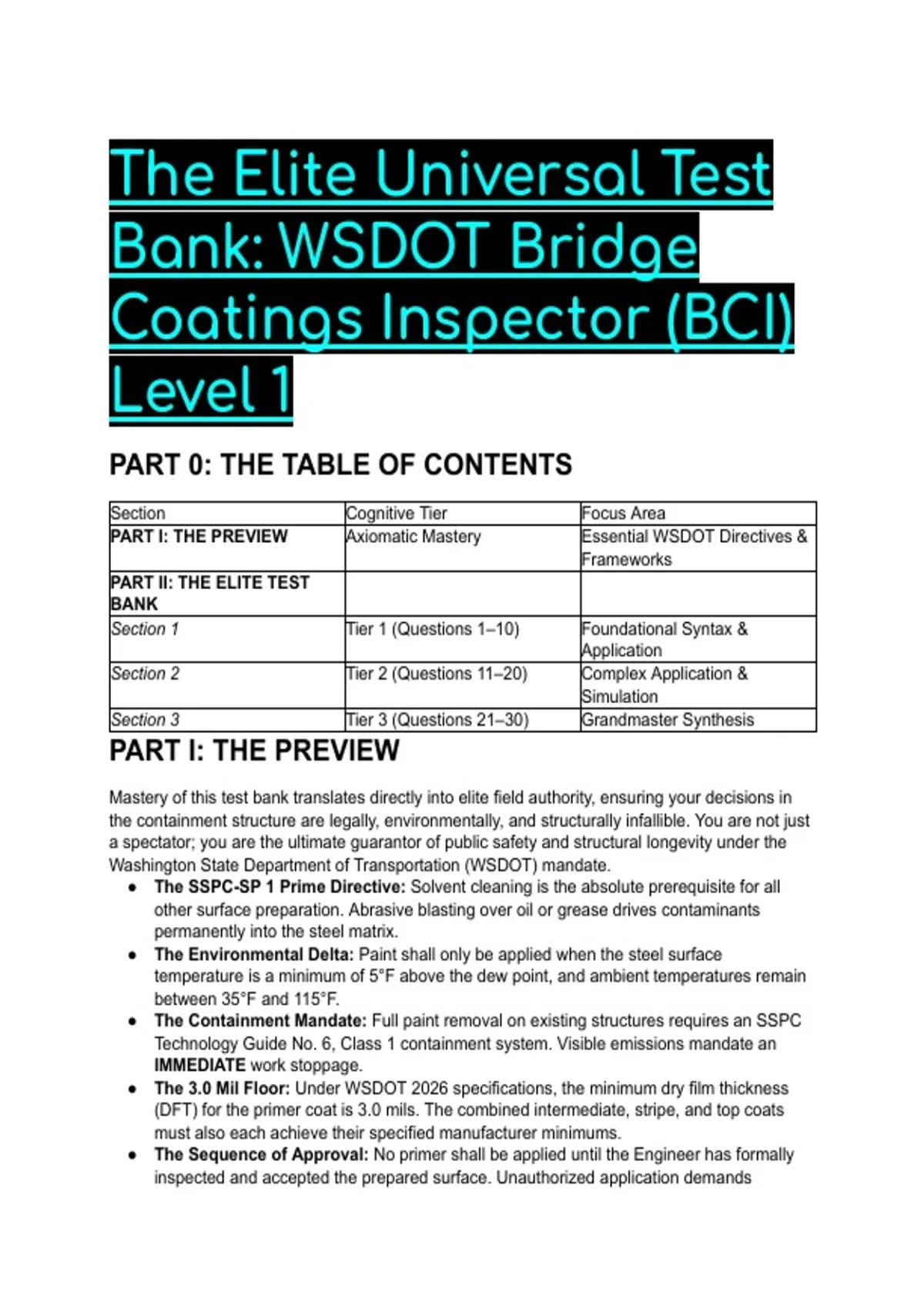

The Elite Universal Test
Bank: WSDOT Bridge
Coatings Inspector (BCI)
Level 1
PART 0: THE TABLE OF CONTENTS
Section Cognitive Tier Focus Area
PART I: THE PREVIEW Axiomatic Mastery Essential WSDOT Directives &
Frameworks
PART II: THE ELITE TEST
BANK
Section 1 Tier 1 (Questions 1–10) Foundational Syntax &
Application
Section 2 Tier 2 (Questions 11–20) Complex Application &
Simulation
Section 3 Tier 3 (Questions 21–30) Grandmaster Synthesis
PART I: THE PREVIEW
Mastery of this test bank translates directly into elite field authority, ensuring your decisions in
the containment structure are legally, environmentally, and structurally infallible. You are not just
a spectator; you are the ultimate guarantor of public safety and structural longevity under the
Washington State Department of Transportation (WSDOT) mandate.
● The SSPC-SP 1 Prime Directive: Solvent cleaning is the absolute prerequisite for all
other surface preparation. Abrasive blasting over oil or grease drives contaminants
permanently into the steel matrix.
● The Environmental Delta: Paint shall only be applied when the steel surface
temperature is a minimum of 5°F above the dew point, and ambient temperatures remain
between 35°F and 115°F.
● The Containment Mandate: Full paint removal on existing structures requires an SSPC
Technology Guide No. 6, Class 1 containment system. Visible emissions mandate an
IMMEDIATE work stoppage.
● The 3.0 Mil Floor: Under WSDOT 2026 specifications, the minimum dry film thickness
(DFT) for the primer coat is 3.0 mils. The combined intermediate, stripe, and top coats
must also each achieve their specified manufacturer minimums.
● The Sequence of Approval: No primer shall be applied until the Engineer has formally
inspected and accepted the prepared surface. Unauthorized application demands
, complete removal at the Contractor's expense.
To establish absolute clarity before entering the assessment, elite inspectors must commit the
WSDOT paint system architectures to memory. The structural integrity of the coating relies on
these precise chemical sequences:
Option Track Primer Phase Intermediate Stripe Phase Top Coat Phase
Phase
Option 1 Inorganic Moisture-Cured Moisture-Cured Moisture-Cured
(Component Zinc-Rich Polyurethane Polyurethane Polyurethane
Based)
Option 2 Inorganic Epoxy Epoxy Polyurethane
(Performance Zinc-Rich
Based)
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: A WSDOT Contractor is preparing to abrasively blast an existing steel bridge girder that
exhibits heavy chalking, localized pack rust, and visible grease stains from an overhead deck
joint. Based on the principles of WSDOT Section 6-07.3(10)E (Surface Preparation - Full Paint
Removal), which action must the Inspector ensure is performed FIRST? A) Power tool cleaning
of the pack rust using SSPC-SP 11 to prevent abrasive media contamination. B) Full
containment installation and immediate Near-White Metal Blast Cleaning (SSPC-SP 10). C)
Solvent Cleaning (SSPC-SP 1) to remove all visible oil, grease, and road tar. D) Dry, oil-free
compressed air blow-down in accordance with ASTM D4285.
● The Answer: C (Solvent Cleaning (SSPC-SP 1) to remove all visible oil, grease, and road
tar.)
● Distractor Analysis:
○ A is incorrect: While SSPC-SP 11 is utilized for areas inaccessible to blasting,
executing this prior to solvent cleaning will physically grind the surface greases
deep into the bare metal profile, contaminating the substrate.
○ B is incorrect: Initiating abrasive blasting (SSPC-SP 10) prior to the extraction of
hydrocarbon contaminants will drive the oils microscopically into the steel's anchor
profile, guaranteeing premature coating failure and delamination.
○ D is incorrect: ASTM D4285 dictates the blotter test for verifying that compressed
air is free of oil and moisture; while a blow-down is required later, it is not the
primary mechanism for extracting heavy surface grease.
The Mentor's Analysis: The preservation of structural steel under the WSDOT mandate is an
exercise in applied chemistry and rigorous isolation. Hydrocarbons act as an absolute barrier to
coating adhesion. When facing a visibly contaminated surface, the immediate priority is the
chemical extraction of oils before any mechanical force is applied. By utilizing SSPC-SP 1
Solvent Cleaning, you bypass the common trap of driving surface contaminants into the
microscopic peaks and valleys of the steel's anchor profile, an error that guarantees premature
delamination. Professional/Academic Intuition: Never blast over grease; SSPC-SP 1 is the
undeniable precursor to all abrasive operations.
Q2: During the preparation of an existing bridge for field coating, the Inspector discovers a
massive accumulation of bird guano and nesting material on the lower flange. According to
WSDOT Section 9-08.5(1), what is the MOST ACCURATE procedure for mitigating this
, biological hazard prior to abrasive blasting? A) Pressure wash the area immediately using water
mixed with a heavy alkaline degreaser. B) Remove the material in the dry, apply a 5.25 percent
sodium hypochlorite solution, hand-scrub, and rinse with clean water. C) Abrasively blast the
biological material off the steel directly into the Class 1 containment system. D) Treat the area
with a complex calcium silicate lead abatement additive to neutralize the acidic guano.
● The Answer: B (Remove the material in the dry, apply a 5.25 percent sodium
hypochlorite solution, hand-scrub, and rinse with clean water.)
● Distractor Analysis:
○ A is incorrect: WSDOT explicitly prohibits the addition of detergents, bleach, or
cleaning agents directly into the pressure washing water stream used for structural
surface cleaning.
○ C is incorrect: Blasting massive biological accumulations creates a highly toxic,
aerosolized biohazard within the containment and violates WSDOT's biological
removal protocols. * D is incorrect: Calcium silicate (Section 9-08.4(2)) is
specifically engineered as a lead abatement additive, not a biological neutralizer.
The Mentor's Analysis: Biological contaminants carry highly corrosive uric acids and
pathogens that threaten both the steel matrix and the respiratory health of the worker. When
facing guano or fungus, the immediate priority is manual dry removal followed by localized
chemical neutralization. By utilizing a 5.25% sodium hypochlorite solution followed by a pure
water rinse, you bypass the novice error of blasting pathogens into the containment atmosphere
and introducing active acids into the blast media. Professional/Academic Intuition:
Biologicals dictate a discrete removal cycle: Dry scrape, hypochlorite scrub, and pure
water rinse before abrasive operations begin.
Q3: An Inspector is evaluating the ambient environmental conditions prior to the application of a
moisture-cured polyurethane intermediate coat. The ambient air temperature is 42°F, the
relative humidity is 55%, the steel surface temperature is 44°F, and the calculated dew point is
41°F. Which conclusion regarding the application is MOST ACCURATE? A) The contractor may
proceed, as all temperatures are above the 35°F minimum threshold. B) The contractor must
halt work; the steel temperature is not a minimum of 5°F above the dew point. C) The contractor
may proceed, as moisture-cured polyurethanes require moisture to cure properly. D) The
contractor must halt work; the relative humidity is below the acceptable threshold for
polyurethanes.
● The Answer: B (The contractor must halt work; the steel temperature is not a minimum of
5°F above the dew point.)
● Distractor Analysis:
○ A is incorrect: While the ambient temperature satisfies the absolute 35°F minimum,
it fundamentally fails the critical dew point delta requirement.
○ C is incorrect: Moisture-cured urethanes rely on atmospheric humidity to cure, but
applying them over active, microscopic condensation (which occurs near the dew
point) causes blistering and catastrophic delamination.
○ D is incorrect: A 55% RH is generally optimal for MCUs; the failure here is strictly
the steel-to-dew-point thermal delta.
The Mentor's Analysis: Condensation is invisible until it ruins a coating system from the inside
out. When facing narrow temperature margins, the immediate priority is calculating the moisture
delta between the substrate and the atmosphere. By utilizing the 5°F buffer rule, you bypass the
common trap of relying solely on ambient air temperature to dictate application windows.
Professional/Academic Intuition: Steel temperature must unconditionally exceed the dew
point by exactly 5°F (or more) to guarantee a dry anchor profile.
