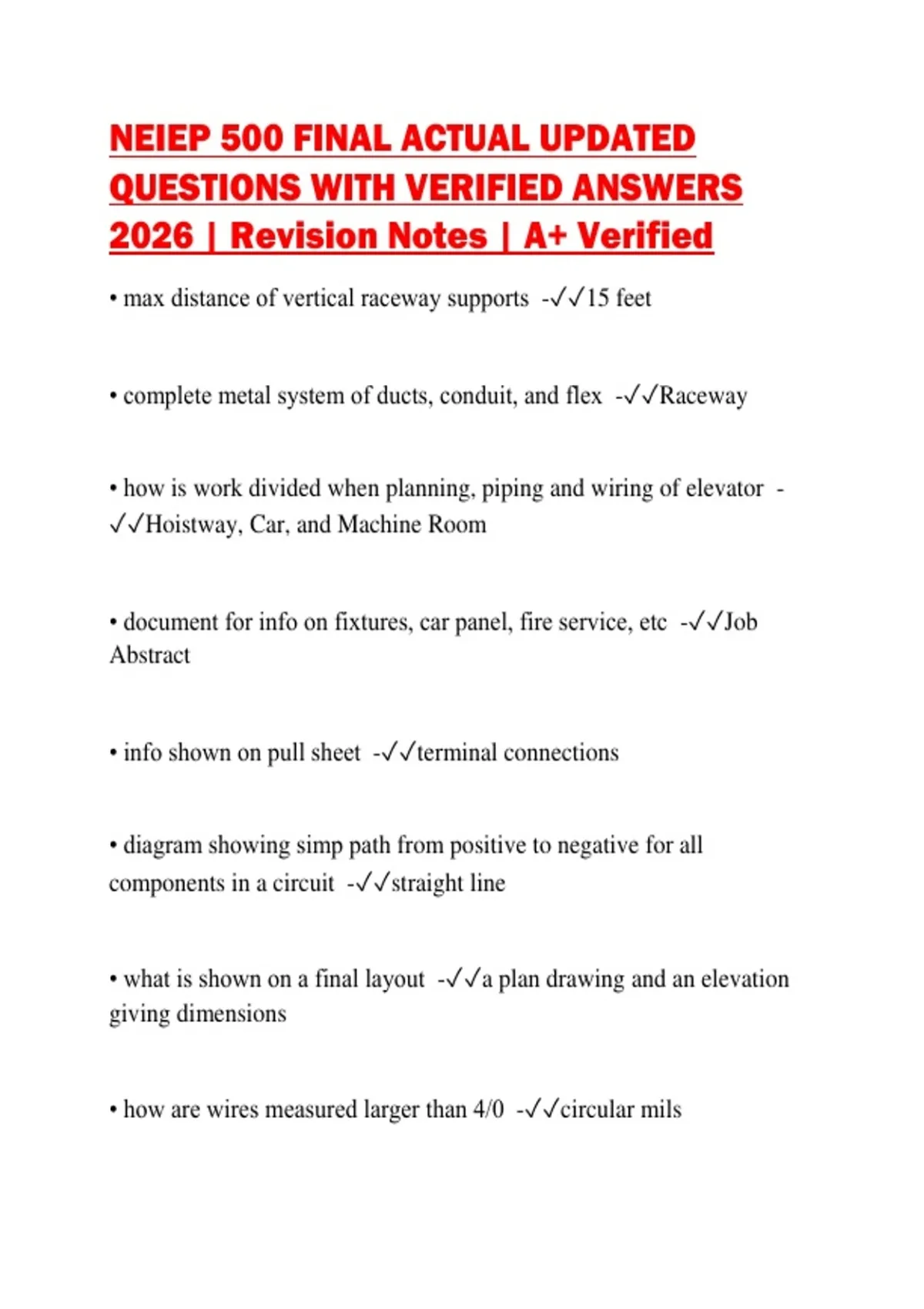

NEIEP 500 FINAL ACTUAL UPDATED
QUESTIONS WITH VERIFIED ANSWERS
2026 | Revision Notes | A+ Verified
• max distance of vertical raceway supports -✓✓15 feet
• complete metal system of ducts, conduit, and flex -✓✓Raceway
• how is work divided when planning, piping and wiring of elevator -
✓✓Hoistway, Car, and Machine Room
• document for info on fixtures, car panel, fire service, etc -✓✓Job
Abstract
• info shown on pull sheet -✓✓terminal connections
• diagram showing simp path from positive to negative for all
components in a circuit -✓✓straight line
• what is shown on a final layout -✓✓a plan drawing and an elevation
giving dimensions
• how are wires measured larger than 4/0 -✓✓circular mils
, • term for current carrying capacity -✓✓Ampacity
• min size wire for lighting circuit -✓✓#14
• wire used for interlock circuit -✓✓rated for 200 c (firewire)
• Smallest wire size used -✓✓#24
• max degrees of bends allowed when bending conduit -✓✓360 degrees
• back-to-back bend reference point -✓✓star
• total degrees in a 3 bend saddle -✓✓120 30-60-30
• min distance b/t vert raceway -✓✓15 ft
• every 100ft in vertical raceway -✓✓Strain supports
• min overhead clearance in machine room for raceways -✓✓7ft
• vert raceway longer than 100 ft need -✓✓1/4 gap
