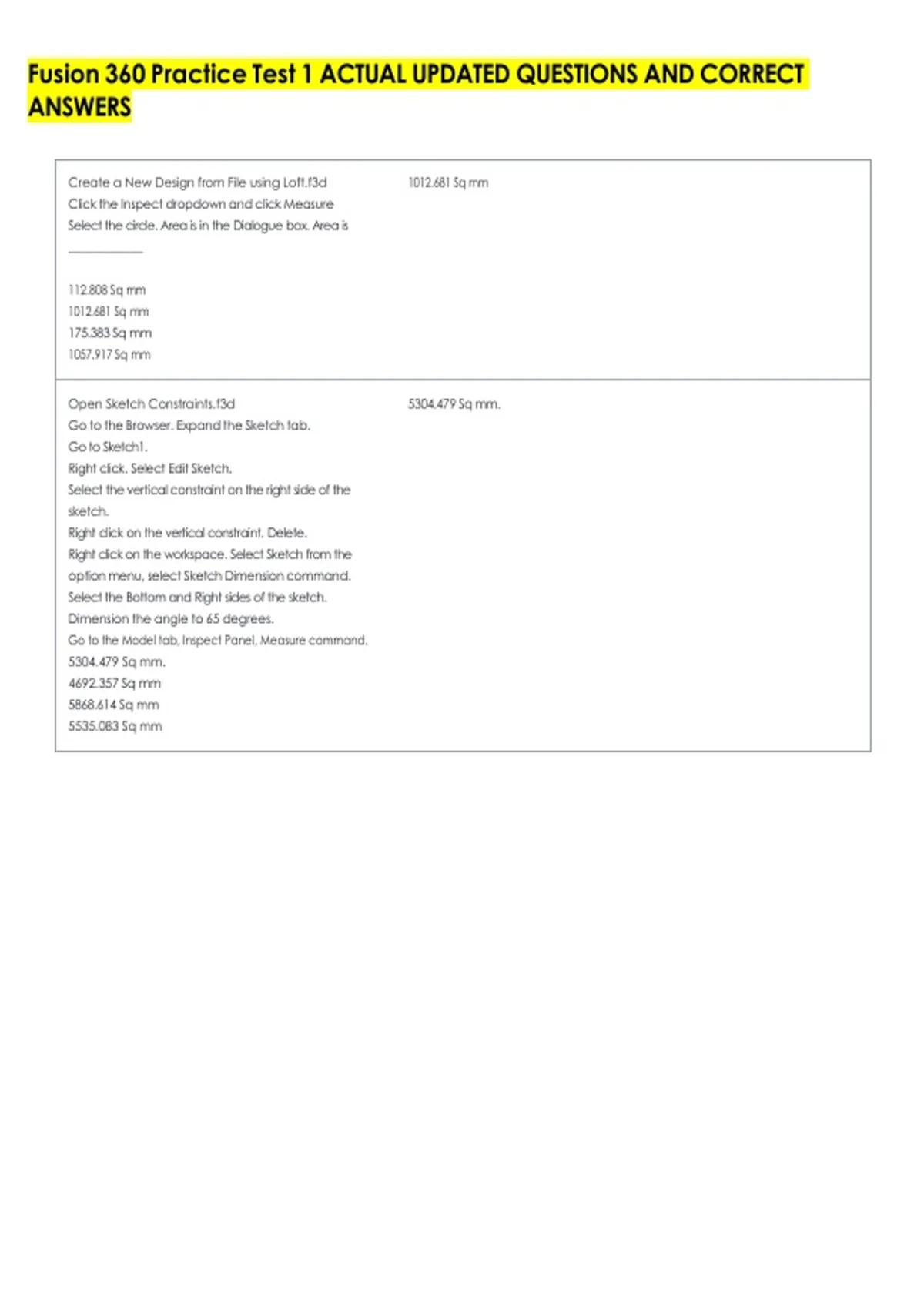

Fusion 360 Practice Test 1 ACTUAL UPDATED QUESTIONS AND CORRECT
ANSWERS
Create a New Design from File using Loft.f3d 1012.681 Sq mm
Click the Inspect dropdown and click Measure
Select the circle. Area is in the Dialogue box. Area is
_________________
112.808 Sq mm
1012.681 Sq mm
175.383 Sq mm
1057.917 Sq mm
Open Sketch Constraints.f3d 5304.479 Sq mm.
Go to the Browser. Expand the Sketch tab.
Go to Sketch1.
Right click. Select Edit Sketch.
Select the vertical constraint on the right side of the
sketch.
Right click on the vertical constraint. Delete.
Right click on the workspace. Select Sketch from the
option menu, select Sketch Dimension command.
Select the Bottom and Right sides of the sketch.
Dimension the angle to 65 degrees.
Go to the Model tab, Inspect Panel, Measure command.
5304.479 Sq mm.
4692.357 Sq mm
5868.614 Sq mm
5535.083 Sq mm
, Create a New Design from File using pattern.f3d 11.385 g
Go to the Model tab, Modify panel, Fillet command.
Select all edges along the top of the model.
Select the radius to 1 mm.
Right click on the model in the Browser, choose
Properties.
Group of answer choices
11.438 g
11.159 g
11.385 g
11.324 g
Create a New Design from File using Pattern.f3d 11.604 g
Go to Model tab, Create panel, Pattern option, Circular
Pattern command.
Pick the small hole.
Select the axis option
Pick the large hole
Choose to have 6 holes. OK
Go to the Browser. Right click on Body 1 and select
Properties. Read the Mass from the box.
11.600 g
10.998 g
11.602 g
11.604 g
Create a New Design from File using Shell.f3d 10.441 g
Go to the Model tab, Modify panel, Shell command.
Select the bottom surface.
Set Inside Thickness to 1.00 mm
Go to the Browser and right click on the solid body.
Select the properties option.
8.653 g
10.441 g
1.142 g
12.913 g
Create a New Design from File using Extrude.f3d 4710.00 g
Go to the Model tab, Create panel, Extrude command.
Select the inside of the rectangle.
Give the extrusion depth to be 100 mm.
Go to the browser.
Expand the Bodies, right click on the body and select
properties
47.10 g
4710.00 g
5181 g
471.00 g
ANSWERS
Create a New Design from File using Loft.f3d 1012.681 Sq mm
Click the Inspect dropdown and click Measure
Select the circle. Area is in the Dialogue box. Area is
_________________
112.808 Sq mm
1012.681 Sq mm
175.383 Sq mm
1057.917 Sq mm
Open Sketch Constraints.f3d 5304.479 Sq mm.
Go to the Browser. Expand the Sketch tab.
Go to Sketch1.
Right click. Select Edit Sketch.
Select the vertical constraint on the right side of the
sketch.
Right click on the vertical constraint. Delete.
Right click on the workspace. Select Sketch from the
option menu, select Sketch Dimension command.
Select the Bottom and Right sides of the sketch.
Dimension the angle to 65 degrees.
Go to the Model tab, Inspect Panel, Measure command.
5304.479 Sq mm.
4692.357 Sq mm
5868.614 Sq mm
5535.083 Sq mm
, Create a New Design from File using pattern.f3d 11.385 g
Go to the Model tab, Modify panel, Fillet command.
Select all edges along the top of the model.
Select the radius to 1 mm.
Right click on the model in the Browser, choose
Properties.
Group of answer choices
11.438 g
11.159 g
11.385 g
11.324 g
Create a New Design from File using Pattern.f3d 11.604 g
Go to Model tab, Create panel, Pattern option, Circular
Pattern command.
Pick the small hole.
Select the axis option
Pick the large hole
Choose to have 6 holes. OK
Go to the Browser. Right click on Body 1 and select
Properties. Read the Mass from the box.
11.600 g
10.998 g
11.602 g
11.604 g
Create a New Design from File using Shell.f3d 10.441 g
Go to the Model tab, Modify panel, Shell command.
Select the bottom surface.
Set Inside Thickness to 1.00 mm
Go to the Browser and right click on the solid body.
Select the properties option.
8.653 g
10.441 g
1.142 g
12.913 g
Create a New Design from File using Extrude.f3d 4710.00 g
Go to the Model tab, Create panel, Extrude command.
Select the inside of the rectangle.
Give the extrusion depth to be 100 mm.
Go to the browser.
Expand the Bodies, right click on the body and select
properties
47.10 g
4710.00 g
5181 g
471.00 g
